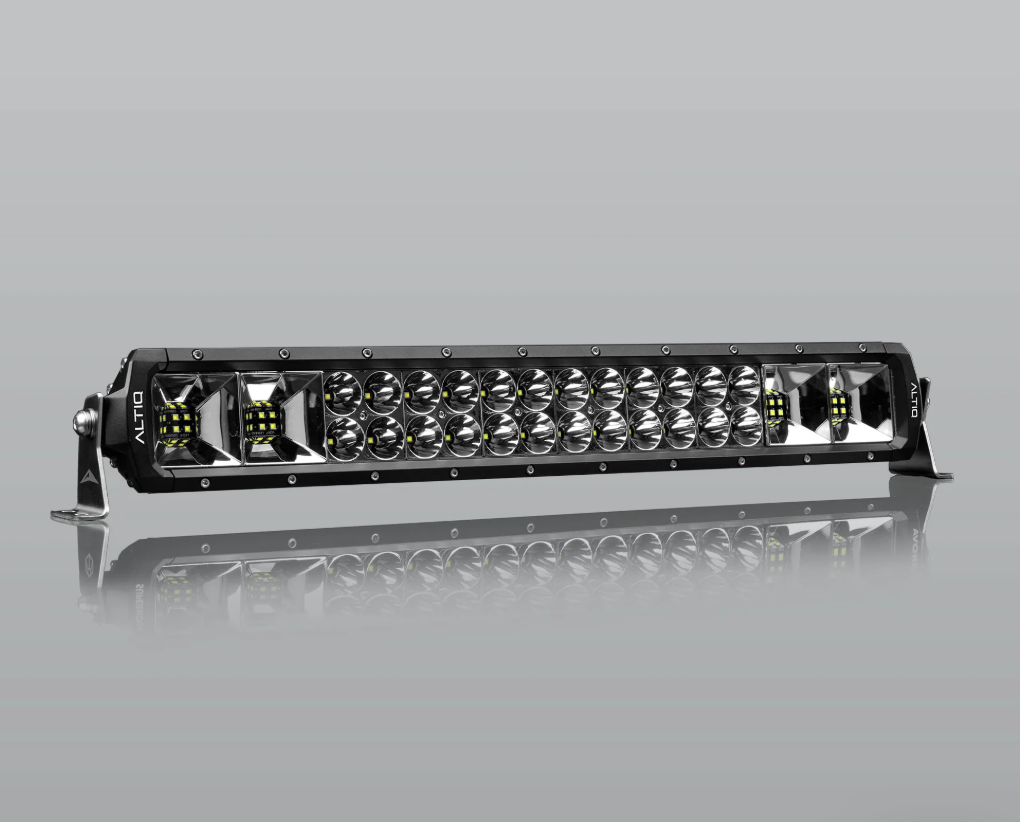

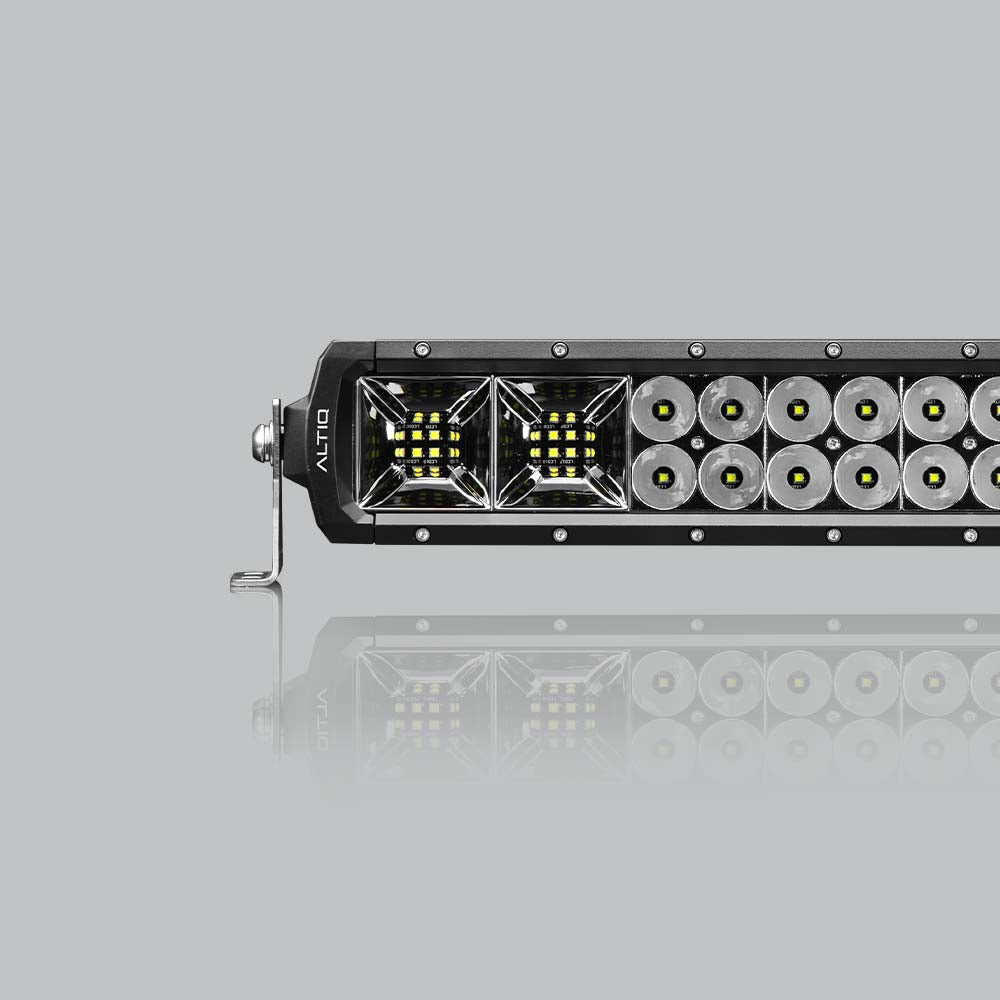

ALTIQ™ 22 INCH Hybrid Double Row Light Bar

  • Sale
  • Regular price R 9,999.00
  • Sold Out
Tax included. Shipping calculated at checkout.


New Hybrid Double Row Light bar

Take Command of the Night with Wider Coverage and Further Distance

Putting light where you need it most, our Hybrid Lights Bars take our superior multi-output reflector design to the next level! With our complete array of ultra-wide flood and hyper spot optics, you will not find a more optimal output pattern to light up the tightest tracks, widest trails and longest highways.

True to Altiq standard, the Hybrid is constructed from only the best components and materials, giving you a light bar that not only has the best build quality of the box but stays that way for life.





Combination Output

120º Flood + Combo Beam Pattern





Superior Formula

With our Multi Reflector Design, you no longer need to choose between spot and flood. We've combined the best of both for unparalleled versatility on all roads!

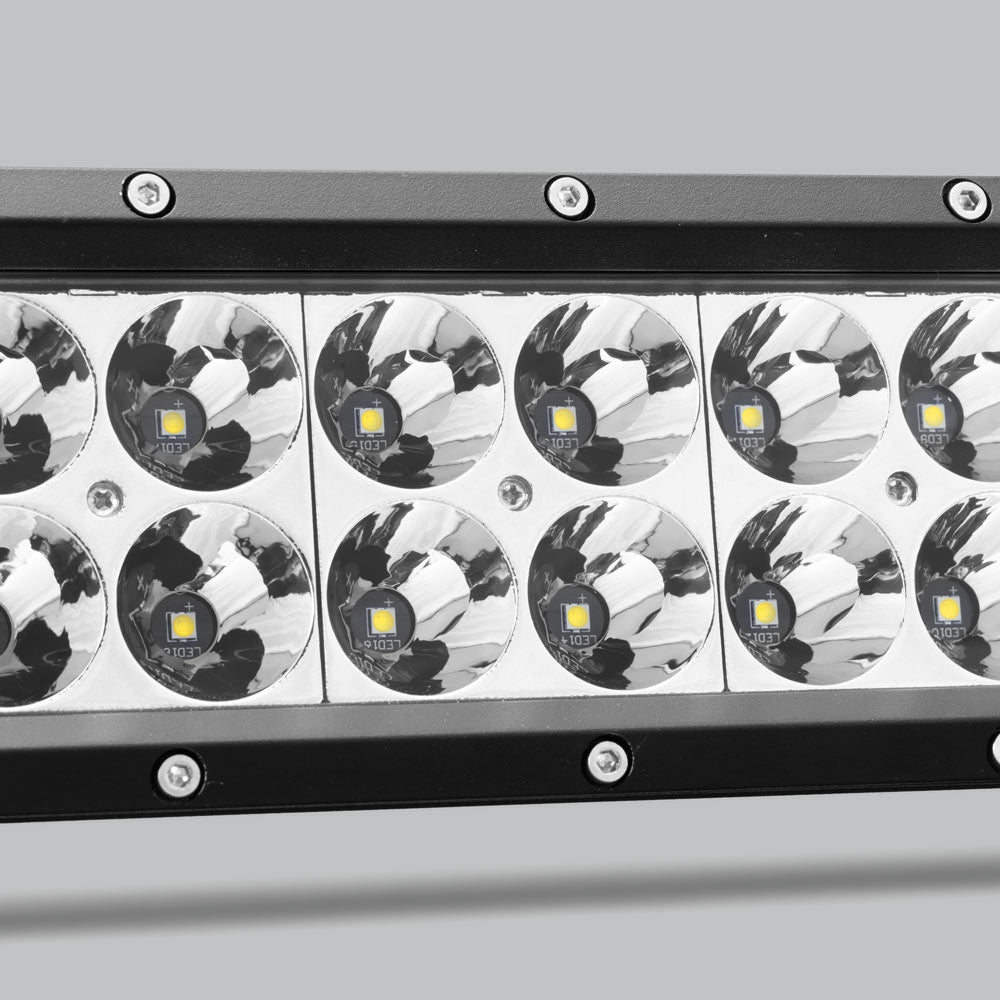

Spot Reflector - Essential for illuminating further down the road, providing more reaction time and better braking distances on highways. Perfect for long-distance visibility and high-speed conditions.

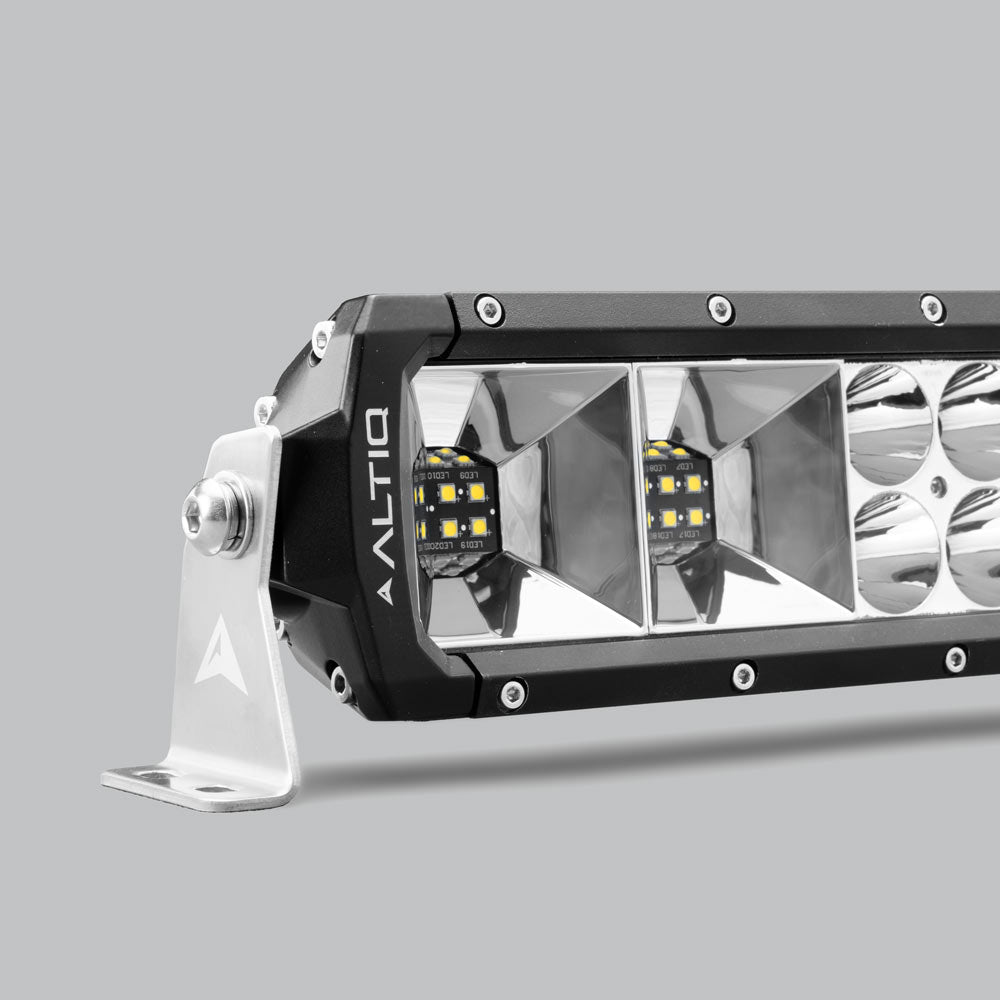

Scene Reflector - Designed to project a wide flood beam, ideal for illuminating the immediate surroundings. The Scene Reflectors provide an ultra-wide, even spread of light, making them perfect for off-roading, navigating corners, and technical driving. This design ensures you can see any hazards lurking off the road, where animals and obstacles often pose a threat.









Mount Anywhere

Ready to tackle the harshest roads, the Hybrid comes with 2 mounting options.

316 Marine Grade Stainless Steel side brackets

  • Unbreakable 3mm brushed stainless steel side brackets with full 360° rotation for dialing in the perfect angle + 2 mounting holes per bracket for optimal security.

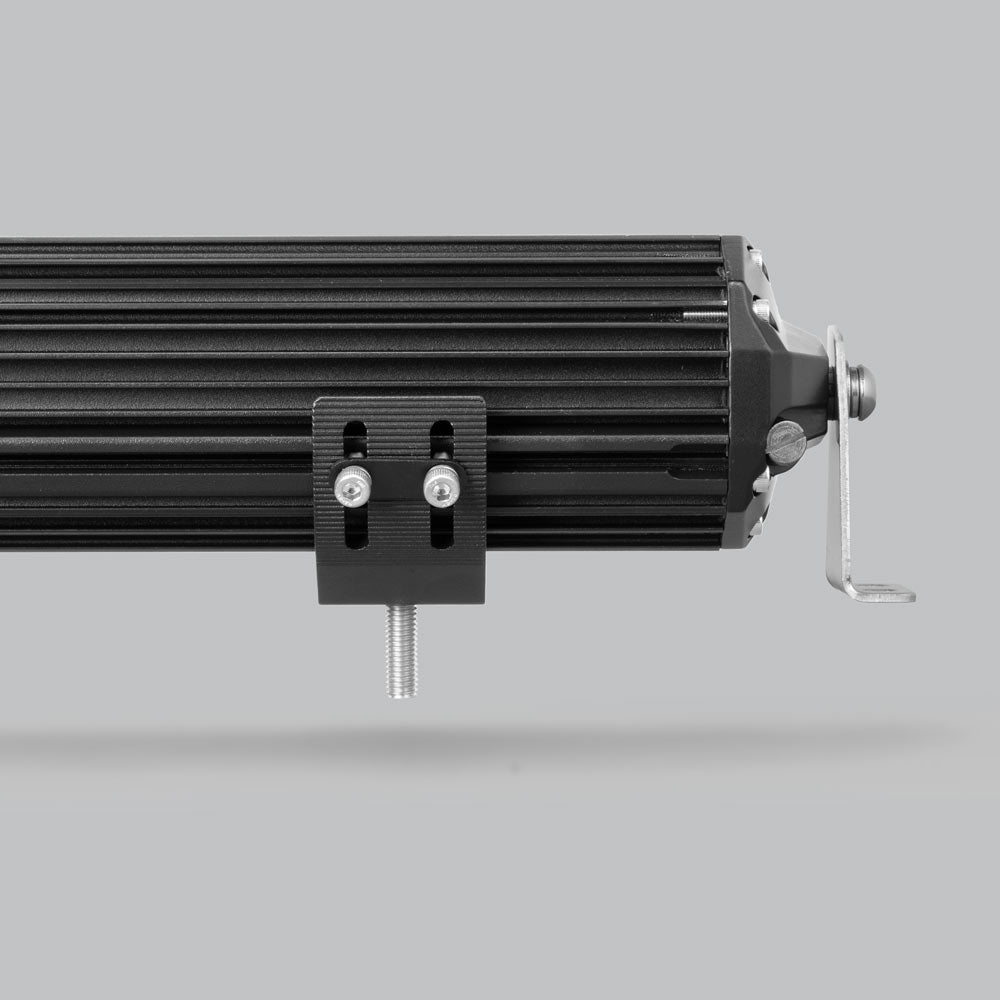

Rear Sliding Undermount Brackets

  • High-pressure cast alloy brackets that secure to the rear of the Hybrid Housing. The Undermount brackets slide along the Hybrid's rear channel and allow for tilting adjustments to the lightbar. Tightening the bolts will lock the teeth of the bracket to the Hybrid's housing, ensuring a secure mounting point that will withstand the harshest corrugations.









Sealed, locked, and loaded

With an IP69K rating, the Hybrid has the highest water and dustproof rating available. Our 3-stage waterproofing will stand up to the toughest conditions, whether that be rain, hail or 3000PSI Water jetting.

It's not only the outside elements that the Hybrid is armed against. Equipped with a Gore-Tex breather valve, internal atmosphere pressure is equalized, preventing seal failure and inhibiting condensation.









Wiring Harness Included

Fully Assembled, our Single Fast Fit Wiring Harness includes:

  • Battery Terminals, Fuse, Relay, In-Cabin Isolation Switch, and Deutsch Output Terminals
  • Microprocessor for Negative / Positive Switched Vehicles
  • H4 + HB3 High Beam Adapters for Halogen High Beam Globes









The Altiq Standard



Features

  • 4 x Scene Reflectors - Ultra Wide Flood Output
  • 5º Hyper spot + wide spread flood parabolic reflectors - Seamless Flood to Spot Output
  • Side and Undermounts Included - Mount anywhere
  • IP69K Waterproof - Highest dust & waterproof Rating - pressure wash safe.
  • General Electric Lexan lens - Near indestructible lens that stays clear as intended and does not haze over or yellow. No protective covers needed.
  • DuPont black paint - Black that stays black - highest chip resistant coating.
  • Gore-Tex breather valve - 100% pressure equalisation and moisture venting.
  • Marine Grade 316 Stainless bracket - more rigid and durable
  • CISPR 25 Class 3 Certified - Zero radio/communication interference.
  • 5700 Kelvin colour temperature - Daylight equivalent for low eye strain.
  • Fast Fit Wiring Harness - Easy plug and play installation.
  • 10 Year Aussie Backed Warranty - No strings, our Light Bars are made to last!











SPECIFICATIONS:

LUX DISTANCE 1 LUX @ 696M
LUMENS 9900
LENS GE Lexan Lens 3mm - Indestructible
LEDs 40 X Genuine 5W OSRAM P9 Chips
FINISH DuPont Midnight Paint
FASTENERS 316L Marine Stainless
WATERPROOF RATING IP68 - IP69K
WARRANTY 10 Years
INPUT VOLTAGE 10-30V DC
CURRENT DRAW 7.58A @12V
INCLUDED WIRING HARNESS 14 Gauge Dual DT Output, Negative and Positive switched headlight compatible
COLOUR TEMPERATURE 5700K @ 82+ CRI
WEIGHT 1.76KG (including brackets)





Features:

  • 4 x Scene Reflectors - Ultra Wide Flood Output
  • 5° Hyper spot parabolic reflectors - Further Distance Reached
  • Side and Undermounts Included - Mount Anywhere
  • IP69K Waterproof - Highest Dust & Waterproof Rating - Pressure wash safe.
  • General Electric Lexan lens - Near Indestructible lens that stays clear as intended and does not haze over or yellow. No protective covers needed.
  • DuPont black paint - Black that stays black - highest chip resistant coating.
  • Gore-Tex breather valve - 100% pressure equalisation and moisture venting.
  • Marine Grade 316 Stainless bracket - more rigid and durable
  • CISPR 25 Class 3 Certified - Zero Radio/communication interference.
  • 5700 Kelvin colour temperature - Daylight equivalent for low eye strain.
  • Fast Fit Wiring Harness - Easy plug and play  installation.
  • 10 Year Warranty - No strings, our Light Bars are made to last!





Dimensions:





What's included:

1 x Altiq Hybrid - Double Row LED Light Bar
2 x Stainless Steel Side Mounting Brackets

2 x Sliding Rear Undermount Brackets

1 x Stainless Steel Mounting Fastener Kit
1 x Fast Fit Single Wiring Harness - Direct Install with a fully configured harness. Battery Terminals, Fuse, Relay, In-Cabin Isolation Switch, and H4 + HB3 high beam connections.
