Ford Ranger/Everest Level 2 High Beam Adapter
The Next-Gen Ford Ranger/Everest Level 2 High Beam Adapter offers a seamless solution for connecting auxiliary lights to your vehicle’s high beam circuit. Designed specifically for models with LED reflector headlights, this adapter simplifies the process of integrating additional lighting, ensuring compliance with ADR regulations.
Key Features:
• Easy Installation: Connects directly to the high beam signal point in the footwell, eliminating the need for splicing or extensive modifications.
• ADR Compliant: Ensures auxiliary lights activate only with the high beams, meeting Australian Design Rules requirements.
• Vehicle Compatibility: Specifically engineered for Level 2 Next-Gen Ford Ranger and Everest models, ensuring a perfect fit.
High Beam Signal in 6 Easy Steps – No Guesswork Needed
-
Run the exposed end of your ALTIQ™ Piggy Back Adapter through a suitable passenger-side firewall grommet.
-
Remove the passenger footwell kick panel to access the internal wiring loom.
-
Locate the clearly labelled “HIGH BEAM SIGNAL” wire just behind the panel.
-

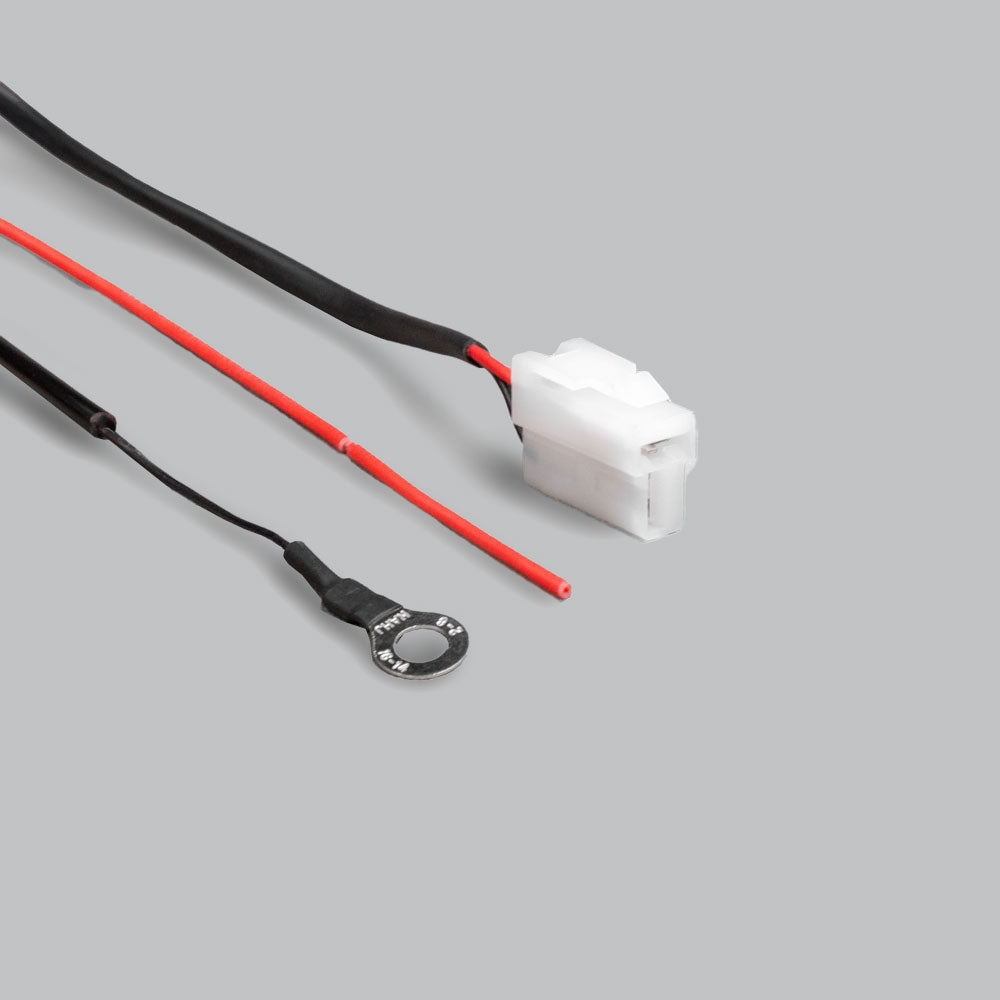

Connect the red wire from your adapter to the high beam signal wire.
-
Connect the black ring terminal to a solid ground point behind the kick panel or nearby chassis bolt.
-
Plug your ALTIQ Fast Fit Harness into the T-Connector, and you're good to go.
Simple, clean, and engineered for durability—just the way we do things at ALTIQ.
What's included:
Adapter Only:

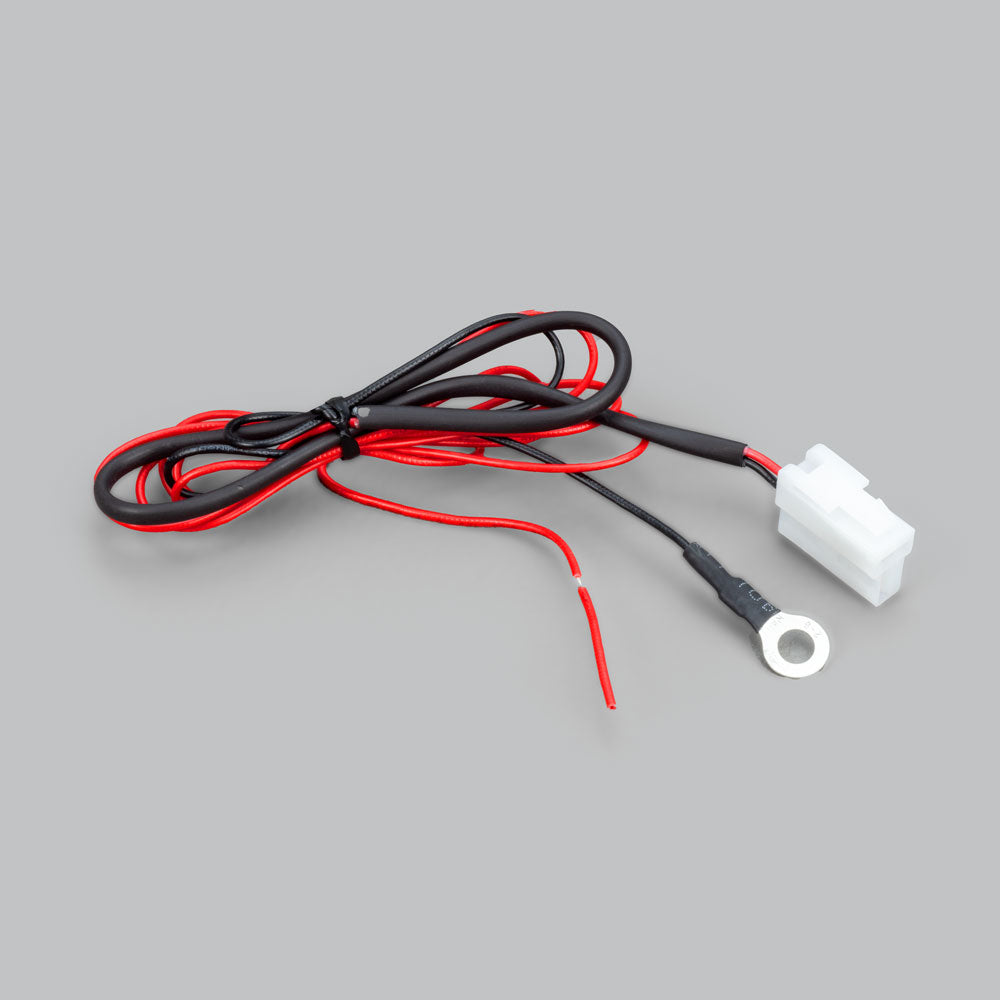

1 x ALTIQ Ford Ranger / Everest Next Gen (Level 2 LED Headlights) Piggy Back Adapter
Ford Ranger/Everest PX2/3 High Beam Adapter
Zero Cutting. Factory Fitment.

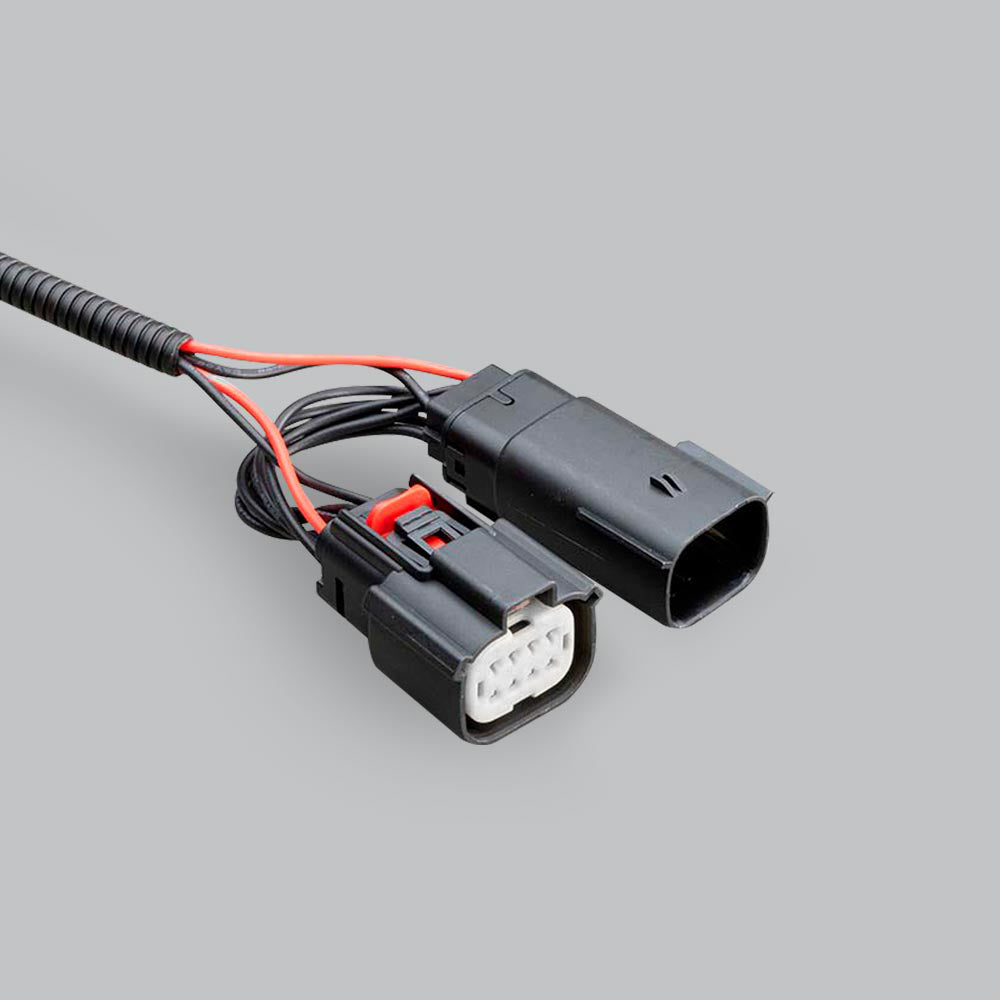

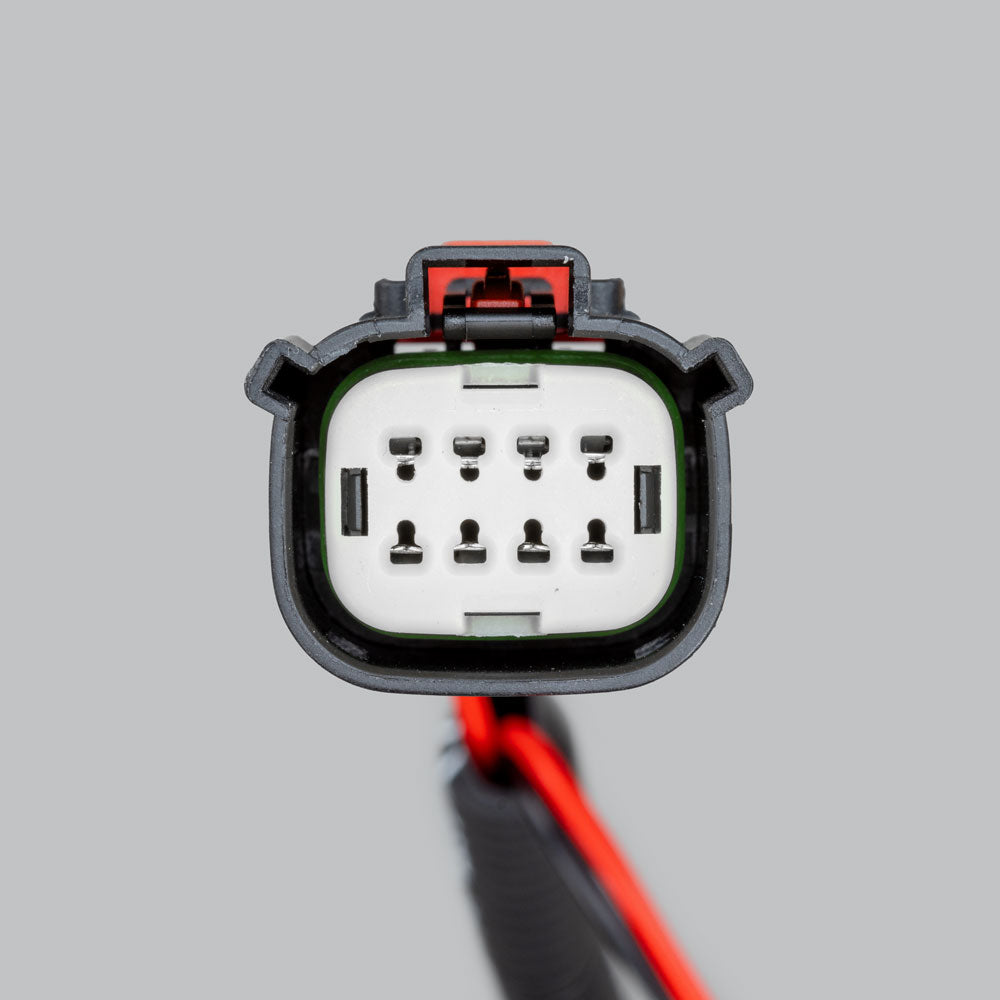

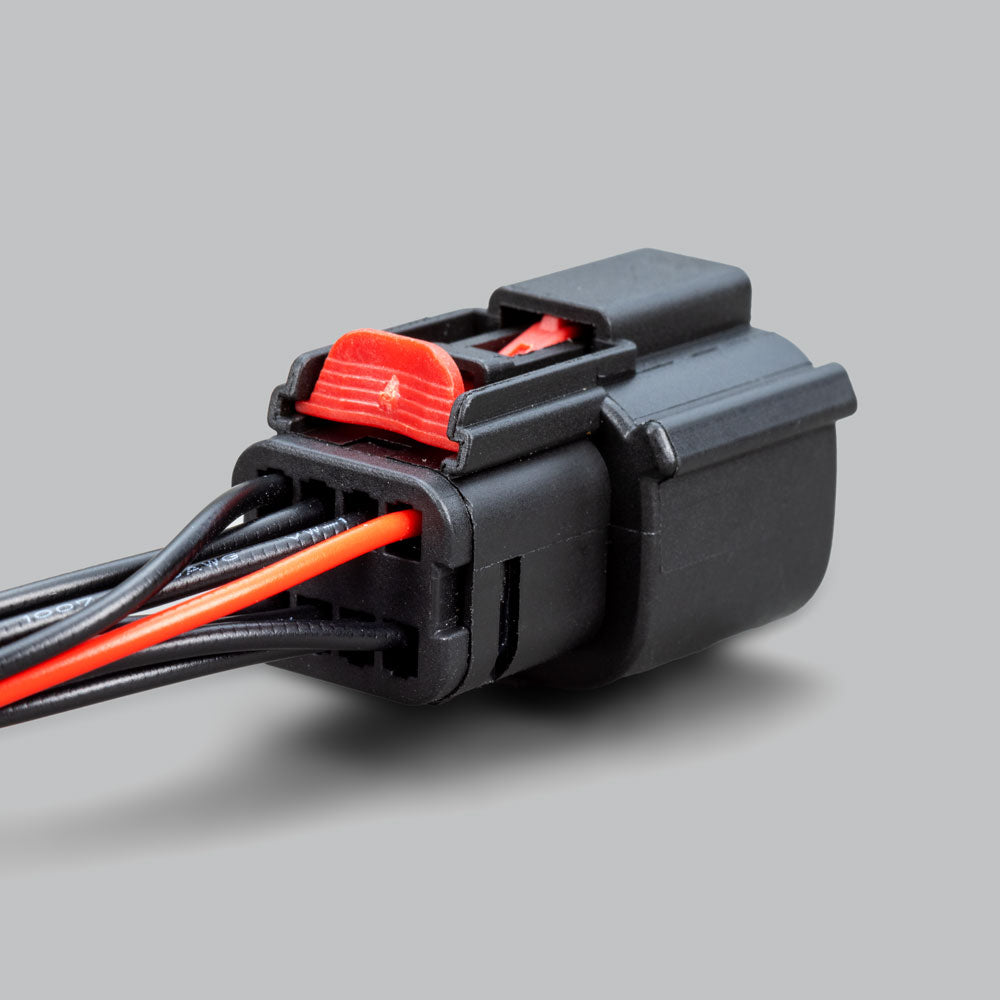

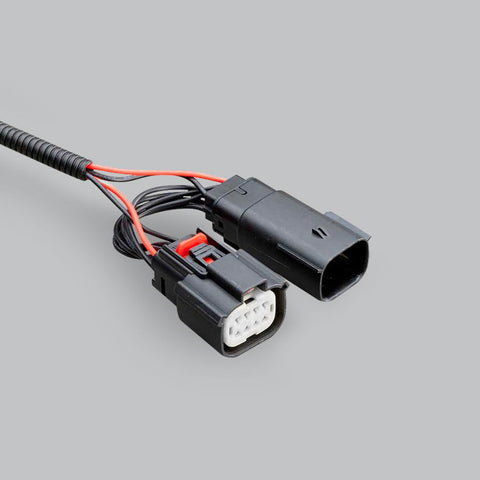

Wiring in driving lights on your PX2 or PX3 Ford Ranger or Everest? This Plug & Play High Beam Piggyback Adapter is the cleanest way to connect to your high beam circuit—no cutting, no splicing, and no tampering with factory wiring.
Designed specifically for these platforms, this adapter plugs directly inline with your OEM headlight connector, giving you a reliable signal to trigger your relay. It’s fast to fit, fault-free, and made for the real world.
✅ Suits Ford Ranger PX2, PX3 and Ford Everest models
✅ Plug & play install – no cutting, soldering, or wiring guesswork
✅ Preserves factory wiring and vehicle warranty
✅ Compatible with ALTIQ harnesses and most 12V relay systems
✅ Sealed and built to handle heat, dust, and vibration
Fits - Ford Ranger PX2, PX3, Ranger, Raptor, Everest.
What's included:
Adapter Only:

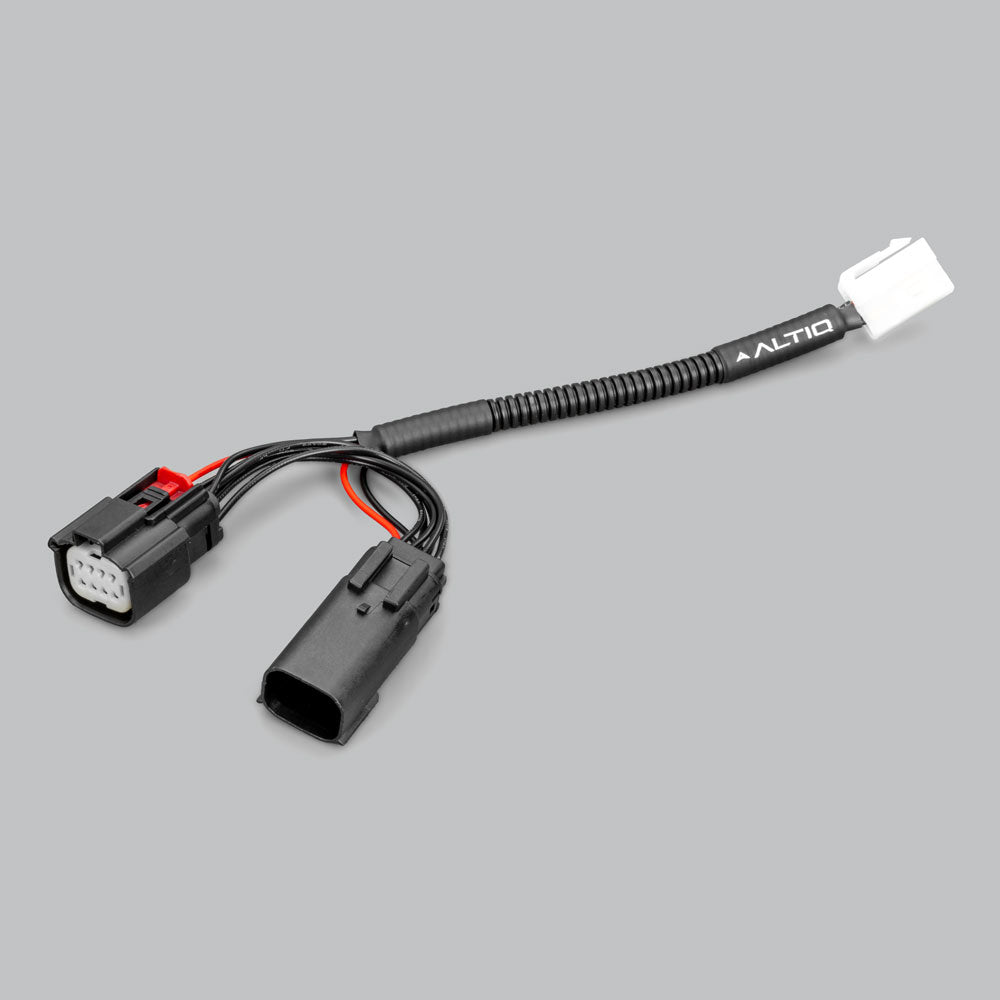

1 x ALTIQ Ford Ranger / Everest PX2 & PX3 Piggy Back Adapter
