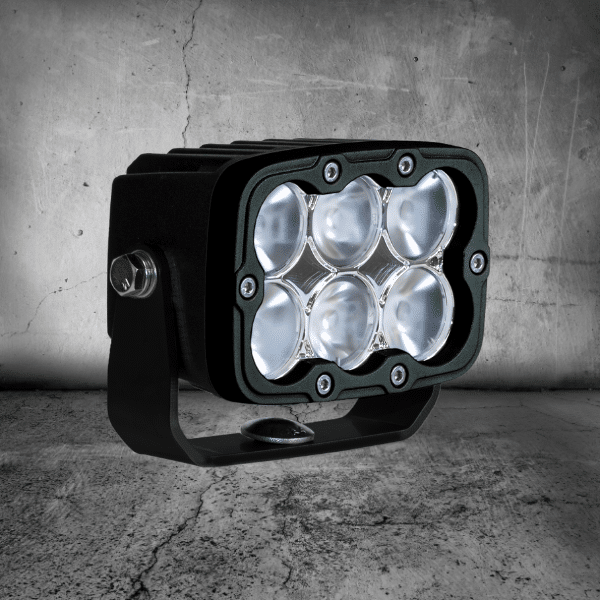

ATOM 25W LED Work Lamps have proved their high performance and rugged construction in some of the most harsh environments. The ATOM covers a wide range of applications from work lights on 4WD’s and light vehicles to lighting stairways, gangways and service areas on large machines, or additional lighting to camp areas. Its high light output relative to size, along with its IP69 waterproof rating, makes it extremely versatile.
Product Specifications
Wattage
25 Watt
Light Source
6 x Hi-output LED’s
Light Output (raw)
2,900 Lumens
Light Output (effective)
2,328 Lumens
Voltage
9-36V
Current Draw
1A
Operating Temperature
-40 deg C to +80 deg C
Waterproof Rating
IP69
Connector Type Plugs
2 Pin Deutsch
Housing
Die-Cast Alloy
Inner Lens Construction
Polycarbonate
Brackets
3mm Stainless Steel
Colour Temperature
3000k, 4000k or 5700k
Lifespan
50,000 Hours
Dimensions
92 x 88 X 58 mm
Net Weight
460g
EMC Rating
CISPR 25 Class 3
Mounting Suitable
Upright or Pendant Mount
Beam Type
Wide Flood or Euro Beam
Warranty
5 Years
Part Numbers
Product type
Product number

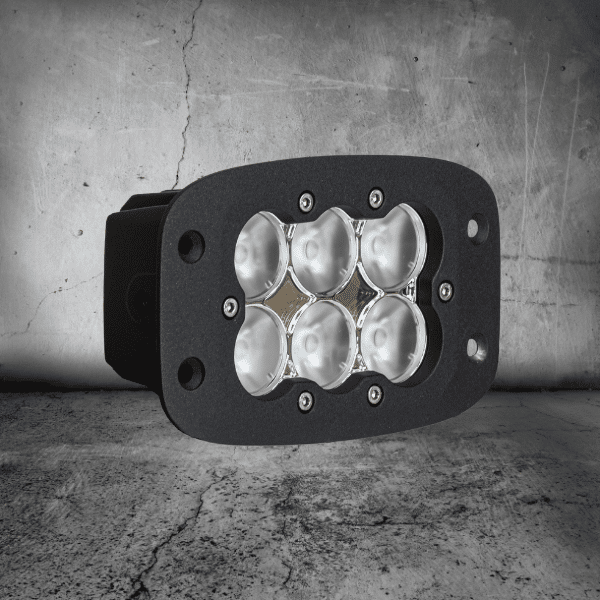

Wide Flood - Recessed/Black
DVA25LEDWF/RB
Euro Beam - Recessed/Black
DVA25LEDEU/RB
Wide Flood/Black
DVA25LEDWF/B
Euro Beam/Black
DVA25LEDEU/B
Wide Flood - Recessed/Chrome Rim
DVA25LEDWF/RC
Wide Flood - Chrome Rim
DVA25LEDWF/C
Euro Beam - Recessed/Chrome Rim
DVA25LEDEU/RC
Euro Beam - Chrome Rim
DVA25LEDEU/C
