For Operators Who Don’t Settle for less than Daylight
When the job demands total visibility—not just ahead, but all around—you need lighting that doesn’t just perform, it dominates.
The ALTIQ™ Commander Scene Light Bars are engineered for serious ultra-wide flood illumination, casting an uncompromising 120° beam that saturates your surroundings with clean, even light. No spots. No dead zones. Just a full, high-output flood that turns night into a usable workspace.
Perfect for canopy setups, rear bar lighting, utility trays, camp sites, and emergency response rigs, the Commander is built to thrive in real-world conditions—where shadows slow you down and visibility is everything.

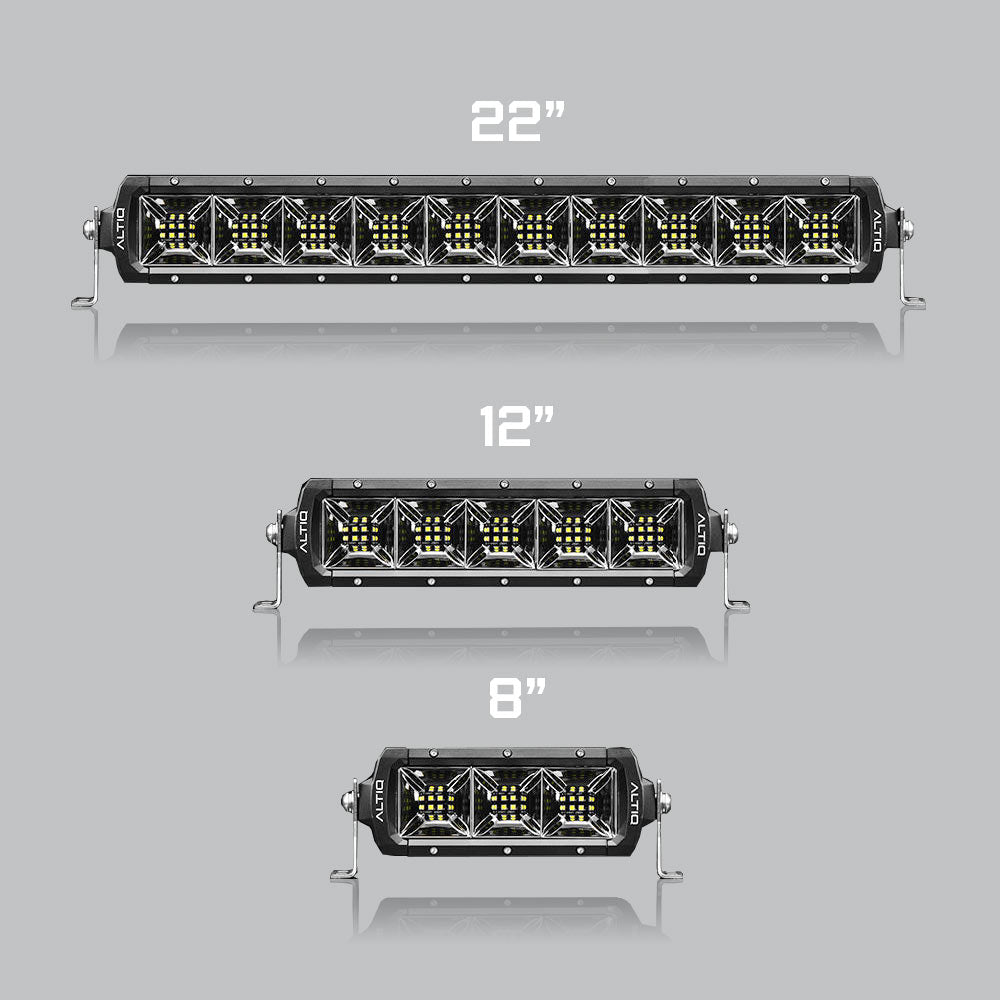

Available in 8", 12", and 22" lengths, each bar is built with high-output LEDs, advanced optical control, and ALTIQ-grade durability that laughs in the face of dust, water, and vibration.
- Renowned ALTIQ™ build quality
- IP69K Waterproof - Pressure washer safe
- Zero RF noise
- Wide 10-30V DC Input
- Indestructible GE Lexan Lens
- Side End mount brackets + Under mount, sliding track brackets included
120° OF PURE FLOOD
Unlock a complete wall of light with zero hotspots from our scene reflectors
COMMANDER 12" - OUTPUT
Super compact, huge 6100 lumen performance.
COMMANDER 22" - OUTPUT
Super compact, huge 9500 lumen performance.
BOTH BRACKETS INCLUDED.

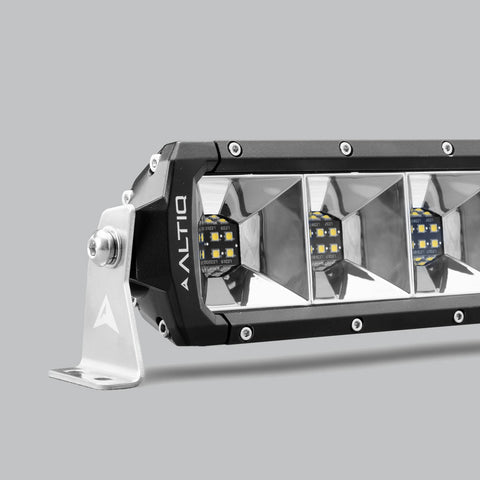

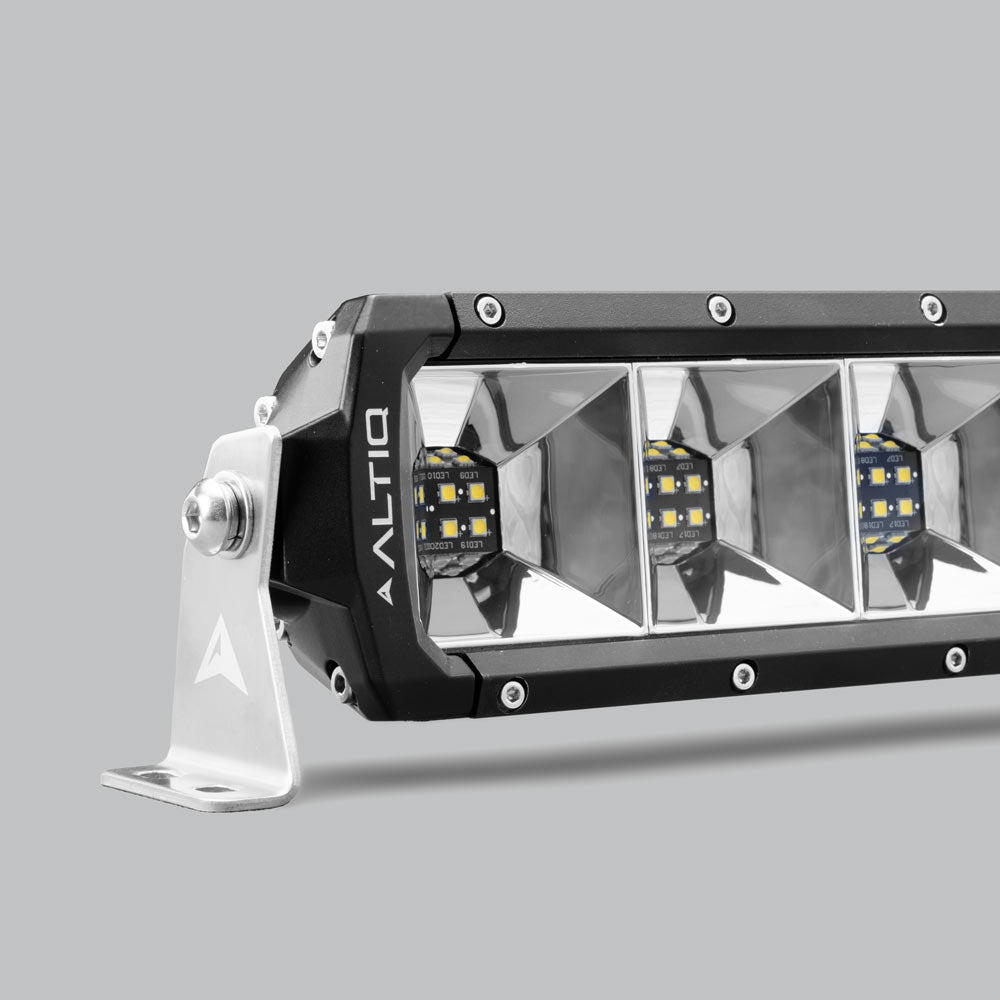

316 MARINE GRADE STAINLESS STEEL SIDE BRACKETS
-
Unbreakable 3mm brushed stainless steel side brackets with full 360° rotation for dialing in the perfect angle + 2 mounting holes per bracket for optimal security.

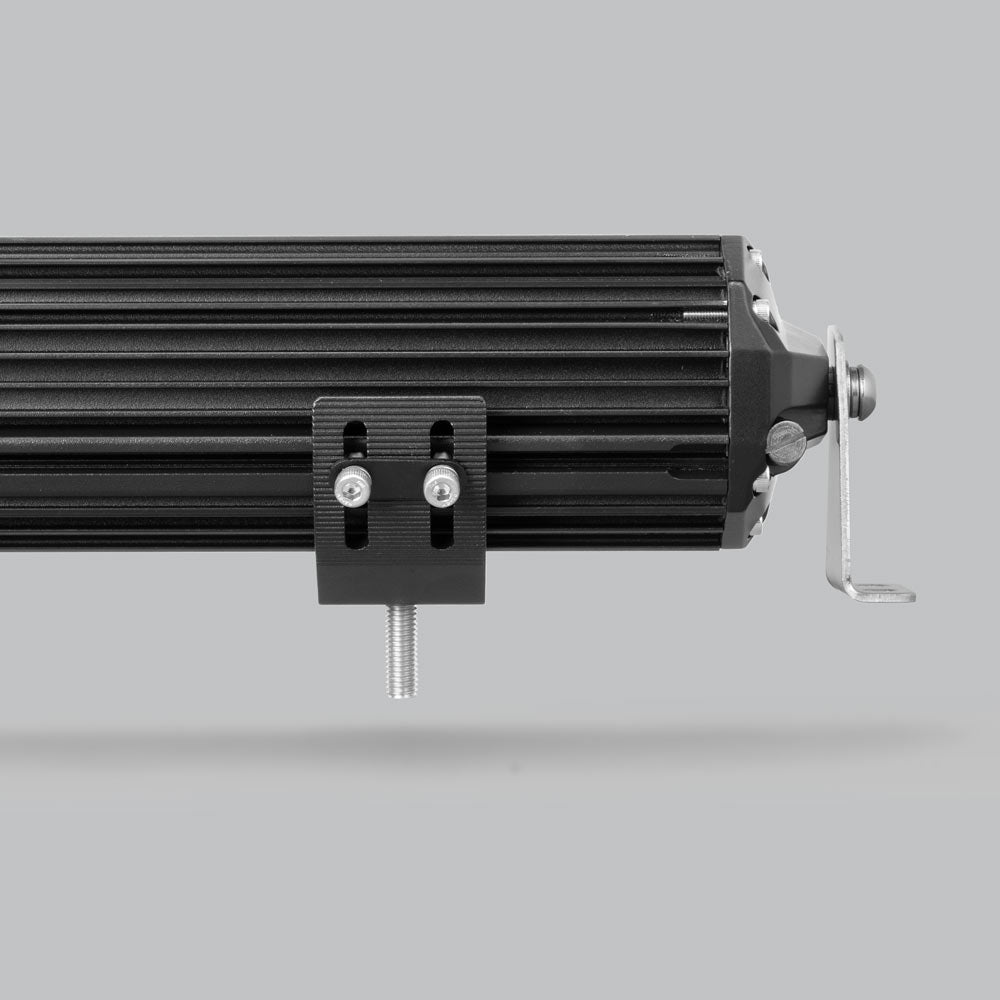

REAR SLIDING UNDERMOUNT BRACKETS
-
High-pressure cast alloy brackets that secure to the rear of the Commander Housing. The Undermount brackets slide along the Commander's rear channel and allow for tilting adjustments to the lightbar. Tightening the bolts will lock the teeth of the bracket to the Commanders housing, ensuring a secure mounting point that will withstand the harshest corrugations.
HARNESS INCLUDED
HIGH BEAM, REVERSE OR SWITCH CONTROLLED.
-
Included high beam by pass adaptor will allow the light bar to turn on and off via in-cabin switch for permanent switch control. Re-purpose the ‘high beam’ trigger to a reverse circuit for illumination when reversing. Either way, we have all scenarios covered in this kit.
SPECIFICATIONS:
| LUX DISTANCE | 1 LUX @ 70M/90/130 (approx) |
| LUMENS | 3600, 6100, 9500 |
| LENS | GE Lexan Lens 3mm - Indestructible |
| LEDs | Osram 5W P7 |
| FINISH | DuPont Midnight Paint |
| FASTENERS | 316L Marine Stainless |
| WATERPROOF RATING | IP68 - IP69K |
| WARRANTY | Lifetime |
| INPUT VOLTAGE | 10-30V DC |
| CURRENT DRAW | 7.5A - 22" |
| INCLUDED WIRING HARNESS | 14 Gauge Dual DT Output, Negative and Positive switched headlight compatible |
| COLOUR TEMPERATURE | 5700K @ 82+ CRI |
| WEIGHT | 1.50KG (including brackets) |
Dimensions:
What's included:
1x Commander Scene Light Bar. 8", 12" or 22".
1X Fast Fit Single Harness
1X High Beam Bypass for fast fit harness - switch will activate light bar.
