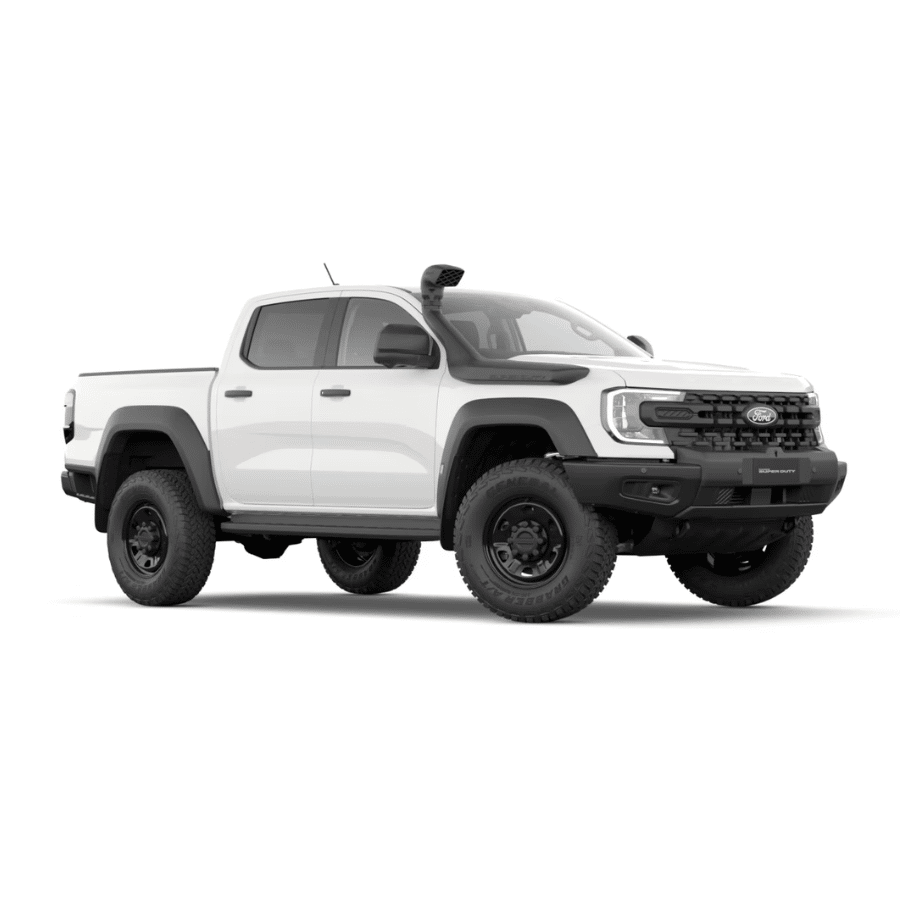

Ford Next-Gen Ranger Super Duty Behind Grille Kit
Boost the lighting power on your Ford Ranger Super-Duty with our Grille Integration Light Bar Kit. Seamlessly integrate your choice of 2 x Nitro Maxx 105w light bars, 2 x Raptor 165w light bars, or 1 x Raptor 165w light bar into your grille without having to invest in a bull bar. The kit comes with full fitting instructions with images for each step. The kit includes a plug & play high beam adaptor, so no soldering or cutting of wires is needed.
Each kit comes complete with:
- A choice of Nitro Maxx or Raptor Light Bars
- 1 x Purpose-built Ford Ranger Super Duty light bar bracket kit
- 1 x Wiring Harness to suit
- 1 x High-beam plug & play wiring adaptor
- Mounting hardware (bolts, nuts and brackets)
- Fitting and wiring instructions
The Ultra Vision team are just a phone call away if you have any questions or require assistance. Please be advised that these brackets have been designed to suit Ultra Vision Lighting products only. Our warranty policy does not cover integration or behind grille kits that are fitted with any other lighting brands.
Beam Pattern

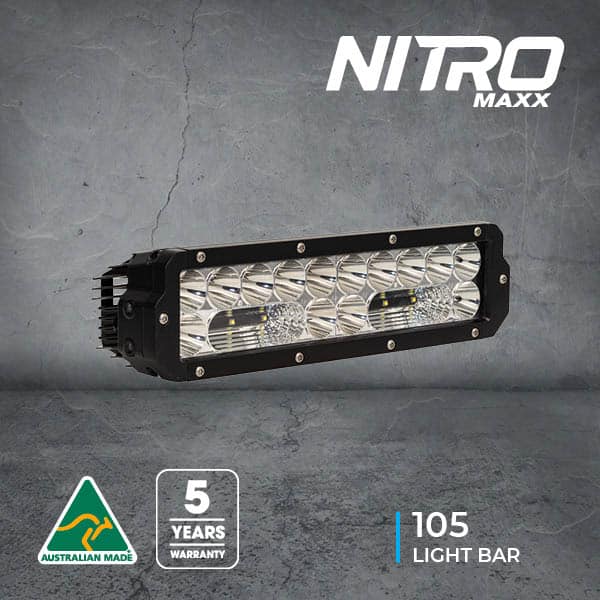

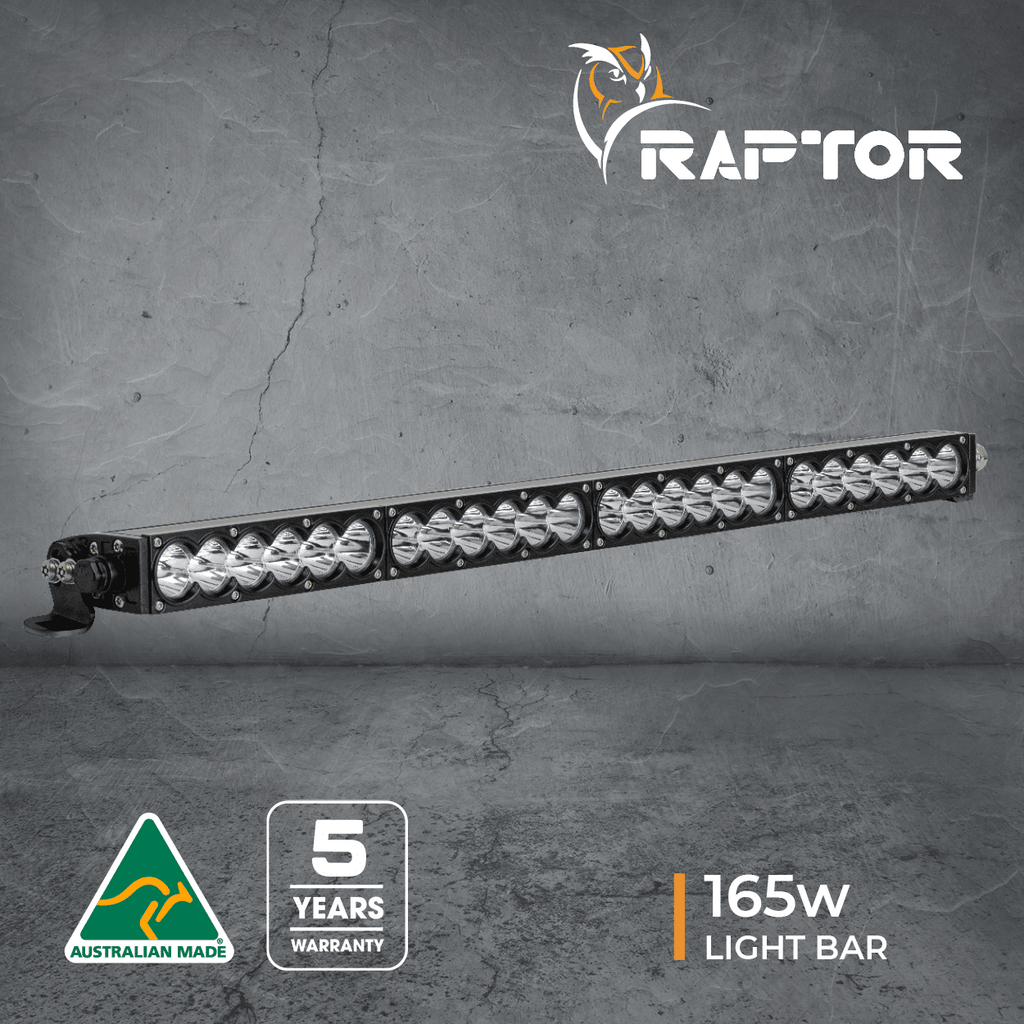

| Light Bar Specs (1x Light Bar) | Nitro Maxx 105 | Raptor 165w |
|---|---|---|
| Wattage | 100 Watts | 165 Watts |
| Light Source | 20 x 5w LED's | 24 High Power LEDs |
| Light Output – Raw | 12,320 Lumens | 18,609 Lumens |
| Light Output – Effective | 8,865 Lumens | 15,240 Lumens |
| Voltage | 9-36V | 9-36V |
| Current Draw | 8A | 13A |
| Operating Temperature | -40 to 80 Deg C | -40 to 80 Deg C |
| Waterproof Rating | IP68 | IP67 |
| Connector Type Plugs | 2 Pin std Deutsch | 2 Pin heavy duty Deutsch |
| Housing | 6063 T5 Aluminium | 6063 T5 Aluminium |
| Lens Construction | Polycarbonate | Polycarbonate |
| Brackets | Sliding Base / Side Mounts | Side Mount Brackets |
| Colour Temperature | 5700K | 5700K |
| Lifespan | 50,000 Hours | 50,000 Hours |
| Dimensions | 324 x 92 x 84mm | 679 x 45 x 73mm |
| Net Weight | 1.9 kg | 2.3kg |
| Beams Available | Combo and Widr | Spot |
| Warranty | 5 Years | 5 Years |
