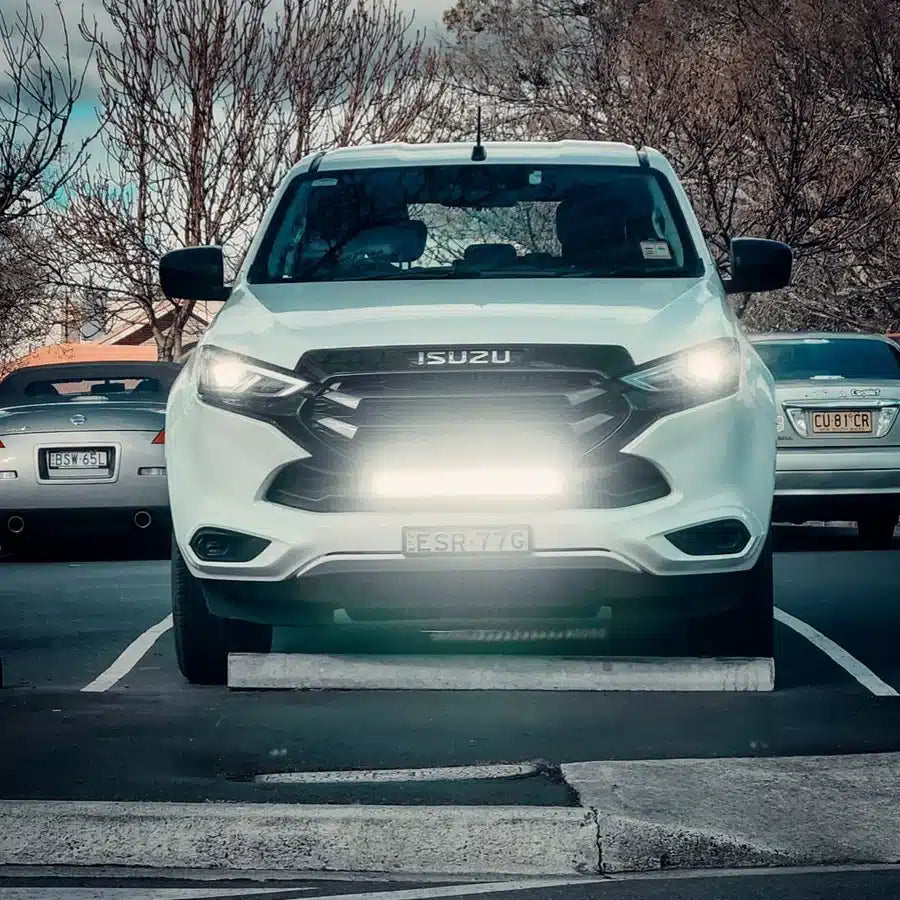

With this Behind Grille Light Bar Kit, getting the power of Ultra Vision on your Isuzu MU-X is a smooth and pain free process. Get everything you need in one kit without any cutting, drilling, or a bull bar! Cleverly designed specifically for the Isuzu MU-X 2021-on, the bumper or grille do not need to be removed for installation. Only the grille shroud beneath the bonnet needs to be removed temporarily for access to mount the light bar behind. The purpose-built MU-X light bar brackets mount to existing points on the body, all you will need is a 13mm & 12mm spanner to install.
Each kit comes complete with:
- 1 x Raptor 125W 20.5-Inch LED Light Bar in 5700k
- 1x Wiring Harness to suit
- 1x Purpose-built MU-X behind-grille black powder-coated bracket kit
- 2x MU-X high-beam plug & play wiring adaptors (1x for models up to July 2021 and 1x for Jan 2022-on models)
- 1x OEM-style switch to fit into factory switch blank
- 1x Mounting hardware kit (nuts, bolts, and brackets)
- Fitting and wiring instructions
Please be advised that these brackets have been designed to suit Ultra Vision Lighting products only. Our warranty policy does not cover integration or behind grille kits that are fitted with any other lighting brands.
Beam Patter
| 125W Raptor Light Bar Specifications | |
|---|---|
| Wattage | 125 Watts |
| Light Source | 18 High Power LEDs |
| Light Output – Raw | 13,957 Lumens |
| Light Output – Effective | 11,430 Lumens |
| Voltage | 9-36V |
| Current Draw | 10A @ 13.5V |
| Operating Temp. | -40 to 80 Deg C |
| Waterproof Rating | IP67 |
| Connector Type Plugs | 2 Pin Heavy Duty Deutsch |
| Housing | Aluminium |
| Lens Construction | Polycarbonate |
| Bracket | Stainless Steel powder coated black |
| Colour Temperature | 5700K |
| Lifespan | 50,000 Hours |
| Dimensions | 523 x 45 x 73mm |
| Net Weight | 1.7kg |
| Mounting Suitable | Side Mount Brackets |
| Warranty | 5 Years |
| Beam Type | Spot Beam |
