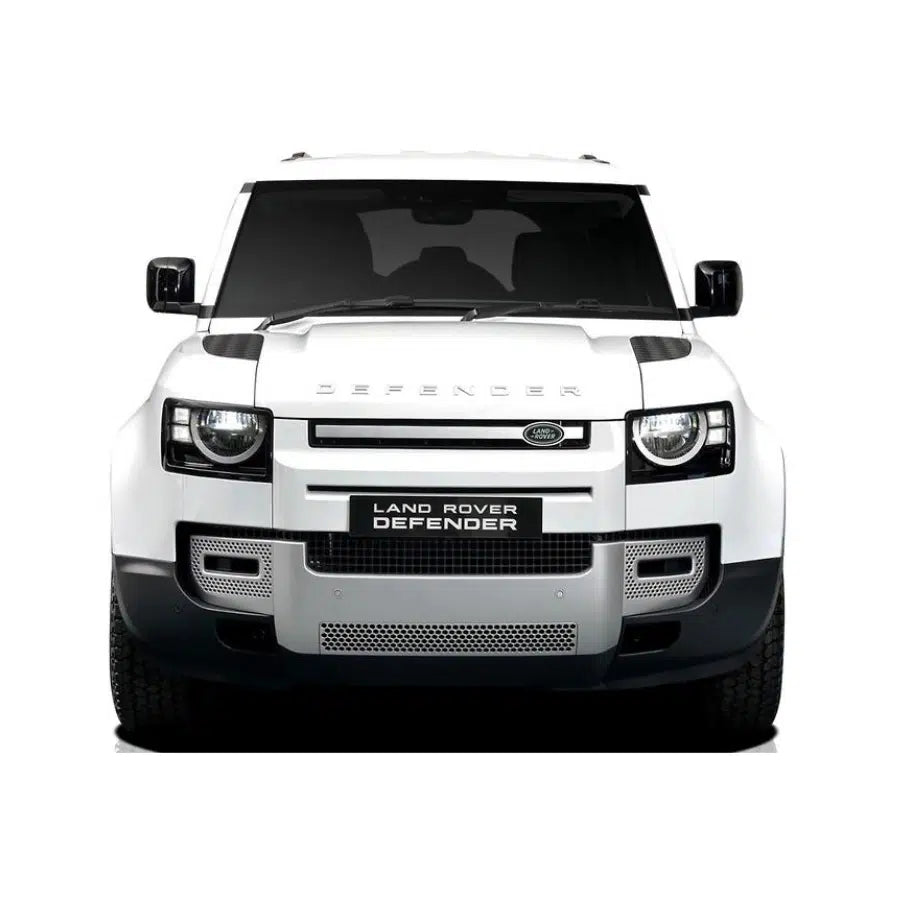

Land Rover Defender Light Bar
Specifically designed for the Land Rover Defender, this behind grille integration kit has everything you need to integrate the power of Ultra Vision with your vehicle, and there’s no cutting or drilling required!

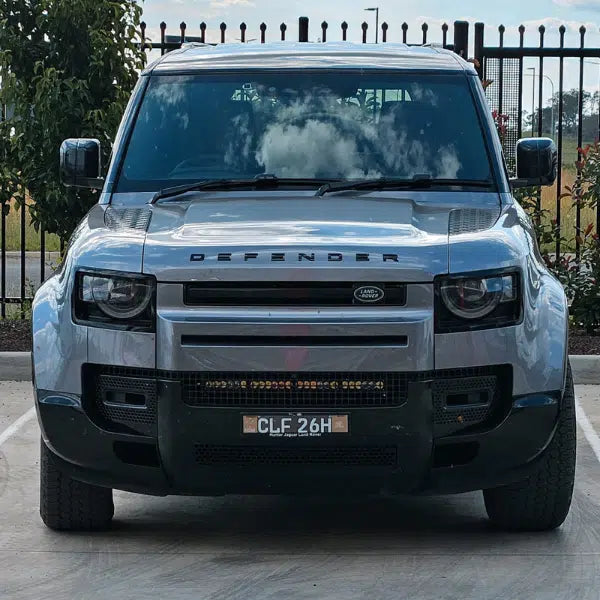

This kit allows you to easily conceal Ultra Vision, Australian designed and made LED Light Bars to your Defender without having to invest in a bull bar. The light bars mount to existing points behind the grille providing a very solid fitment that doesn’t vibrate on rough roads.
The bracket system is cleverly engineered so that it mounts to existing points behind the grille. Only the grille shroud beneath the bonnet needs to be removed temporarily for access.
Each light bar kit comes complete with:
- 1x Raptor 165w Light Bar (5700K)
- 1x Wiring harness to suit
- 1x Purpose-built behind-grille black powder-coated bracket kit
- 1x High-beam wiring harness adaptor
- 1x Mounting hardware kit (nuts, bolts, and brackets)
- Fitting and wiring instructions
The Ultra Vision team are just a phone call away if you have any questions or require assistance.
Please be advised that these brackets have been designed to suit Ultra Vision Lighting products only. Our warranty policy does not cover integration or behind grille kits that are fitted with any other lighting brands.

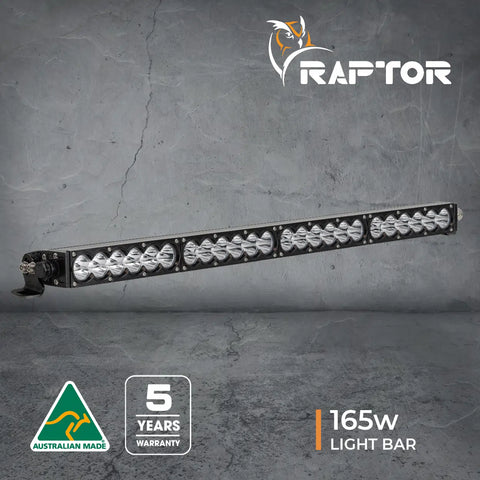

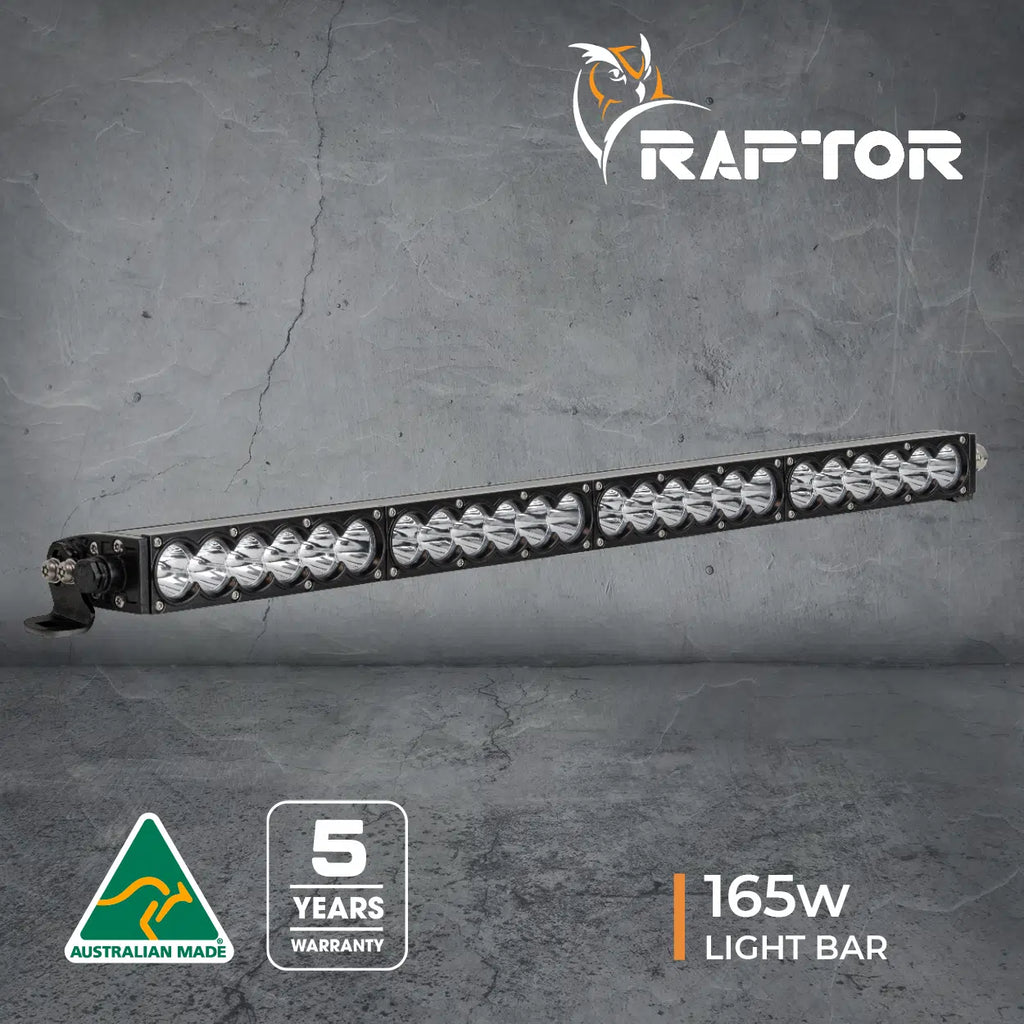

| 165W Raptor Light Bar Specifications | |
|---|---|
| Wattage | 165 Watts |
| Light Source | 24 High Power LEDs |
| Light Output – Raw | 18,609 Lumens |
| Light Output – Effective | 15,240 Lumens |
| Voltage | 9-36V |
| Current Draw | 13A @ 13.5V |
| Operating Temperature | -40 to 80 Deg C |
| Waterproof Rating | IP67 |
| Connector Type Plug | 2 Pin Heavy Duty Deutsch |
| Housing | Aluminium |
| Lens Construction | Polycarbonate |
| Bracket | Stainless Steel powdered-coated black |
| Colour Temperature | 5700K |
| Lifespan | 50,000 Hours |
| Dimensions | 679 x 45 x 73mm |
| Net Weight | 2.3kg |
| Mounting Suitable | Side mount brackets |
| Beams Available | Spot |
| Warranty | 5 Years |
