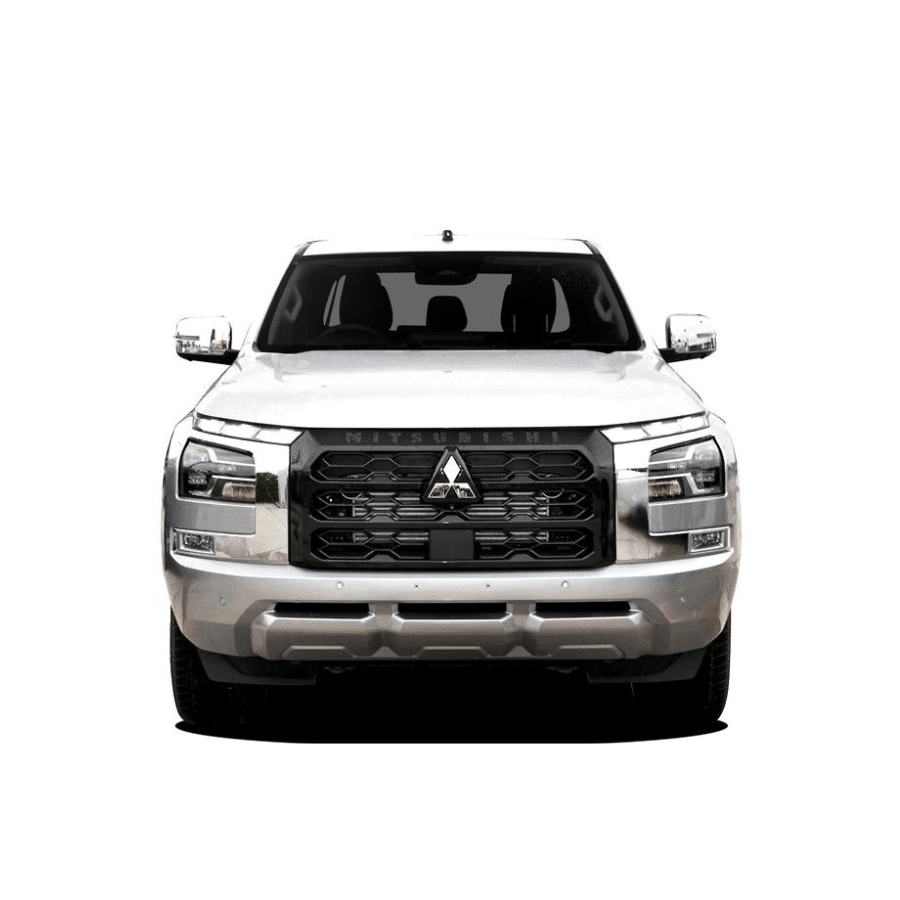

Specifically designed for the Mitsubishi MV Triton, this integration kit has everything you need to integrate the power of Ultra Vision with your vehicle, and there’s no cutting or drilling required! This kit allows you to easily conceal Ultra Vision, Australian designed and made LED Light Bars to your Triton without having to invest in a bull bar. The light bars mount to existing points behind the grille providing a very solid fitment that doesn’t vibrate on rough roads. The bracket system is cleverly engineered so that it mounts to existing points behind the grille. Only the grille shroud beneath the bonnet needs to be removed temporarily for access.
Each kit comes complete with:
- Choice of Nitro Maxx or Raptor Light Bars (5700K)

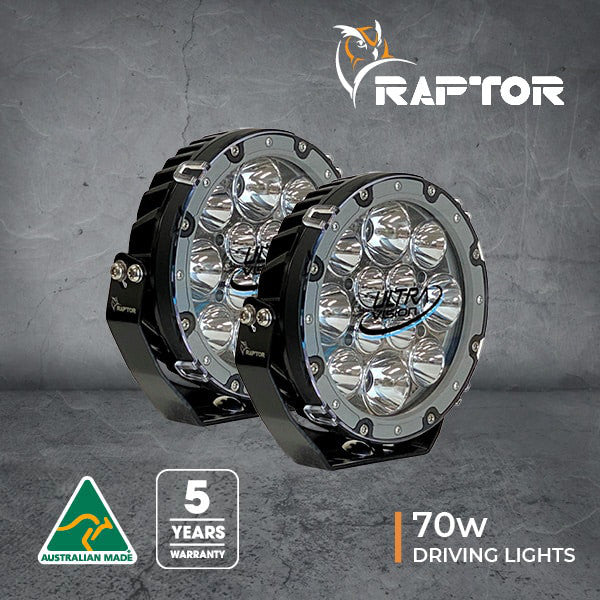

- Option for Raptor 70w Driving Lights
- 1x Wiring harness to suit
- 1x Purpose-built behind-grille black powder-coated bracket kit
- 1x High-beam wiring harness adaptor
- 1x Mounting hardware kit (nuts, bolts, and brackets)
- Fitting and wiring instructions
The Ultra Vision team are just a phone call away if you have any questions or require assistance. Please be advised that these brackets have been designed to suit Ultra Vision Lighting products only. Our warranty policy does not cover integration or behind grille kits that are fitted with any other lighting brands.

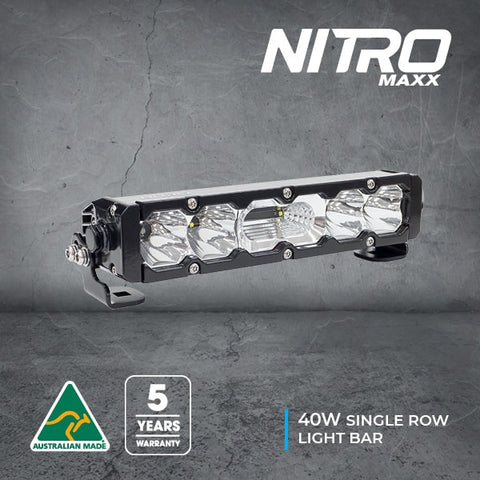

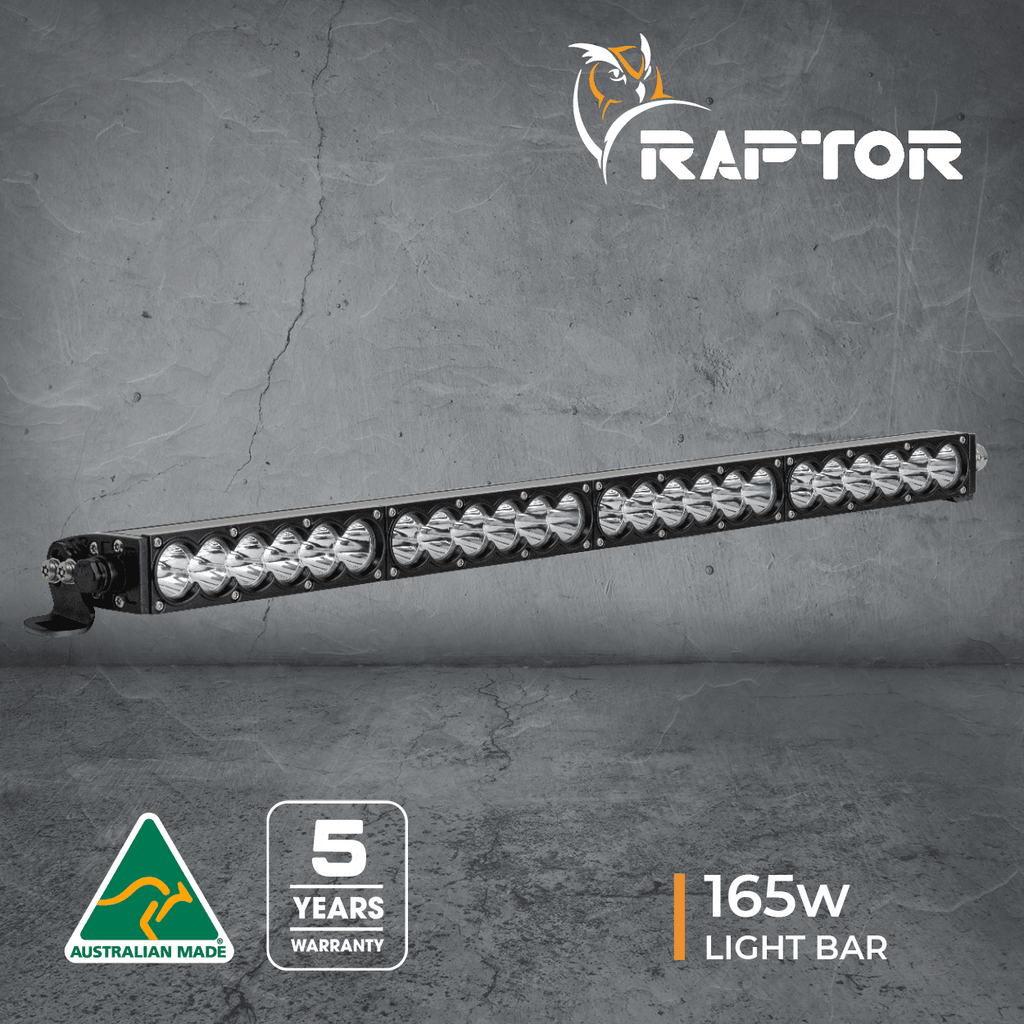

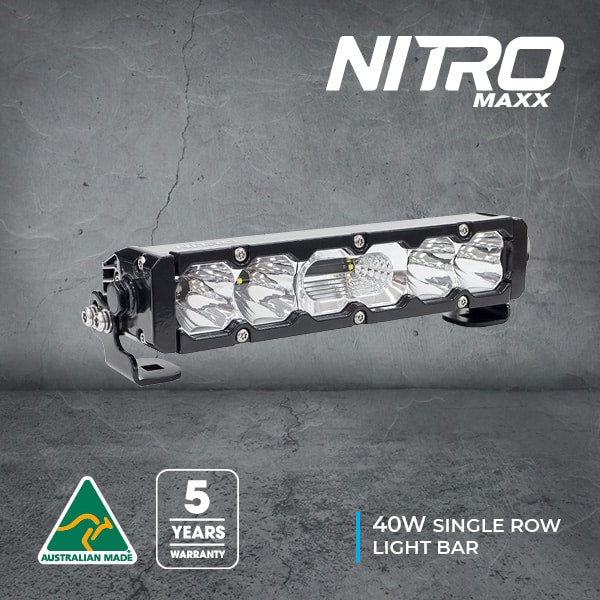

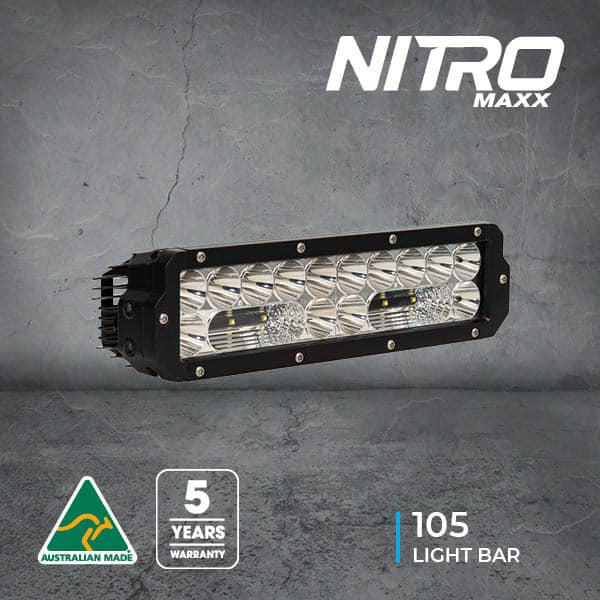

| Specs (per lamp) | Nitro Maxx 105 | Nitro 40w Single Row | Raptor 165w | Raptor 70 (Driving Light) |
|---|---|---|---|---|
| Wattage | 100 Watts | 40 Watts | 165 Watts | 70 Watts |
| Light Source | 20 x 5w LED's | 6 x Osram LEDs | 24 High Power LEDs | 12 x 6w LED's |
| Light Output – Raw | 12,320 Lumens | 4566 Lumens | 18,609 Lumens | 16,400 Lumens (Per Pair) |
| Light Output – Effective | 8,865 Lumens | 3448 Lumens | 15,240 Lumens | 13,284 Lumens (Per Pair) |
| Voltage | 9-36V | 9-36V | 9-36V | 9-36V |
| Current Draw | 8A | 2.66A | 13A | 10A (Per Pair) |
| Operating Temperature | -40 to 80 Deg C | -40 to 80 Deg C | -40 to 80 Deg C | -40 to 80 Deg C |
| Waterproof Rating | IP68 | IP68 | IP67 | IP68 |
| Connector Type Plugs | 2 Pin std Deutsch | 2 Pin std Deutsch | 2 Pin heavy duty Deutsch | 2 Pin heavy duty Deutsch |
| Housing | 6063 T5 Aluminium | 6063 T5 Aluminium | 6063 T5 Aluminium | Die Cast Aluminium |
| Lens Construction | Polycarbonate | Polycarbonate | Polycarbonate | Polycarbonate |
| Brackets | Sliding Base / Side Mounts | Stainless Steel | Side Mount Brackets | Stainless Steel |
| Colour Temperature | 5700K | 5700K | 5700K | 5700K |
| Lifespan | 50,000 Hours | 50,000 Hours | 50,000 Hours | 50,000 Hours |
| Dimensions | 324 x 92 x 84mm | 250mm | 679 x 45 x 73mm | 168 x 182 x 59mm |
| Net Weight | 1.9 kg | 980g | 2.3kg | 1.3kg |
| Beams Available | Combo and Widr | Combo | Spot | Combo |
| Warranty | 5 Years | 5 Years | 5 Years | 5 Years |
