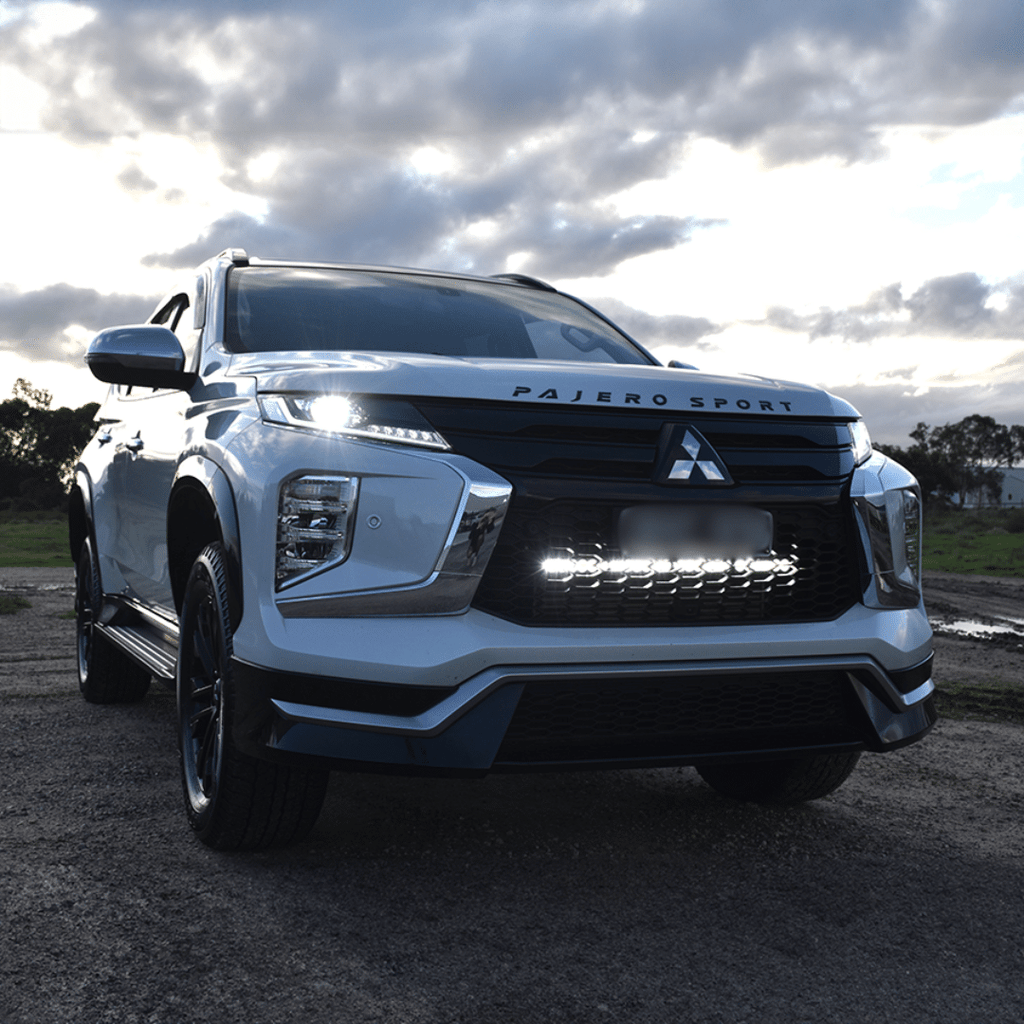

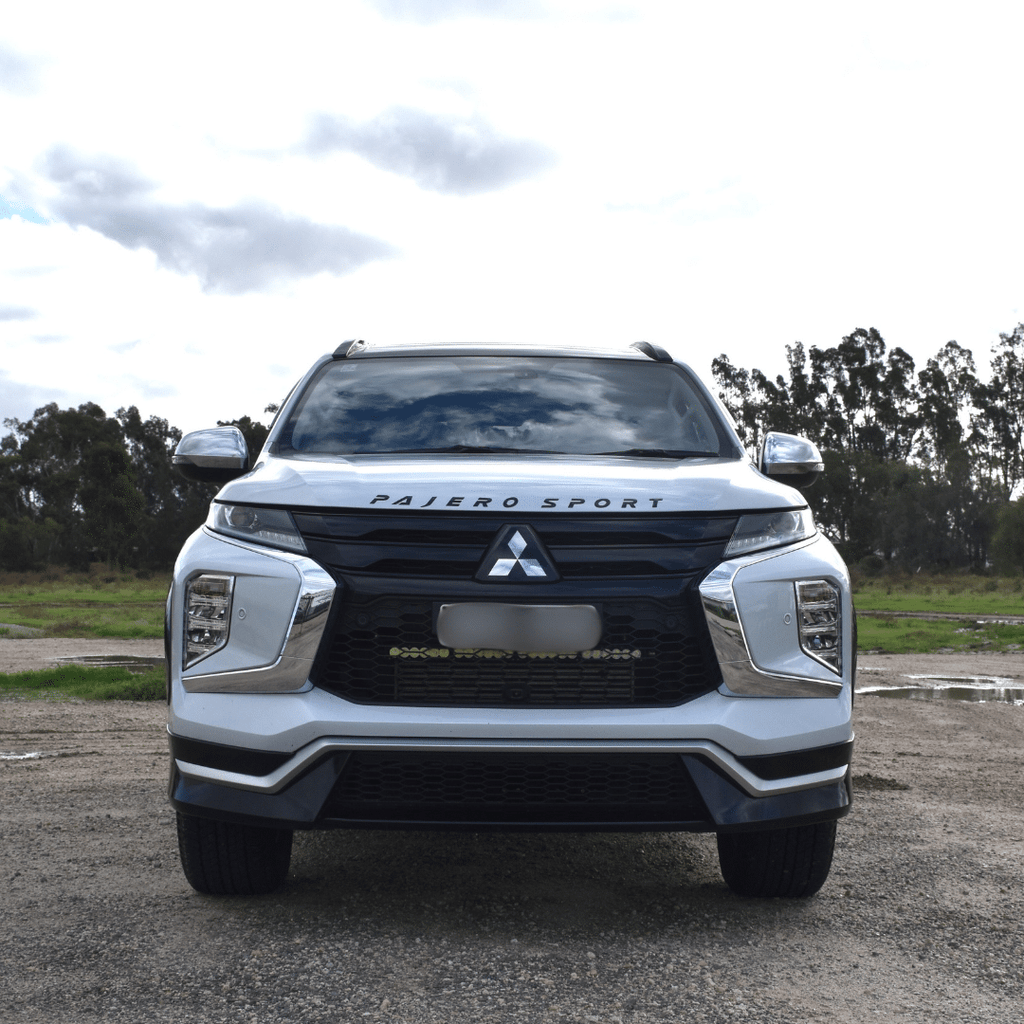

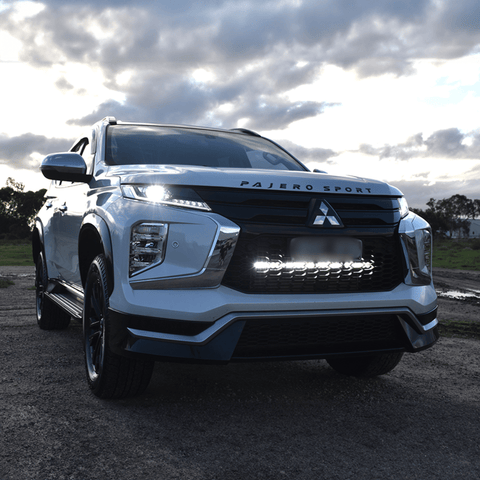

Light up the night with an Ultra Vision Behind Grille Light Bar Kit specifically designed for your Mitsubishi Pajero Sport QF & QG model Nov 2019-on, with no bull bar required! The bracket system has been designed for easy installation, mounting to existing points behind the grille. There is no cutting or drilling needed as only the grille shroud beneath the bonnet needs to be removed temporarily for access to mount the light bar behind.
Each kit comes complete with:

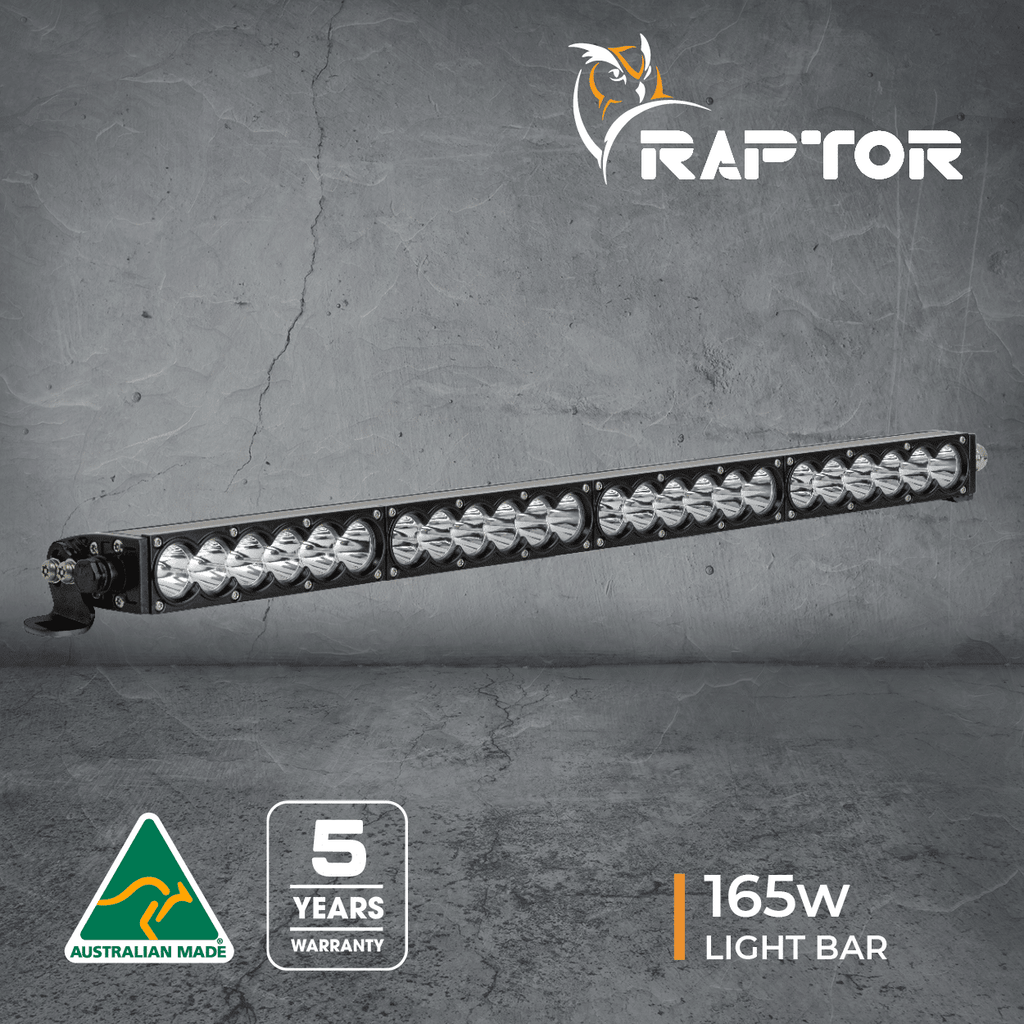

- 1x Raptor 165w 26.5-Inch LED Light Bar in 5700K
- 1x Wiring harness to suit
- 1x Purpose-built Pajero Sport Behind-Grille black powder-coated bracket kit
- 1x Pajero Sport QF/QG high-beam piggyback wiring adaptor
- 1x Mounting hardware kit (nuts, bolts, and brackets)
- 1x OEM-Style switch to fit into factory switch blank
- Fitting and wiring instructions
Please be advised that these brackets have been designed to suit Ultra Vision Lighting products only. Our warranty policy does not cover integration or behind grille kits that are fitted with any other lighting brands.
Beam Pattern (click to enlarge)
| 165W Raptor Light Bar Specifications | |
|---|---|
| Wattage | 165 Watts |
| Light Source | 24 High Power LEDs |
| Light Output – Raw | 18,609 Lumens |
| Light Output – Effective | 15,240 Lumens |
| Voltage | 9-36V |
| Current Draw | 13A @ 13.5V |
| Operating Temperature | -40 to 80 Deg C |
| Waterproof Rating | IP67 |
| Connector Type Plug | 2 Pin Heavy Duty Deutsch |
| Housing | Aluminium |
| Lens Construction | Polycarbonate |
| Bracket | Stainless Steel powdered-coated black |
| Colour Temperature | 5700K |
| Lifespan | 50,000 Hours |
| Dimensions | 679 x 45 x 73mm |
| Net Weight | 2.3kg |
| Mounting Suitable | Side mount brackets |
| Beams Available | Spot |
| Warranty | 5 Years |
