IT'S A PERFECT FIT.

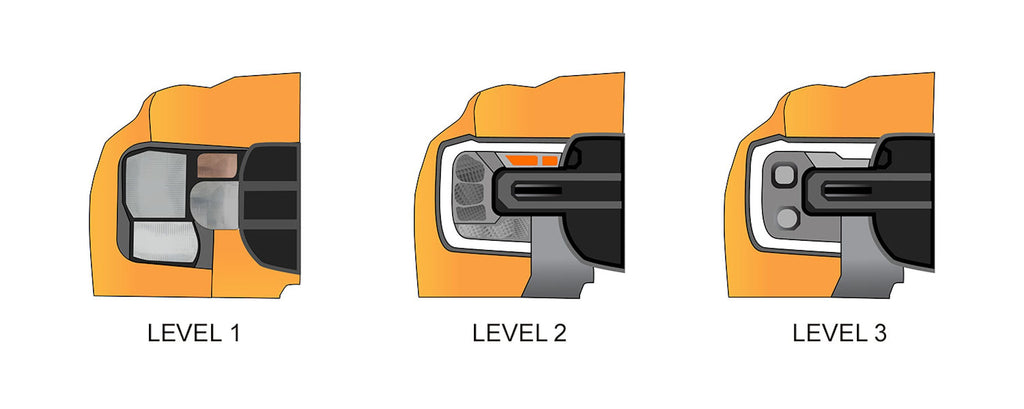

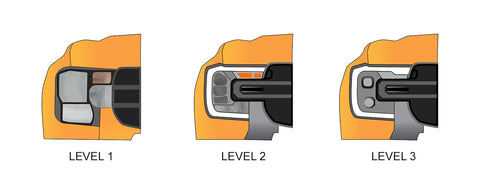

The adaptor comes in two variants depending on the trim level of your vehicle. Suitable for the Level 1 & Level 3 headlights in the following spec levels: XL, XLS, Raptor, Premium or with optioned up Matrix headlights. If you have an XLT, Sport or Wildtrak, these vehicles have a Level 2 headlight and a factory high beam pickup in the passenger footwell. Therefore our Level 2 adapter can be utilized along with an applicable high beam harness.
PLUG & PLAY.
A simple plug & play solution for wiring up your driving lights with no need for splicing, trapping or soldering.
PIGGY BACK OFF OUR HARD WORK.
The STEDI™ Next-Gen Ranger Piggyback Adapter has been carefully designed to be a quick-fit solution for all of your next-gen wiring needs.
THE NITTY
GRITTY.
Specifically designed to suit the Ford Next-Gen Ranger, Raptor & Everest models, to provide easy solution for wiring up your Driving Lights with no need for splicing, trapping or soldering.
The adaptor comes in two variants depending on the trim level of your vehicle.
Please note for reference:
For XL, XLS, Raptor, Premium (platinum) and optioned-up Level 3 headlights : Level 1 & 3 Adapter

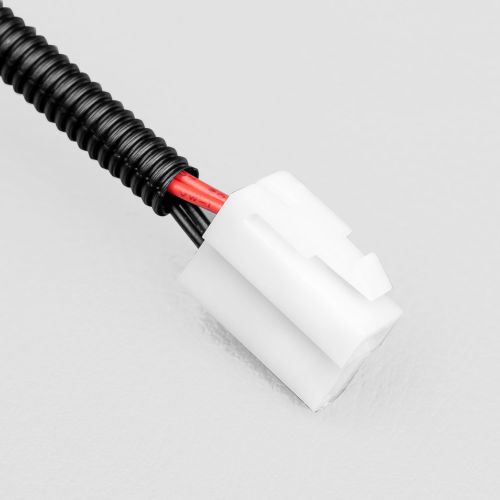

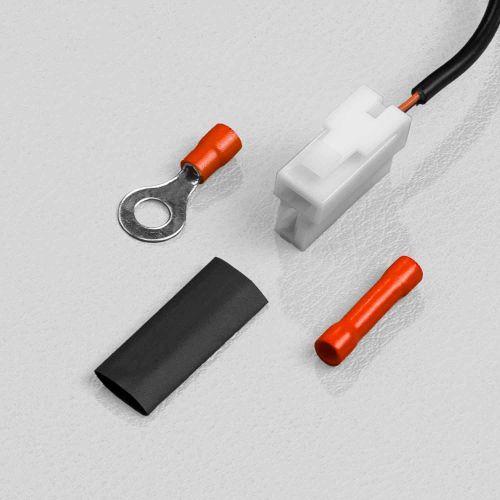

For XLT, Sport or Wildtrak: Level 2
*** Rule of thumb :
If your vehicle has the Overhead Switch Panel installed from the factory, it will most likely require the L2 Adapter. Vehicles with this overhead switch panel have a factory-fitted high beam pickup point located in the passenger side footwell underneath/behind the glove box. This pickup point can be used to trigger auxiliary lights that require high beam 12v triggers, such as STEDI lightbars and spotlights.
If you are unsure, check if you have the switch panel, if you have, check for the high beam pickup in the footwell. If you have this pickup point, you require L2 adapter for plug and play instalation.
If you don't, you require L1&3 Adapter.
TECH SPECS - Next Gen
| CONNECTOR TYPE | 2 PIN / FORD PROPRIETARY |
| COMPATIBILITY | |
| Ford Ranger | 2022+ (Next-Gen) |
| Ford Everest | 2022+ (Next-Gen) |
| Ford Ranger Raptor | 2022+ (Next-Gen) |
DETAILS - PX2/PX3
The STEDI Quick-Fit high beam piggy back adaptor is designed specificially to fit the PX2, PX3 Ford Ranger, Ford Ranger Raptor & Ford Everest all models.

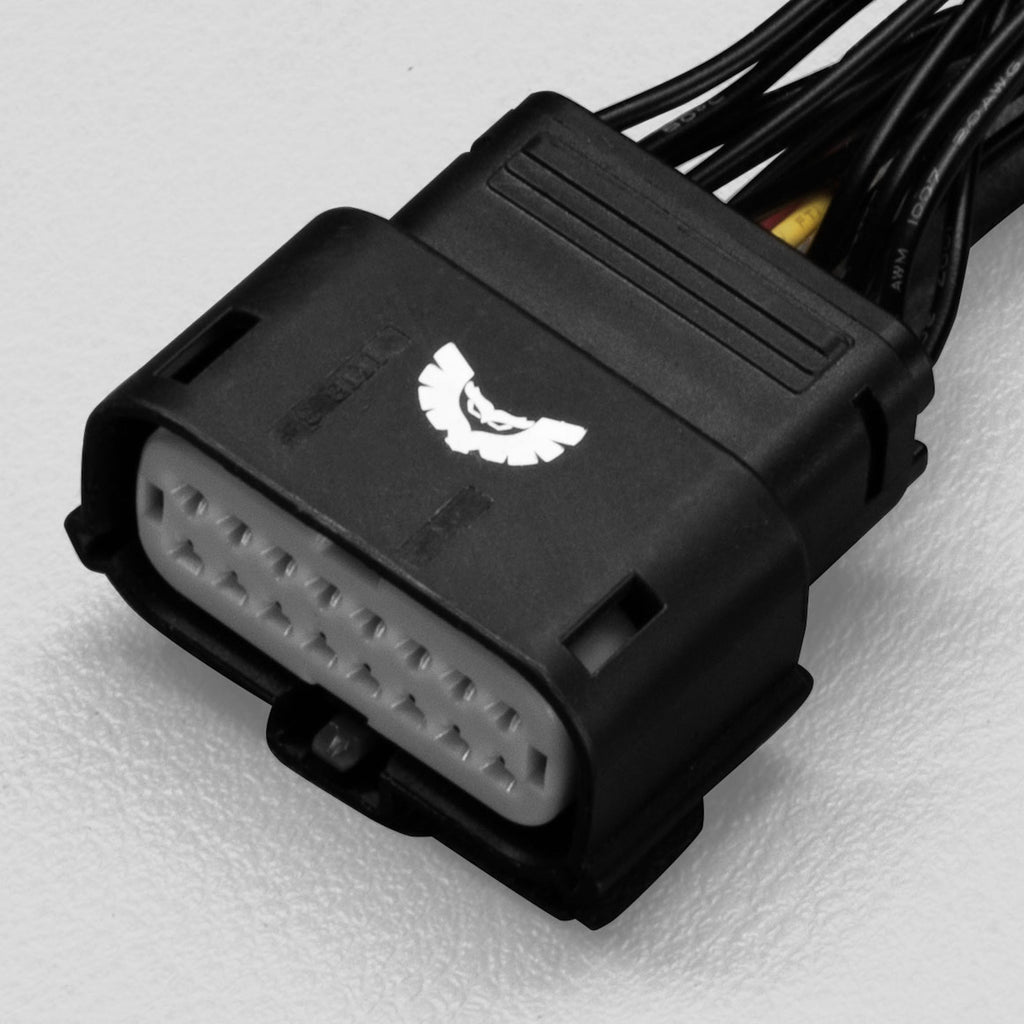

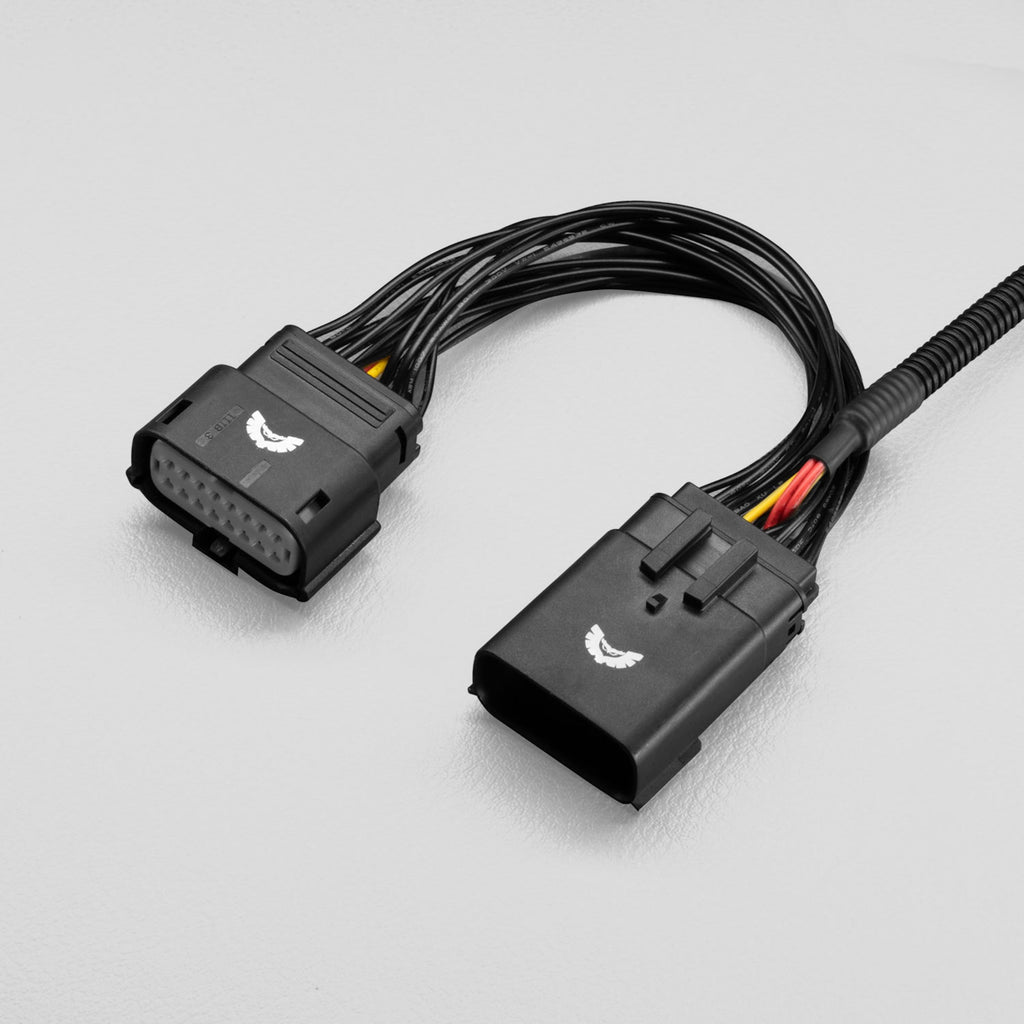

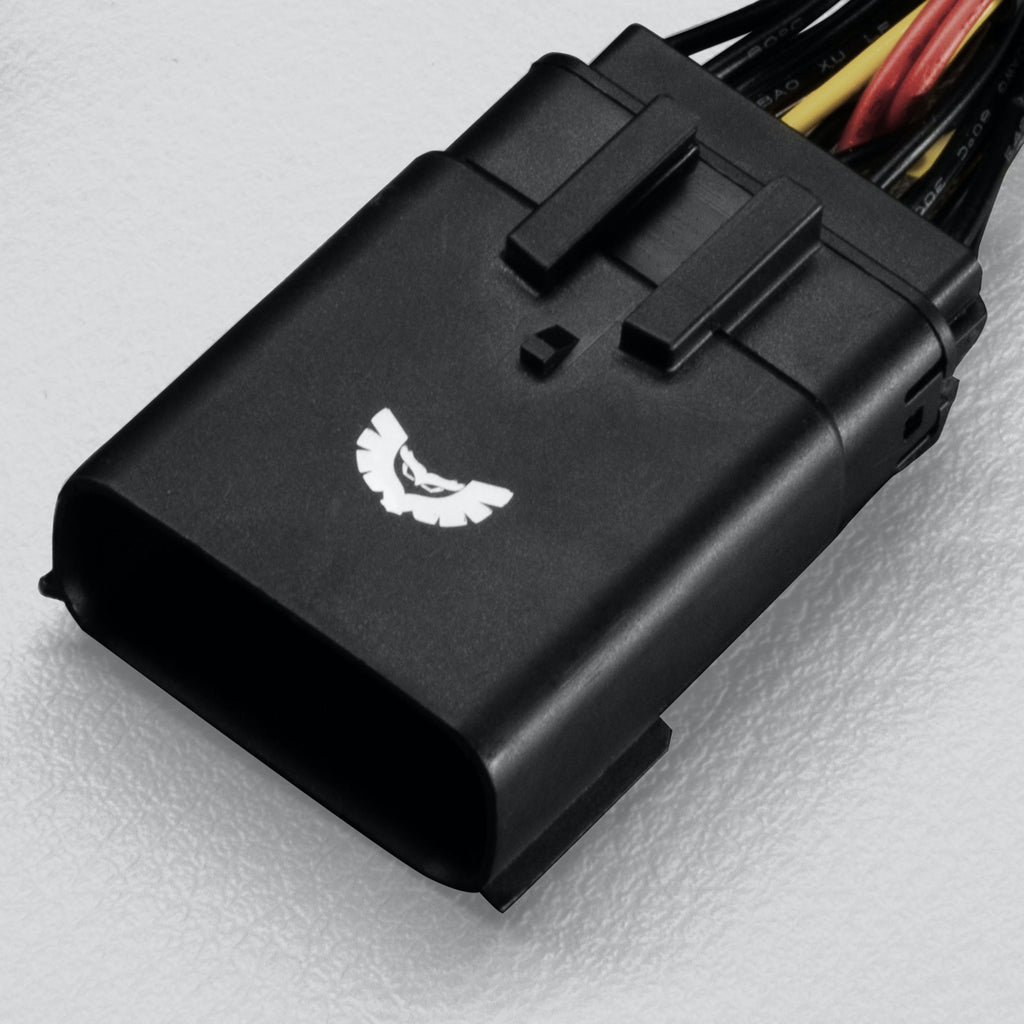

The above named vehicles high beam bulbs resides inside of a sealed rigid dust-cap, therefore using traditional pass-through adaptors means piercing a hole through the vehicles dust-cap. Our Ford Quick-Fit piggy back adaptor connects to the 8 pin plug which is external to the headlamp with incredibility easy access.

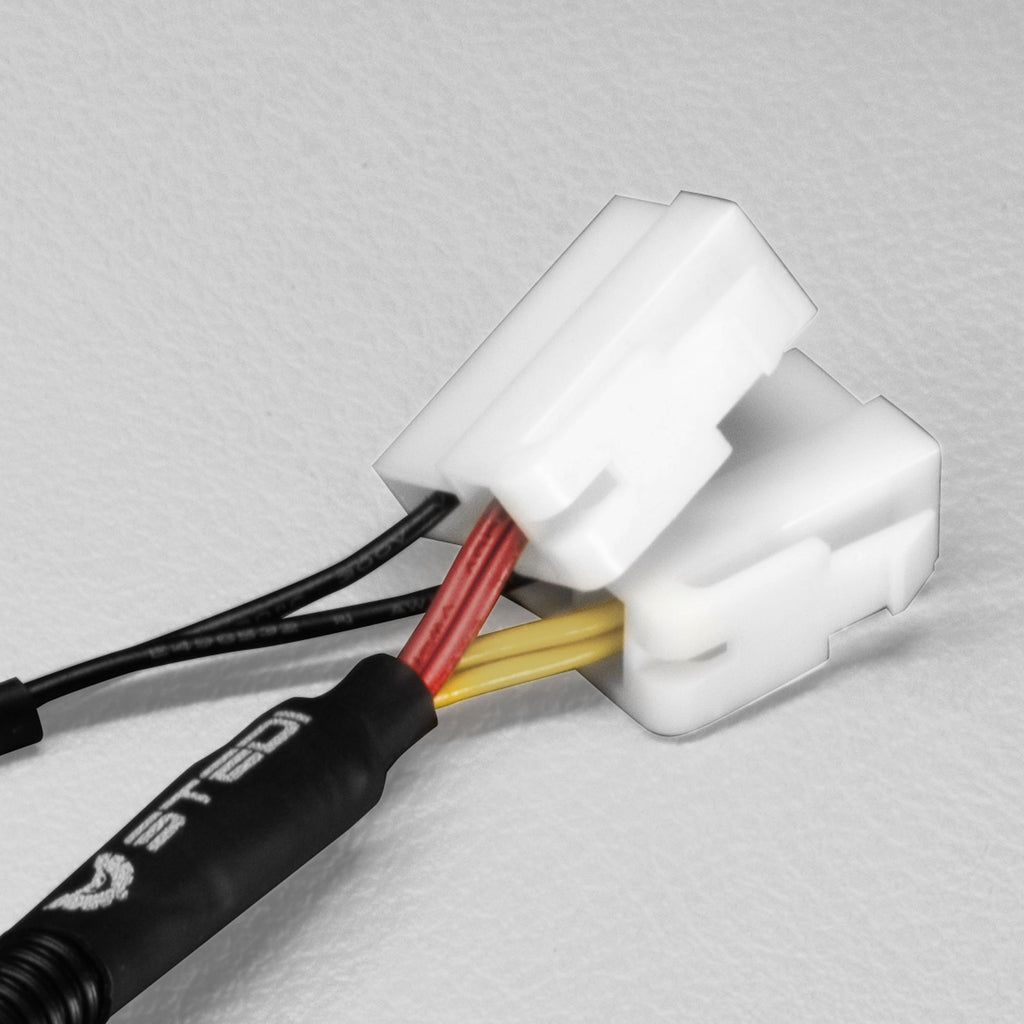

The T-connector on the back of our harness plugs straight in to all existing STEDI Driving Light Smart harnesses, which may also fit other harnesses on the market.
SPECIFICATIONS
| CONNECTOR TYPE | 8 Pin |
| FITS FORD: | Ranger, Ranger Raptor, Everest. 2012-2022 |
WHAT'S INCLUDED
- 1x Piggy-Back High Beam adapter - User Selected
- Wiring instructions
