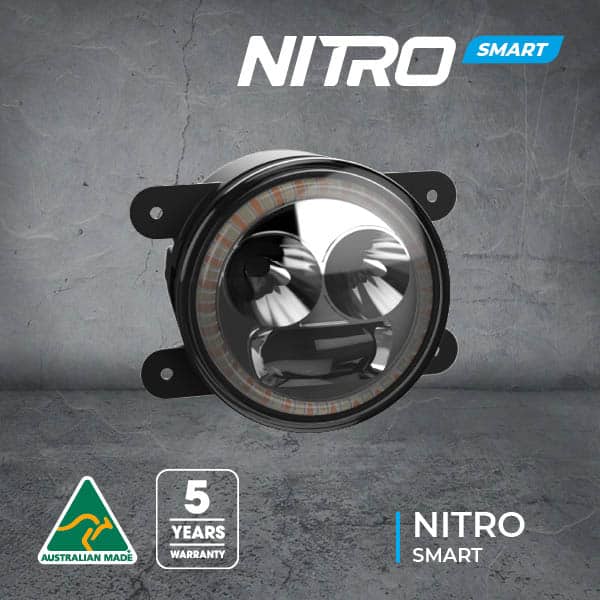

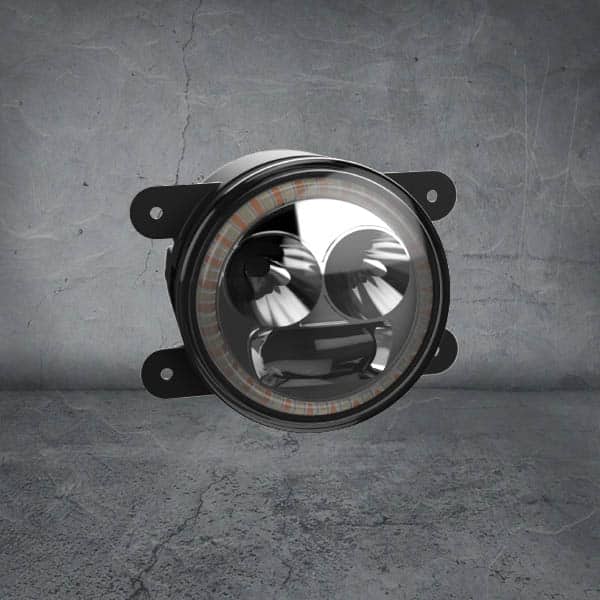

The Nitro Smart has been designed to integrate with bullbars and bumpers to provide significantly more light output without compromising compliance or the OE look of your vehicle. The module delivers 1 lux at 500m from the driving light function, in addition to the other functions of fog, DRL and indicator. Having external adjustment means the units can be tweaked to ensure you get optimum performance with any load.
Wiring harness
An optional generic wiring harness is available. Please note this is generic and not vehicle specific. Although it makes installation simpler we recommend that all Nitro products are installed by a qualified electrician.
Beam Patterns
4000k vs 5700k Colour Temperature
Nitro Smart Hi Beam/ Low Beam comparison
Wiring Diagram
Product Specification
Light Source
LED
Voltage
9V-32V
Current Draw
4.4A @ 13.5V
Operating Temperature
-40°C to +80°C
Waterproof rating
IP67
Connector Type
8 PIN JST
Housing
Aluminium
Lens Construction
Polycarbonate
Carrier
GFN
Colour Temperature
5700K
Lifespan
50'000 Hours

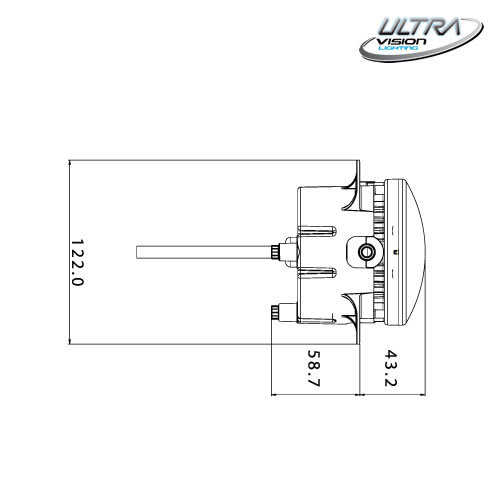

Diameter / Dimensions
100mm
Net Weight
800g
Mounting Suitable
4 Point
Warranty
5 Years
SKUs:
Wiring harness and pair of lights: SB90/KIT
Pair of lights only (no wiring harness): SB90/PR
One light only: SB90
