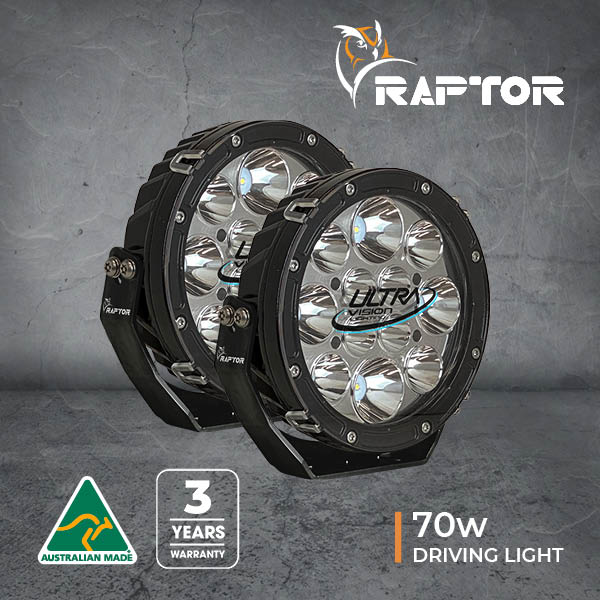

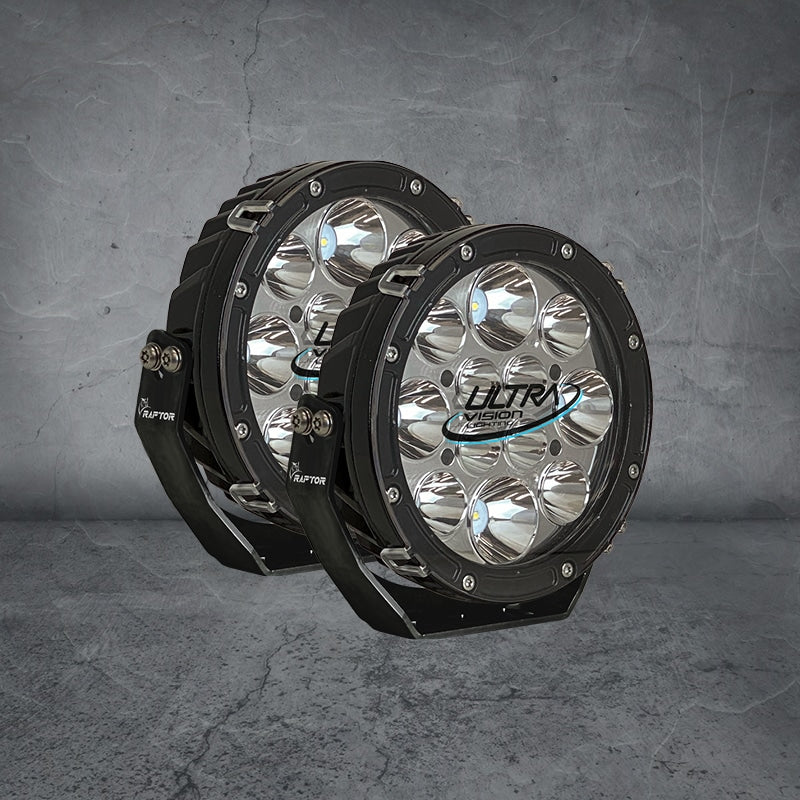

Raptor 70 LED 7" Driving Light (Pair)

The RAPTOR LED Driving Lights feature a high pressure die-cast aluminium housing and high impact polycarbonate lens. The superior optic designs gives a combination beam with both good distance and width from one lamp type. All RAPTOR lamps come complete with a protective lens cover, easy-adjust mounting bracket, wiring harness and stainless steel brackets. To make sure you get the right option for your own driving comfort, the lamps are available with either 4000k or 5700k Colour Temperature. All Raptor products are manufactured in Australia and covered by a 3-year warranty, adding total peace of mind.

---

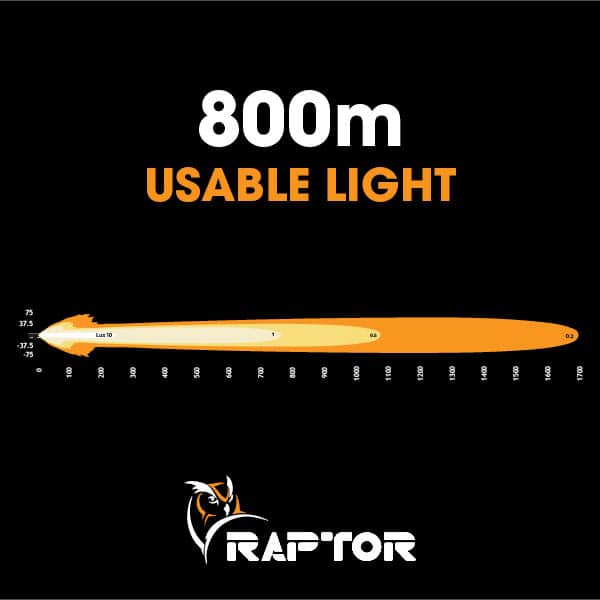

Beam Patterns

SPECIFICATIONS	Raptor 70W
Wattage	70W (per lamp)
Light Source	12 x 6W LED's (per lamp)
Light Output - Raw	16,400 Lumens (per pair)
Light Output - Effective	13,284 Lumens (per pair)
Voltage	9-36V
Current Draw	10A @ 13.5V (per pair)
Operating Temperature	-40°C to +80°C
Waterproof rating	IP68
Connector Type	2 Pin Heavy Duty Deutsch
Housing	Die-Cast aluminium
Lens Construction	Polycarbonate
Bracket	Stainless Steel
Colour Temperature	4000K or 5700K
Lifespan	50,000 Hours

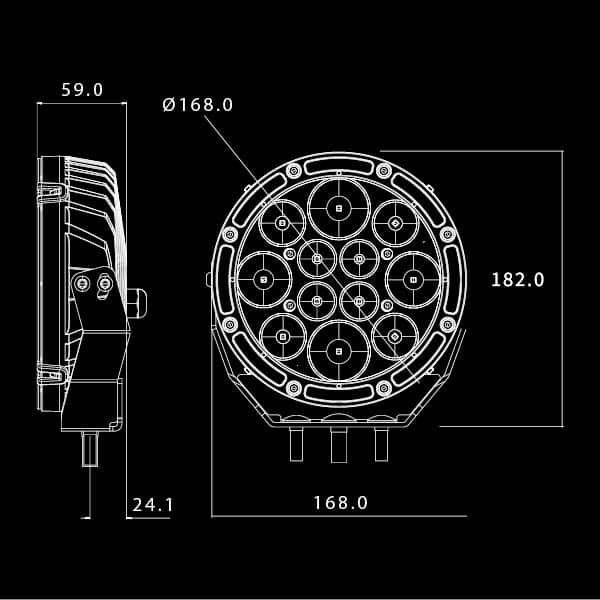

Diameter	170mm
Net Weight	1.3kg (per lamp)
Mounting Suitable	Stainless Steel Bracket
Beams Available	Combo
Warranty	3 Years
Hi/Lo Wiring Harness included	Yes
PART NUMBERS
Raptor 70 4000K	RAP070DL4
Raptor 70 5700K	RAP070DL
