WITHOUT A SHADOW OF A DOUBT

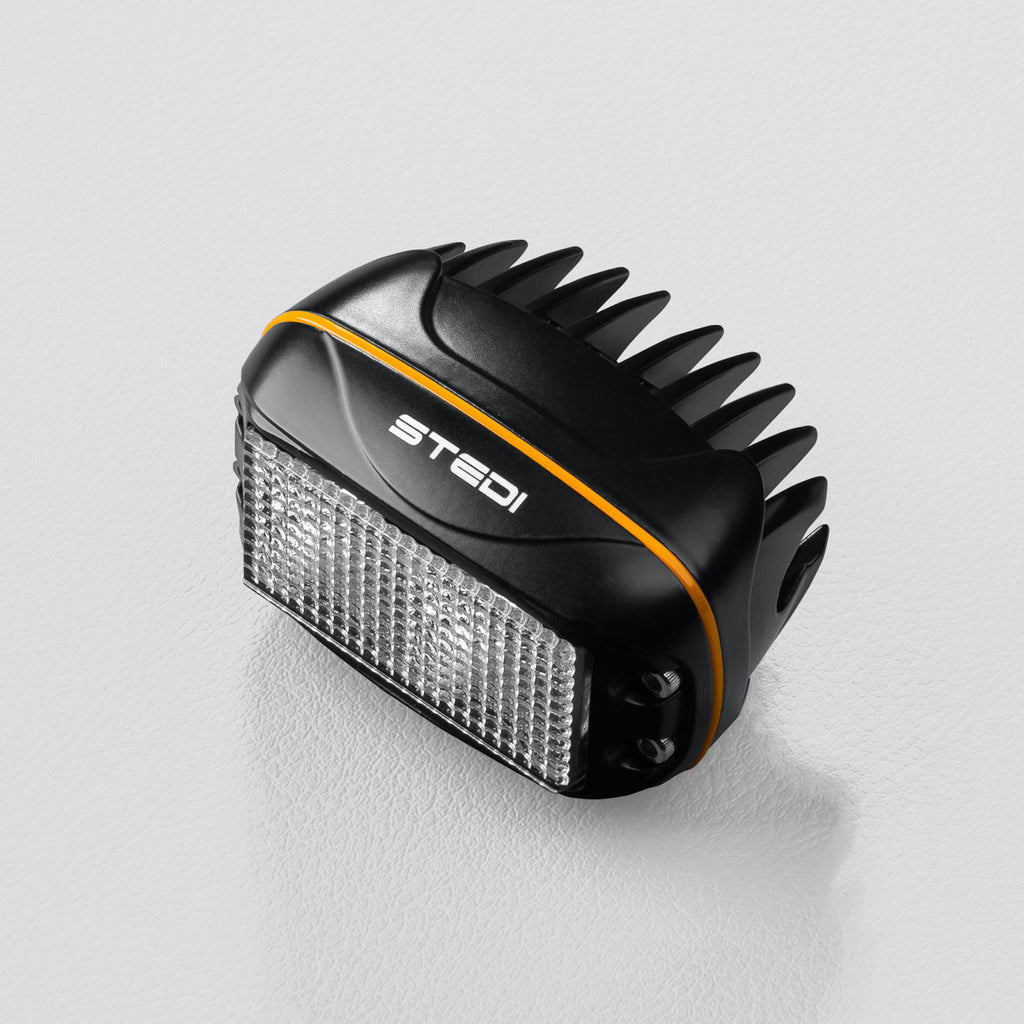

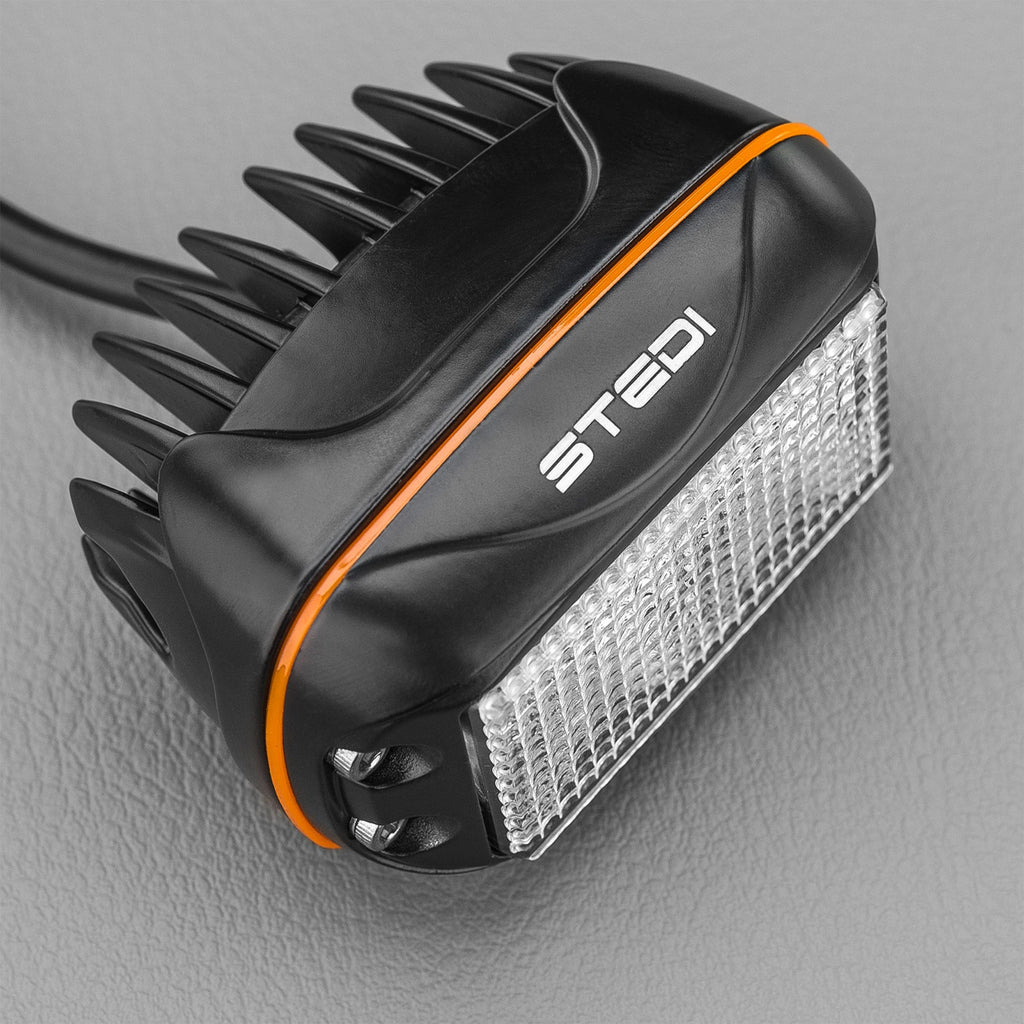

Our 10w Mini LED Work Light packs a powerful punch for a small, 300g light; a big reason as to why it has become a fan favorite. We have taken the 10w Mini LED Work Light to the next level by incorporating a more secure set of fasteners into the lens. Without a shadow of a doubt, this new version has proven to be a solid and durable upgrade for your vehicle.
POWERFUL PERFORMANCE
Running a 2x5w Osram LEDs supplies more light than you would expect from a 300g light. With a 40 degree flood and a low current draw of 0.5a @ 13.8v, it really is no surprise that they are our best selling LED Work Light.
ENDLESS APPLICATION
The 10w Minis have a huge variety of applications and can be used from work/camping lights to bumper-mounted reverse lights. The 2 styles of 10w Mini are easily mounted via the U-Bracket or Flush Face Plate depending on the intended location of the light. We also have a 10w Mini LED Work Light available in a flush mount. If you’ve been trying to upgrade the dull, factory reverse lights, then these are the perfect option.
THE NITTY
GRITTY.
KEY FEATURES
- Flood Optics for a wide 40 degree spread pattern
- 12 Volt and 24v Compatible
- Waterproof Male & Female Deutsch connectors included
- Stainless Steel Fittings
- IP67 - Protected against immersion up to 1m in depth for no longer than 30 minutes at a time
- OSRAM GmbH Emitters
TECH SPECS
| LED POWER | 10 Watts |
| OPERATING VOLTAGE | 12v & 24v Compatible |
| LED CHIPS | 5W x 2 Osram LED's |
| COLOUR TEMPERATURE | 5700K |
| OPERATING TEMPERATURE | -40°C to 60°C |
| RAW LUMENS | 1,000Lm |
| CURRENT DRAW | 0.5A @ 13.8V |
| BEAM | Flood Beam |
| WATERPROOF | IP67 |
| DUSTPROOF & ANTI-VIBRATION | Yes |
| LENS | Optical PC |
| MOUNTING BRACKET | Stainless Steel |
| HOUSING MATERIAL | Cast Aluminum Housing |
| LIFE SPAN | 50,000+ Hrs |
| DIMENSIONS (W x H x D) | 77mm x 48mm x 55mm |
| CERTIFICATES | CE, RoHs & ECE |
| WEIGHT |
0.3kg |
WHAT'S INCLUDED
- 1 x 10W Mini V2 LED Flood Light
- 2 x M6 Bolts
- 1 x Nylock Nut + 1 x Standard Nut
- 1 x Flat Washer + 1 x Lock Washer
- Male & Female Deutsch Connectors
