HIGH PERFORMANCE - ACCESSIBLE PRICE
We welcome the Type-X™ Sport into the STEDI bloodline; our most affordable driving light yet. The goal of STEDI is to offer high-performance, high-quality driving lights at accessible prices. Compare the build quality, performance, and list of inclusions with other offerings on the market and you will conclude that our Type-X™ Sport is peerless.
LEGENDARY TYPE-X DNA
All-new reflector geometry, all-new LEDs, and all-new housing. We’ve increased the depth of the optics by 35%, allowing for a perfectly collimated beam and the resultant increase in light intensity. The beam diameter strikes a sublime balance between width and throw and will send light right out to 1,050m. Four dedicated built-in wide-beam optics disperse light in the nearfield, and transition beautifully with the spot beam.
STEDI DESIGN LANGUAGE
Some people call it the little things; for us, it is literally everything. We have obsessed over the most trivial geometries and design elements to achieve a visually stunning luminaire. The accompanying brackets (with the laser-cut STEDI branding) will allow the Type-X™ Sport to be mounted on a range of locations on your vehicle.
LUX GRAPH:
NIGHT SHOT:
DETAILS
THE NERDY DETAILS

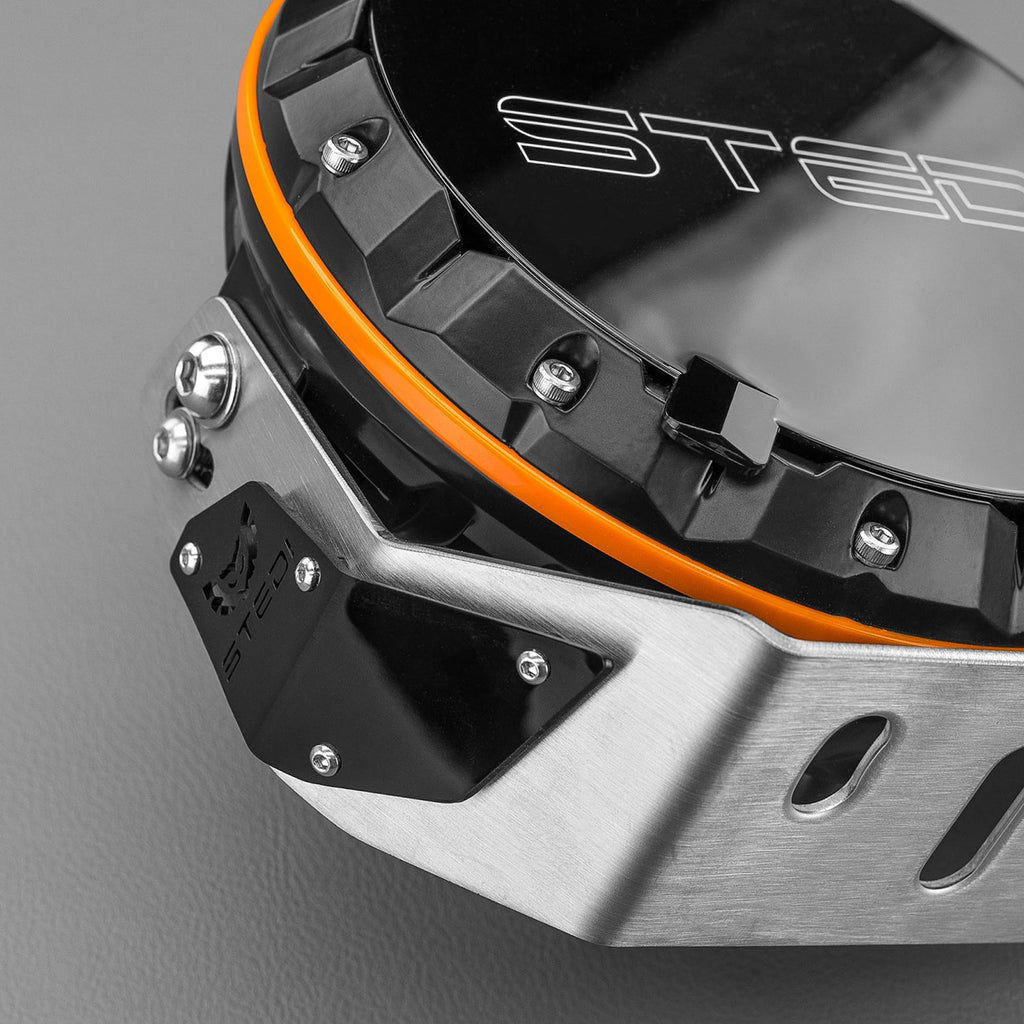

- 4mm thick 304 Series Stainless Mounting bracket, which includes rubber dampener and an additional 3mm upper plate.

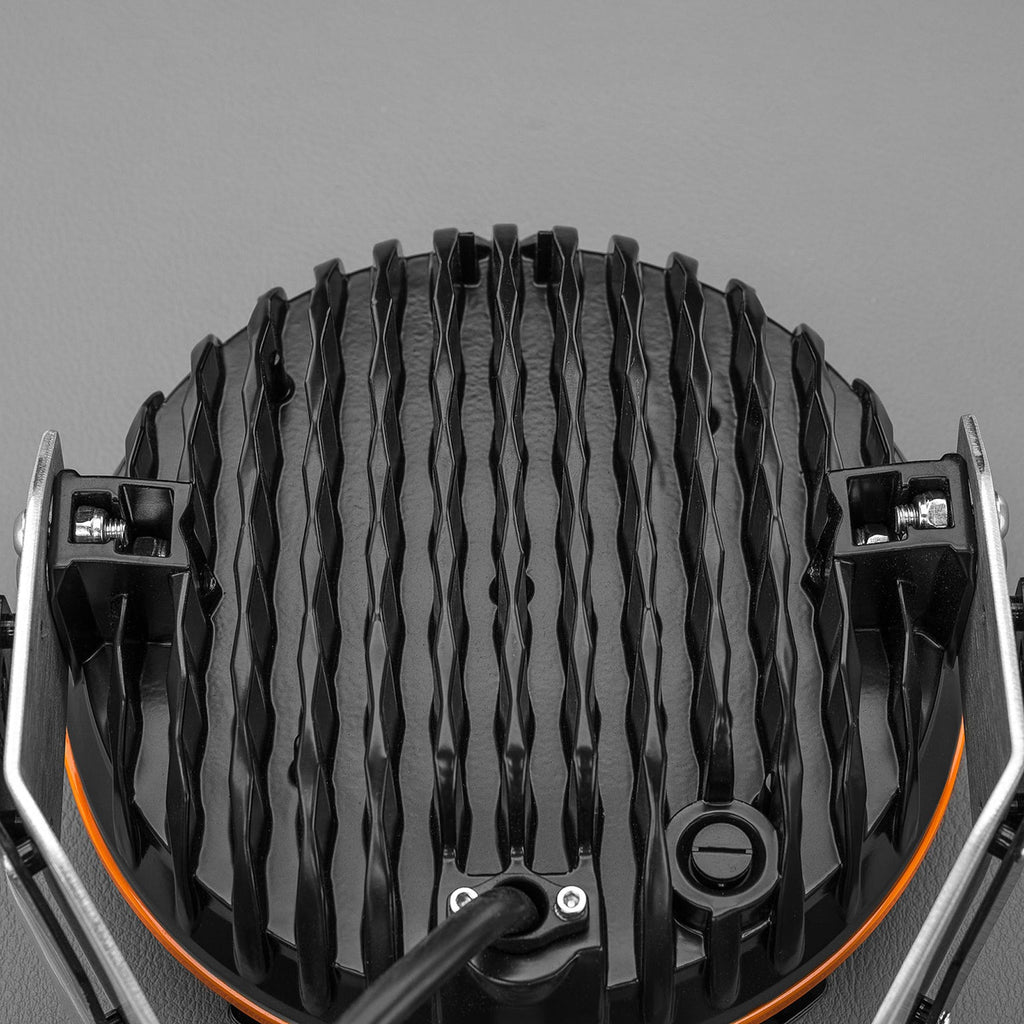

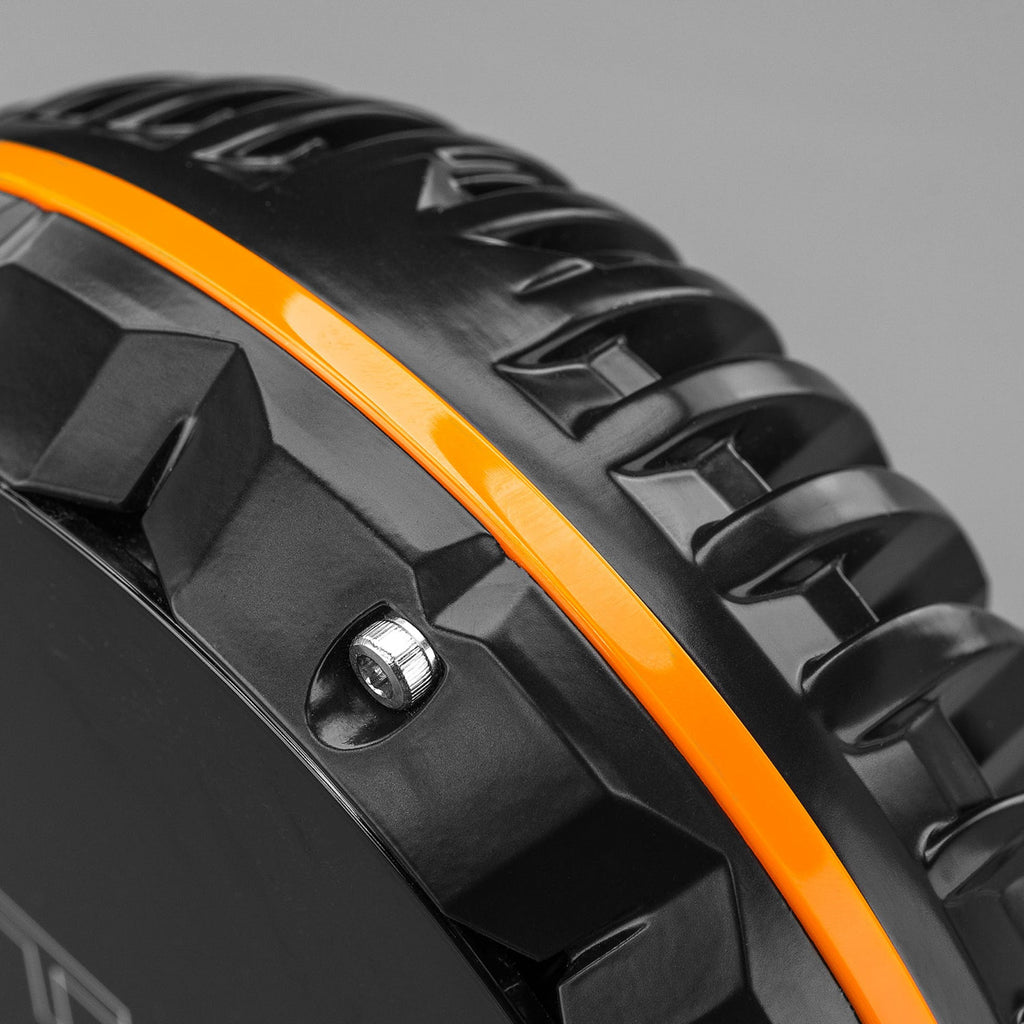

- A360.0 Cast Housing | Boasting superior strength and corrosion resistance.
- 3mm Thick GE Lexan Lens with hard coating | Virtually unbreakable & scratch resistant
- 100% Polyester UV and abrasion resistant powder coat
- IP68 | Dust & Particle tight + Water-proof up to 3 meters
- Nitto Denko Pressure Equalization vent with membrane | Protects against water ingress, dust & contaminants.
- Environmentally Sealed Deutsch® DTP-2 connector
- EMI & RFI Suppression circuitry – We guarantee it.

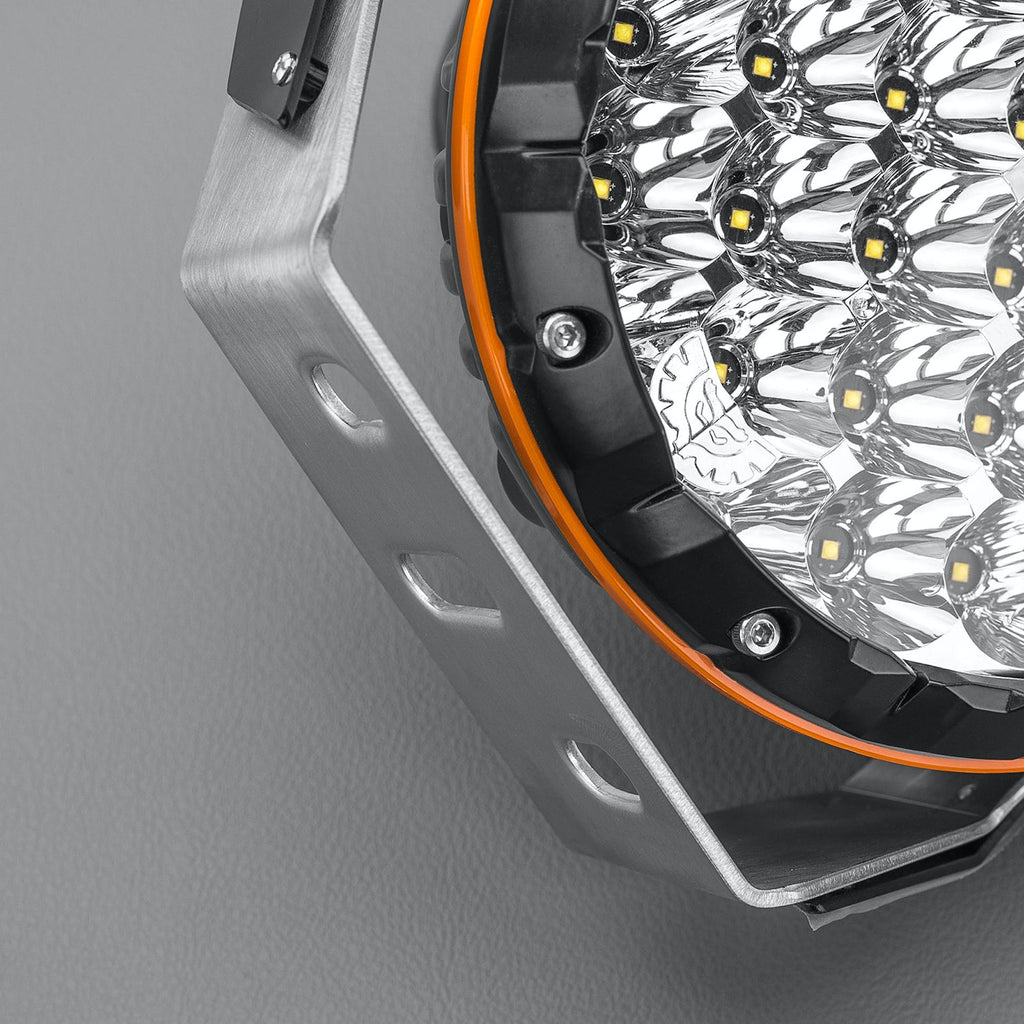

- Each TYPE-X Sport comprises 36 of OSRAM’s® finest OSLON® LED, selected for its high luminous flux and perfectly matches optical properties.
- Four wide-beam reflectors built-in, which form a lateral-shaped flood pattern designed to minimize valuable light wasted up to the sky. Also available separately are the snap-on wide-beam covers, for environments demanding an increased peripheral vision.
- 5700K CCT offers stunning clarity and definition with excellent Colour Rendering Index (CRI)
SPECIFICATIONS
| LED | 36 x Osram Oslon SSL |
| RAW LUMENS | 20,780 (Pair) |
| TESTED LUMENS | 14,950 (Pair) |
| AMP DRAW | 9.8A @ 13.2v (each) |
| POWER DRAW | 129W |
|
CANDELA |
1,102,500cd |
| BEAM PATTERN | 4 x Spread 32 x Spot Beam |
| INGRESS PROTECTION | IP68 | Submersible up to 3m |
| COLOUR TEMP (CCT) | 5700K |
| VOLTAGE COMPATIBILITY | 12v & 24v |
| LUMEN MAINTENANCE | 50,000 LM-80 |
| WEIGHT | 3.35kg (each) |
| PHOTOMETRIC DATA | |
| 10 M | 11,025 Lx |
| 50 M | 441 Lx |
| 200 M | 27 Lx |
| 300 M | 12 Lx |
| 400 M | 6 Lx |
| 1,000 M | 1.1 Lx |
| 1,050 M | 1 Lx |
WHAT’S IN THE BOX
- 2 x STEDI TYPE-X Sport
- 2 x STEDI Black Out Covers

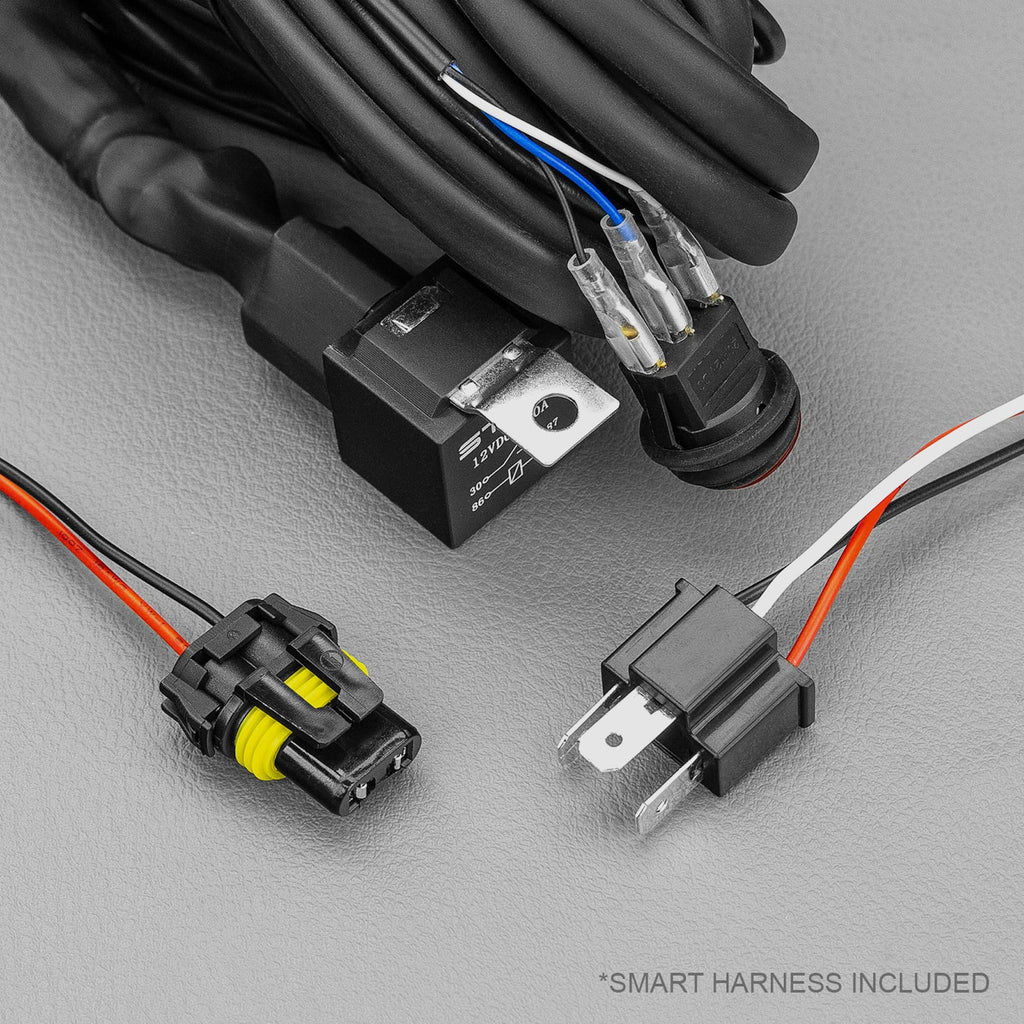

- 1 x Easy Fit High Beam Wiring with DTP-2 Sealed Connectors, H4, HB3 Adapter plugs to high beam. 60A Relay, Fuse, Switch
- 3 Series Stainless Steel Nuts and Bolts
- Rubber Shock Dampener
- Wiring Instructions
