OVERVIEW.

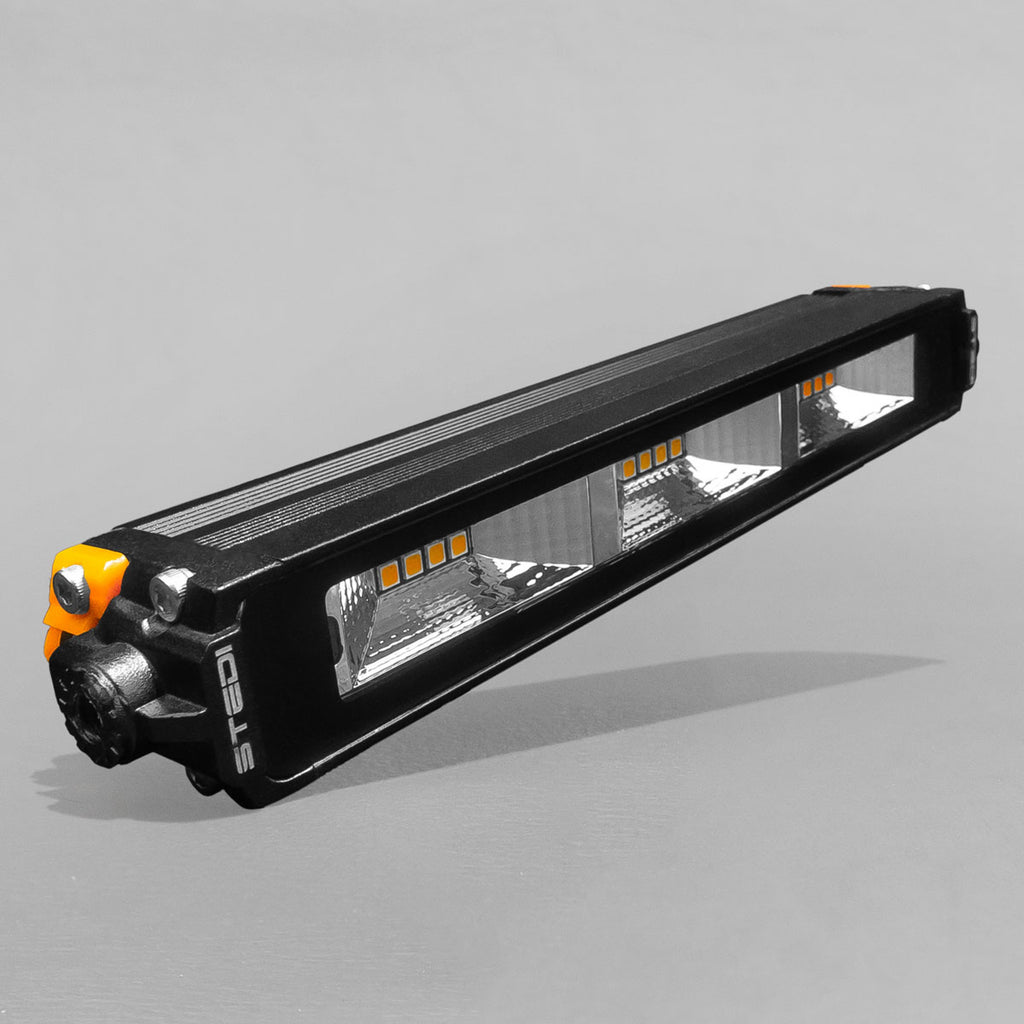

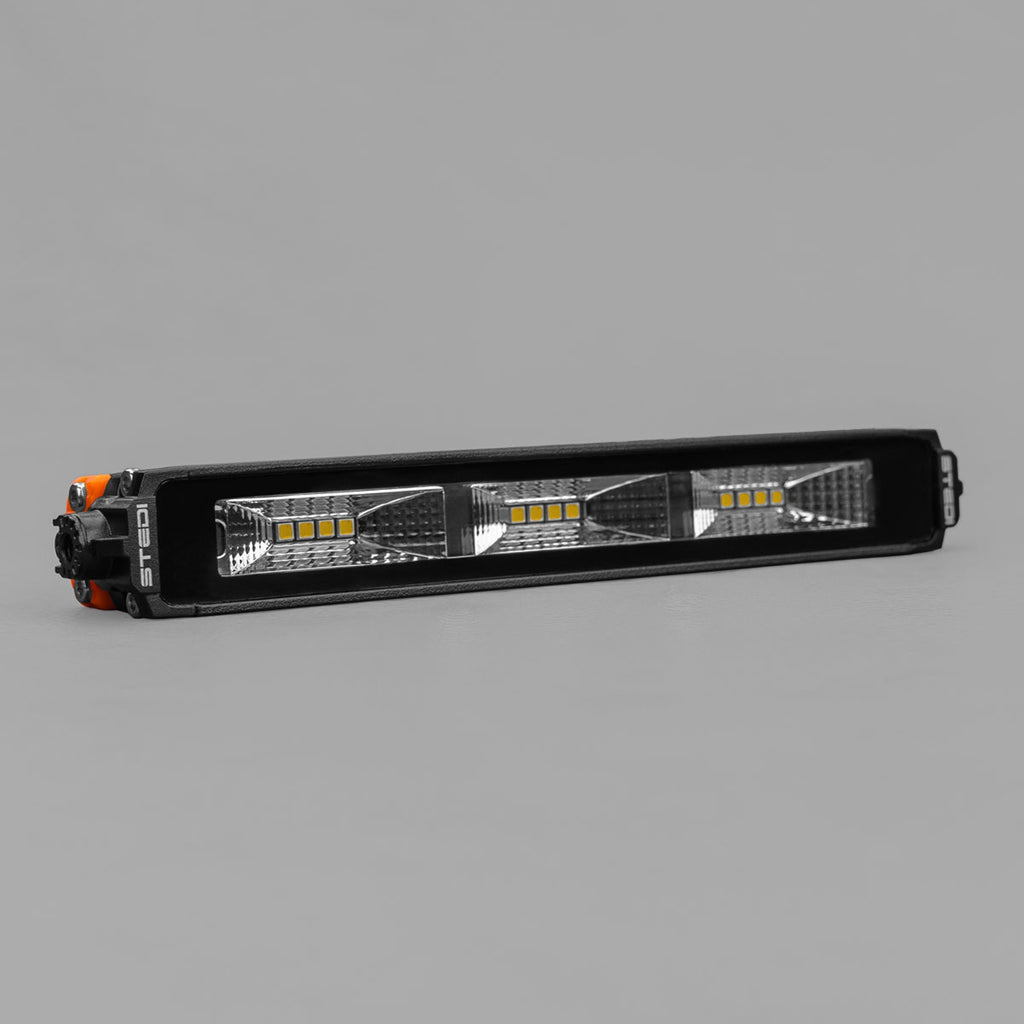

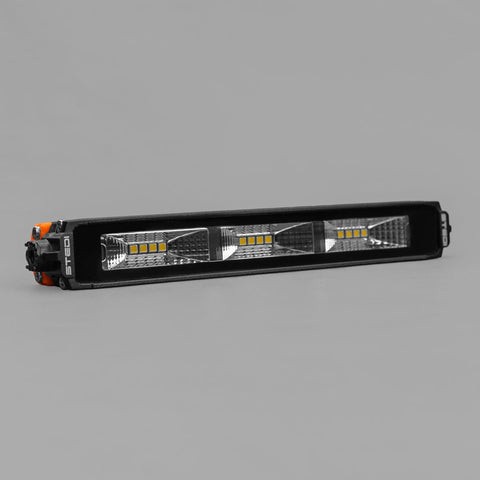

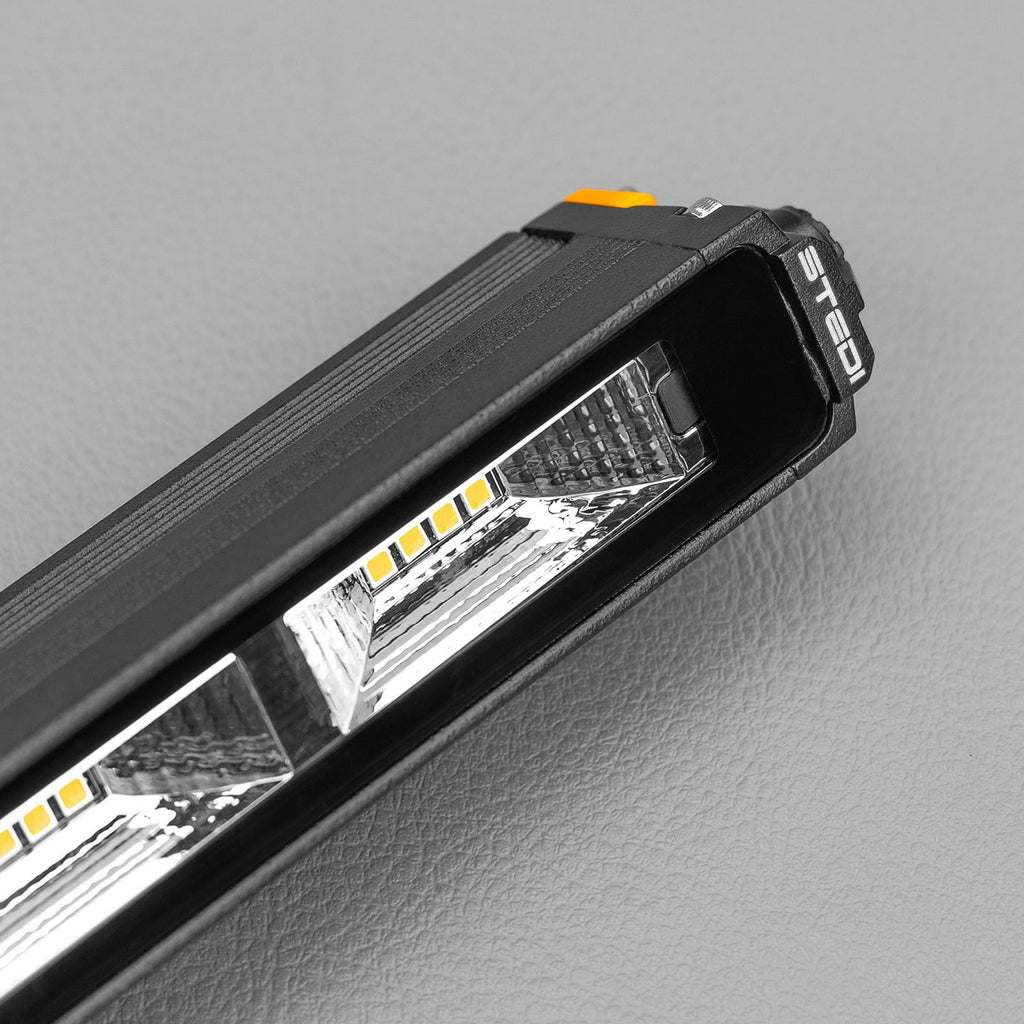

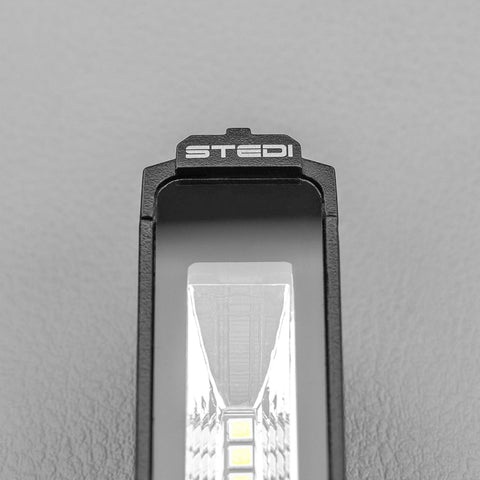

Our lowest profile LED Light bar with a total height of only 26mm is perfect for those looking for a combo beam but running tight on space or looking to keep the factory look to their vehicle. Available in 3 different sizes to fit any application, our ST3520 Micro is the easy choice when looking for that bit of extra light.
PERFORMANCE.
The ST3520 is the perfect addition to an already powerful lighting setup or just looking for something to bring some light over your standard headlights. Running a combo beam so even if it's the only bar you run on your vehicle you're provided with good spot and flood beam.
APPLICATION.
These little puppies have one of the widest fields of usable application as they are quite nimble and light weight meaning they can pretty much be mounted anywhere you need without needing to be heavily supported by the structure of the car weighing in at only 0.300kgs for the 7.3 inch bar.
MICRO FORM, HYPER FLOOD.
DUAL PERFORMANCE, DUAL FUNCTION.
Introducing the Micro Touch Marine, a cutting-edge innovation in maritime lighting. With just a simple touch, you can effortlessly customise your lighting preferences by switching between a crisp 5700K white light or a red diffused 650nm, along with a range of hues in between, thanks to our blending and dimming features.
EASY-FIT SOLUTION.

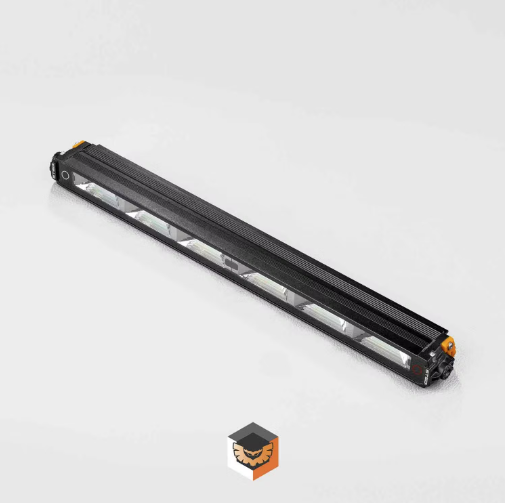

Our Micro Touch Marine 13.9" LED light is meticulously designed to seamlessly blend into both the interior and exterior of your boat, now featuring a new marine-grade paint coat that withstands the harshest ocean conditions.
THE NITTY
GRITTY.
KEY FEATURES AT A GLANCE
- IP67 Ingress Protection
- 6 x 3 Watt CREE LED
- Micro Profile at only 26mm
- Flood Beam - Perfect Rear Light, Awning Light or bumper or bull bar voids.

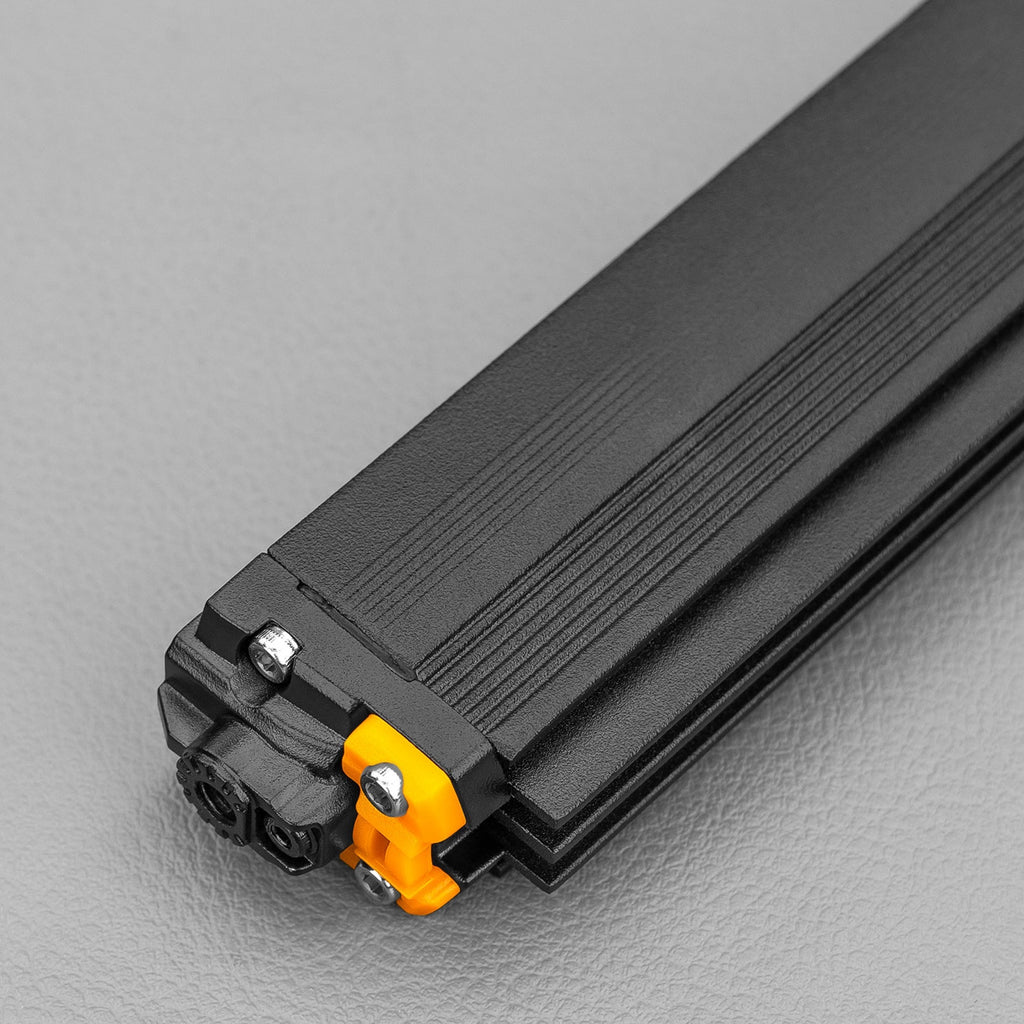

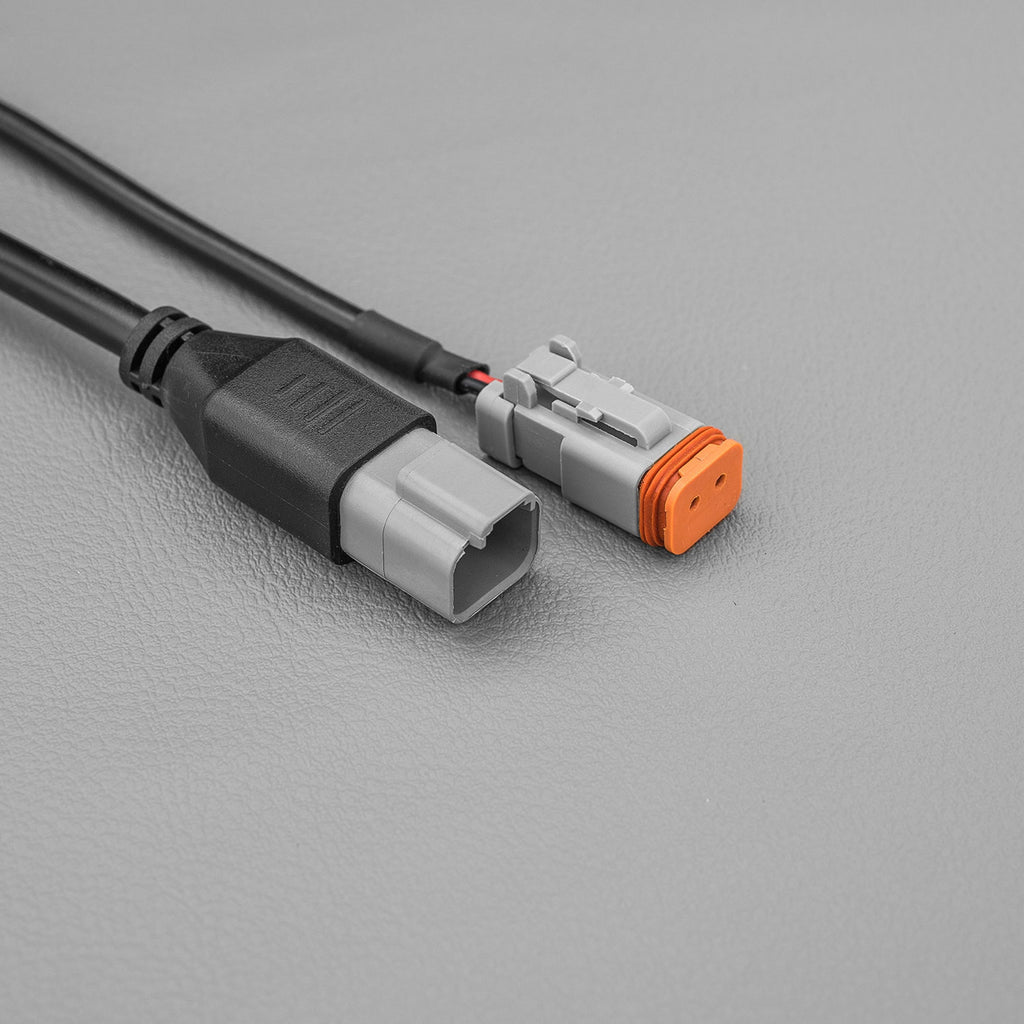

- Waterproof Deutsch Connectors Male and Female with wire tails
TECH SPECS 7.8"
| OPERATING VOLTAGE | DC 10-28V |
| POWER CONSUMPTION | 12W |
| AMP DRAW | 1A@12V/0.5A@24V |
| COLOUR TEMPERATURE | 2700K (Amber Version) / 5700K (White Version) |
| LED | 12 x OSRAM GW PSLR 32. PM DRUISS |
| EFFECTIVE LUMEN | 1400lm |

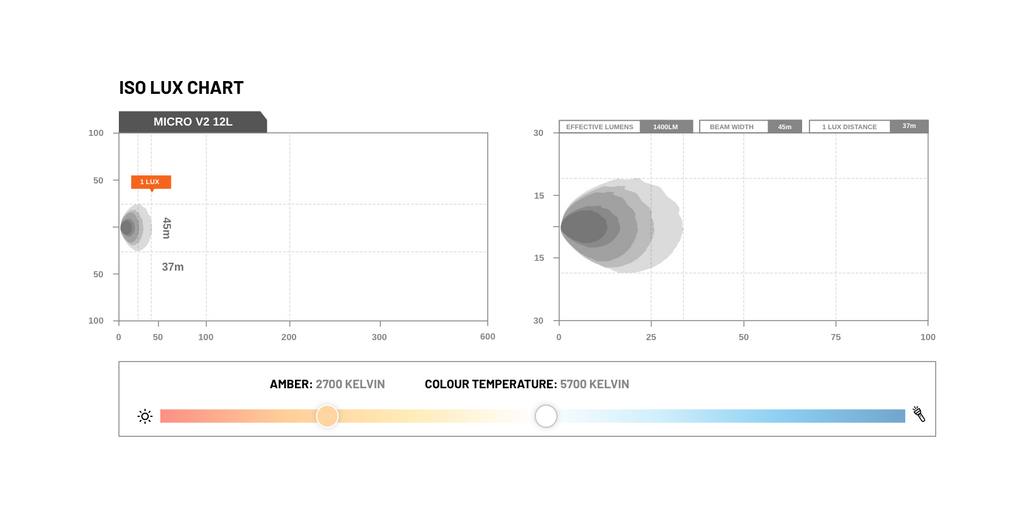

| BEAM ANGLE | Height: 30° Width: 120° |
| ENVIRONMENT TEMP | -40° to 60°C |
| IP RATING | IP68 |
| LENS | Polycarbonate with Surface Hardening |
| FRAME/HOUSING | Extruded Aluminium |
| DT CONNECTOR | Included |
| MOUNTING BRACKET | 304# Stainless Steel |
| LIFETIME | 30, 000hrs |
| SIZE (mm) | 197.8 x 25.9 x 40.6 |
| WEIGHT | 0.3kg |
| CABLE LEGTH | 400mm |
| CERTIFICATION |
CISPR25 |

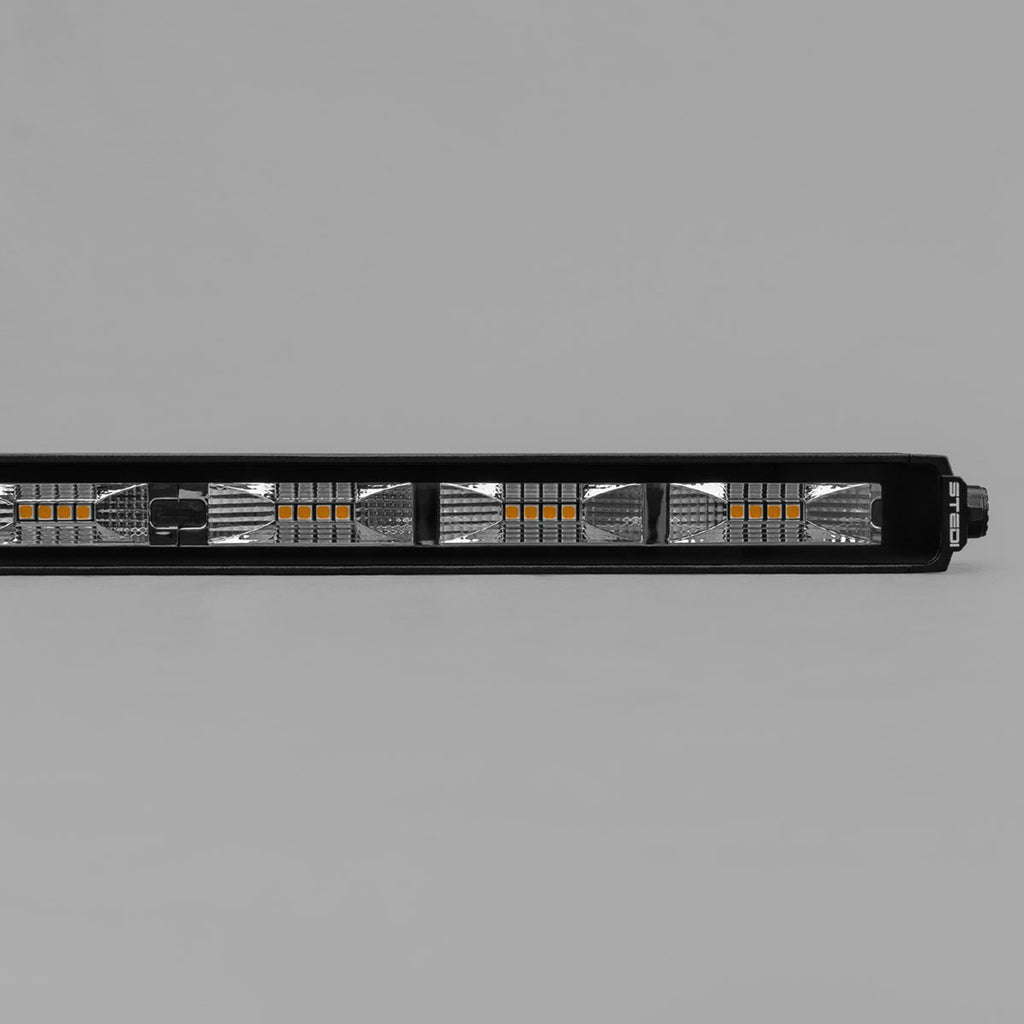

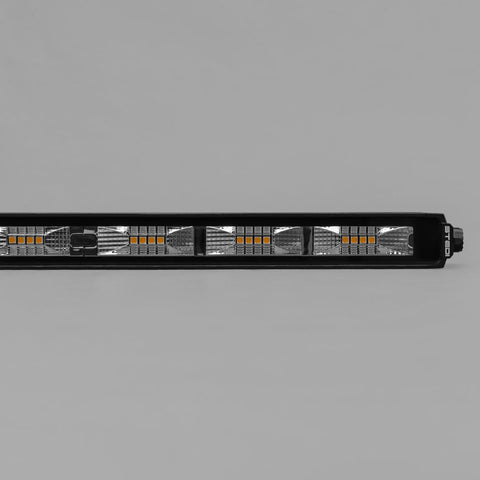

TECH SPECS 13.9"
| OPERATING VOLTAGE | DC 10-28V |
| POWER CONSUMPTION | 24W |
| AMP DRAW | 2A@12V/1A@24V |
| COLOUR TEMPERATURE | 2700K (Amber Version) / 5700K (White Version) |
| LED | 24 x OSRAM GW PSLR 32. PM DRUISS |
| EFFECTIVE LUMEN | 2600lm |
| BEAM ANGLE | Height: 30° Width: 120° |
| ENVIRONMENT TEMP | -40° to 60°C |
| IP RATING | IP68 |
| LENS | Polycarbonate with Surface Hardening |
| FRAME/HOUSING | Extruded Aluminium |
| DT CONNECTOR | Included |
| MOUNTING BRACKET | 304# Stainless Steel |
| LIFETIME | 30, 000hrs |
| SIZE (mm) | 353 x 25 x 40.6 |
| WEIGHT | 0.5kg |
| CABLE LEGTH | 400mm |
| CERTIFICATION | CISPR25 |

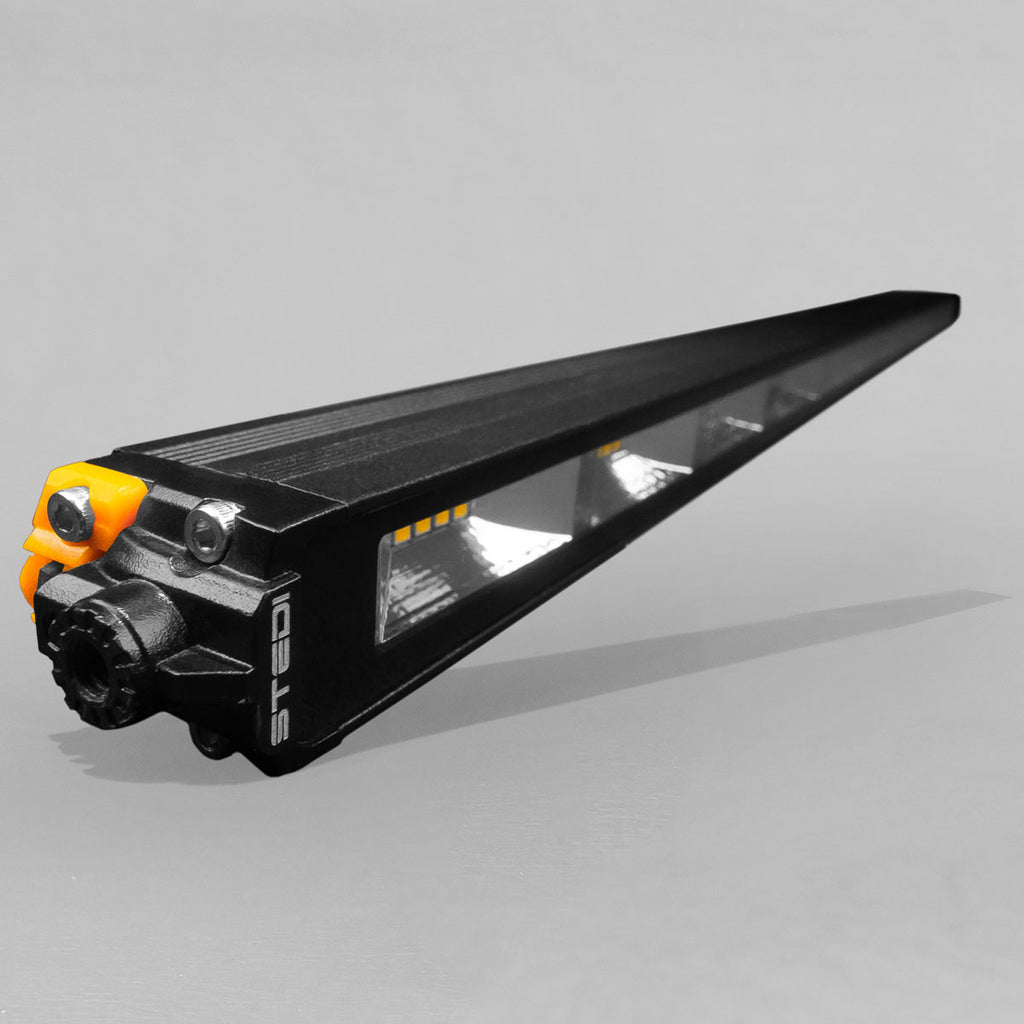

TECH SPECS 26"
| OPERATING VOLTAGE | DC 10-28V |
| POWER CONSUMPTION | 48W |
| AMP DRAW | 4A@12V or 2.0A@24V |
| COLOUR TEMPERATURE | 2700K / 5700K |
| LED | 48 x OSRAM GW PSLR 32. PM DRUISS |
| EFFECTIVE LUMEN | 2600lm |
| BEAM ANGLE | Height: 30° Width: 120° |
| ENVIRONMENT TEMP | -40° to 60°C |
| IP RATING | IP68 |
| LENS | Polycarbonate with Surface Hardening |
| FRAME/HOUSING | Extruded Aluminium |
| DT CONNECTOR | Included |
| MOUNTING BRACKET | 304# Stainless Steel |
| LIFETIME | 30,000hrs |
| SIZE (mm) | 665 x 25 x 15 |
| WEIGHT | 0.8kg |
| CABLE LENGTH | 400mm |
| CERTIFICATION | CISPR25 |

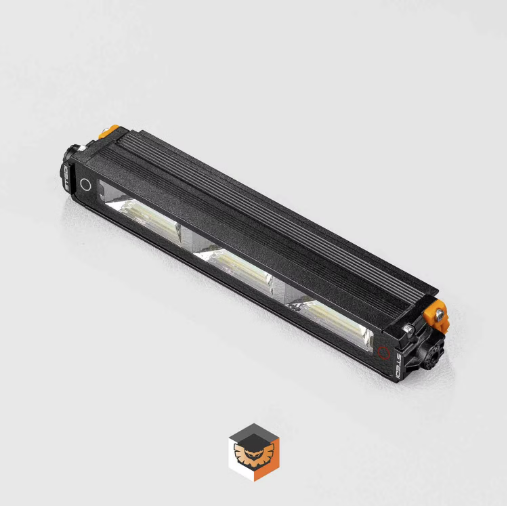

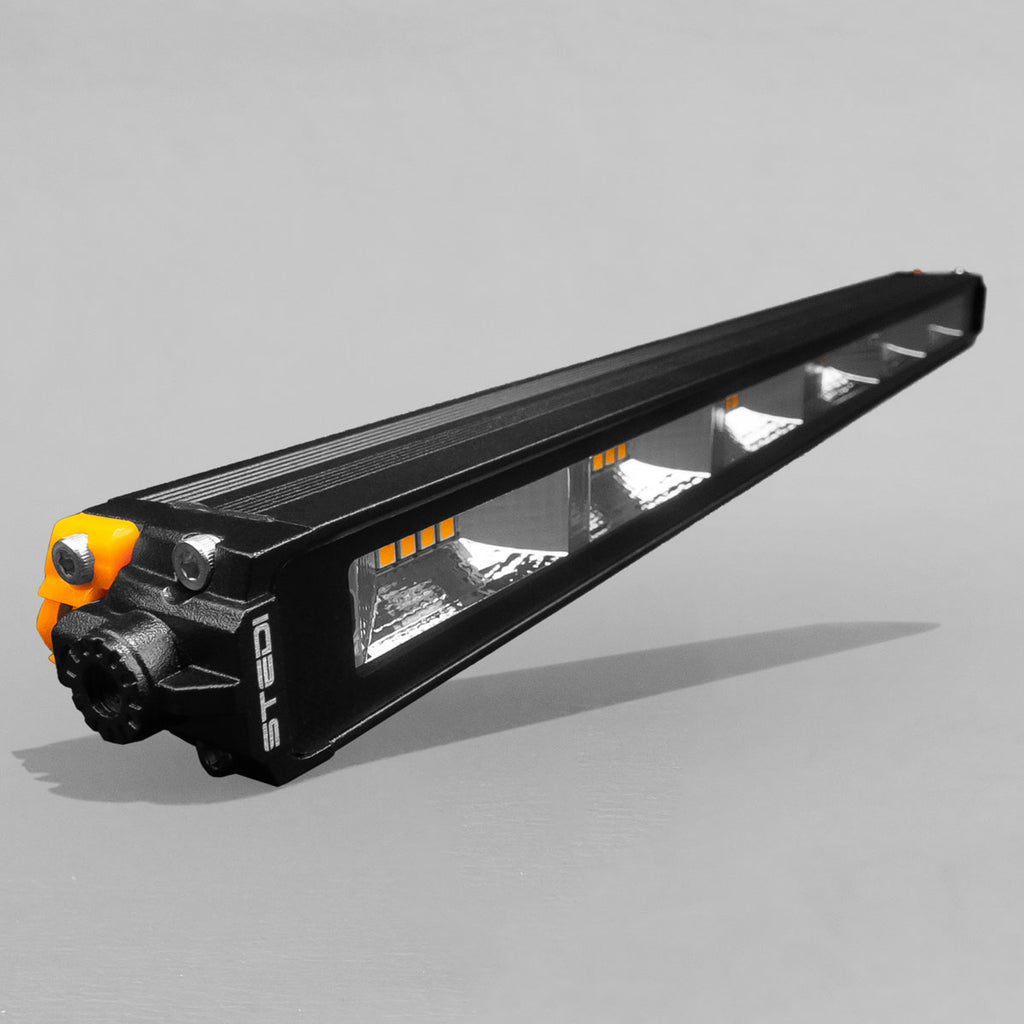

Touch Series (Dual Colour)
DUAL PERFORMANCE, DUAL FUNCTION.
We’ve taken our popular Micro LED Lights to the next level, adding a dual colour blend between a pure white (5700K) and an inviting warm amber (1500K) at the simple touch of your fintertips. Meaning you can choose between either colour or blend the two to create your own mood. Did we mention the smooth dimming feature? This adds a layer of versatility to your lighting game.
MICRO FORM, MEGA PERFORMANCE.
Despite its small smize and weight (0.3kg), this beauty offers endless possibilities. With the ability to fit into the tightest of spaces, you will be kept occupied with application opportunities.
ROOF RACK COMPANION.
We love ours fitted to the underside of our roof rack platform. Rhino-Rack, Rola, ARB Base or Frontrunner - checkout our optional mounting brackets in the suggested items below.
The nitty
gritty.
We’ve taken our popular Micro LED Lights to the next level, adding a dual colour blend between a pure white (5700K) and an inviting warm amber (1500K) at the simple touch of your fingertips. Meaning you can choose between either colour or blend the two to create your own mood. Did we mention the smooth dimming feature? This adds a layer of versatility to your lighting game. Despite its small size and weight (0.3kg), this beauty offers endless possibilities. With the ability to fit into the tightest of spaces, you will be kept occupied with application opportunities. We love ours fitted to the underside of our roof rack platform. Rhino-Rack, Rola, ARB Base or Frontrunner - checkout our optional mounting brackets in the suggested items below.
Please Note: The 7.8" Micro Touch Dual Colour is compatible, exclusively with our Micro 7.8" Roof Rack Bracket.
Tech Specs
| OPERATING VOLTAGE | DC 10-28V |
| POWER CONSUMPTION | 12W |
| AMP DRAW | 1.15A@12V/0.57A@24V |
| COLOUR TEMPERATURE | 1500K - 5700K |
| LED | 6 x 5700K | 6 x 1500K |
| EFFECTIVE LUMEN | 1,323 lm |
| BEAM ANGLE | Height: 30° Width: 120° |
| ENVIRONMENT TEMP | -40°C to 60°C |
| IP RATING | IP68 |
| LENS | Polycarbonate with Surface Hardening |
| FRAME/HOUSING | Extruded Aluminium |
| DT CONNECTOR | Included |
| MOUNTING BRACKET | 304# Stainless Steel |
| LIFETIME | 30,000hrs |
| SIZE (mm) | 197.8 x 25.9 x 40.6 |
| WEIGHT | 0.3kg |
| CABLE LENGTH | 400mm |
| CERTIFICATION | CISPR25 |

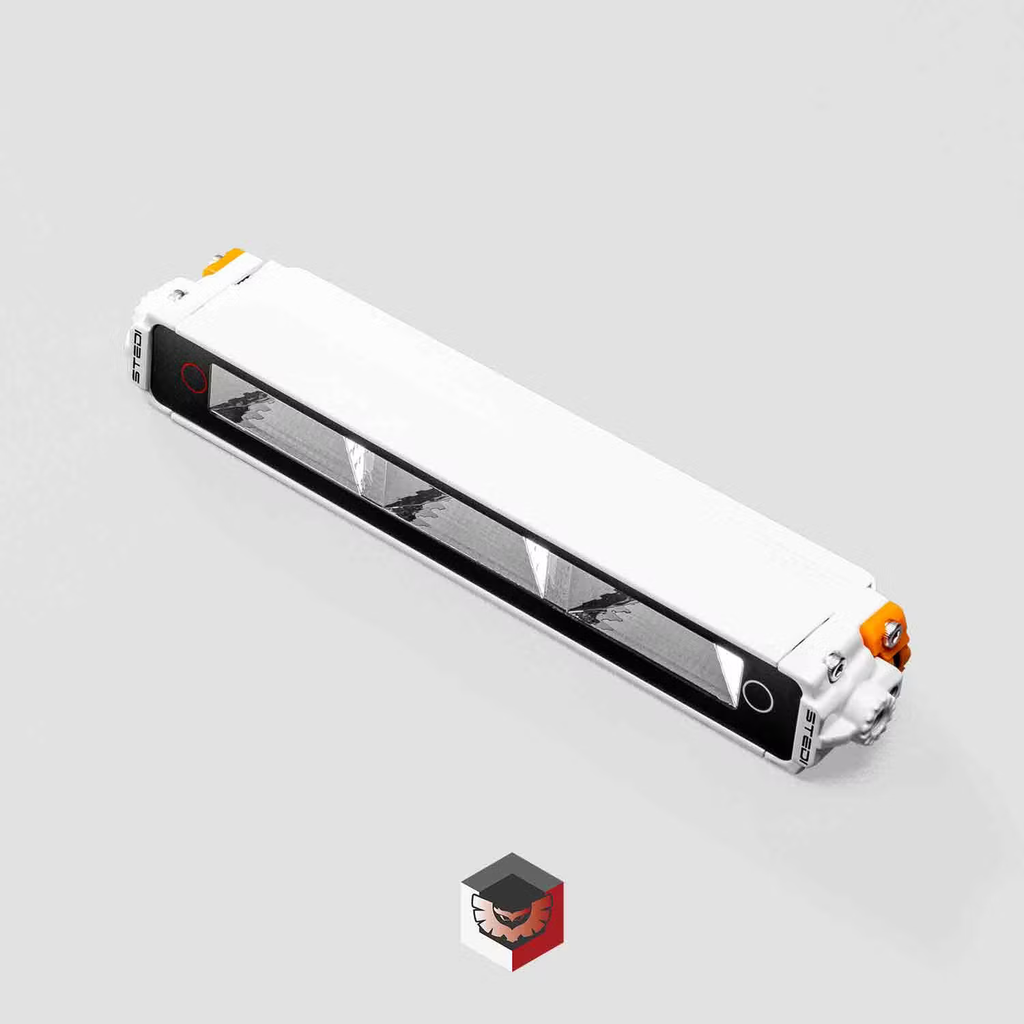

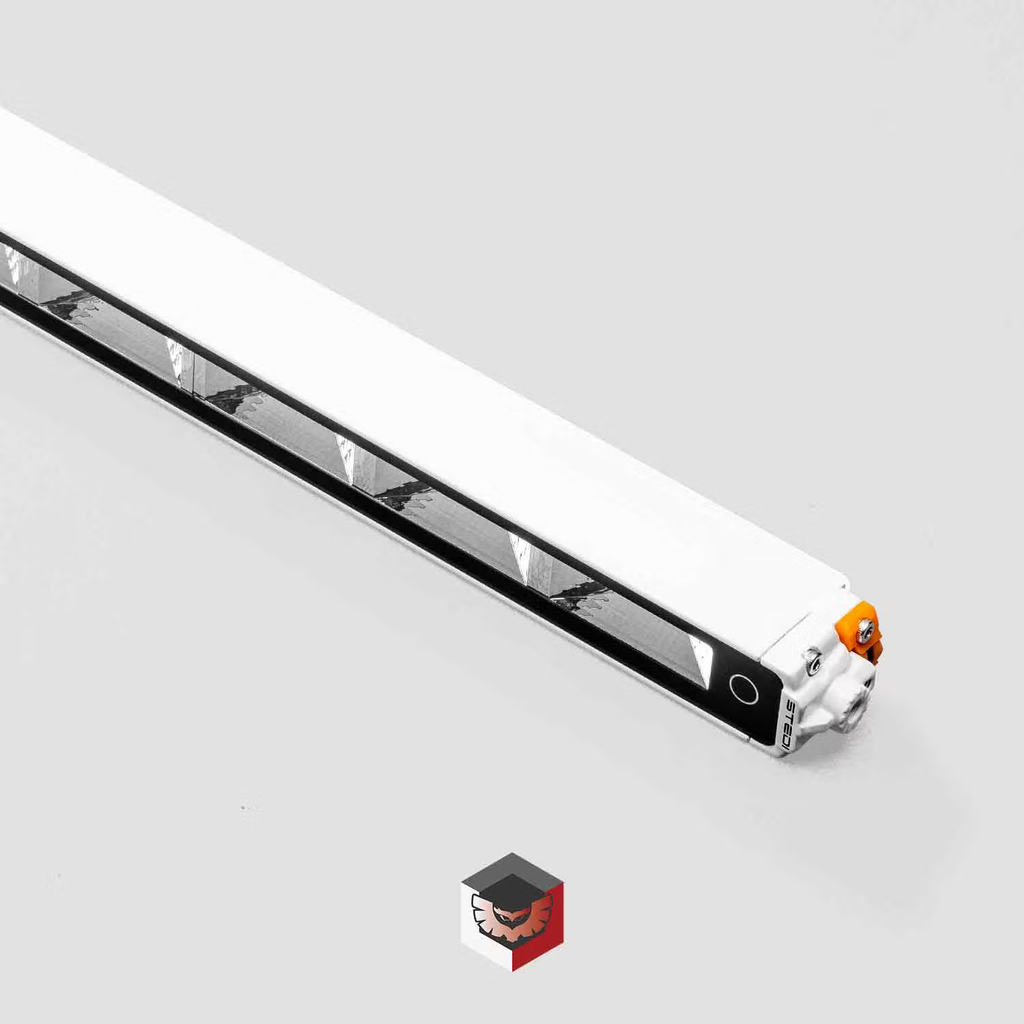

Marine Series - Touch Dual Colour (White/Red)
The nitty
gritty.
Introducing the Micro Touch Marine — a cutting-edge innovation in maritime lighting. With just a simple touch, you can effortlessly customise your lighting preferences by switching between a crisp 5700K white light or a red diffused 650nm, along with a range of hues in between, thanks to our blending and dimming features.
Despite its compact size and lightweight design (0.3kg), the Micro Touch Marine offers limitless installation possibilities. It fits perfectly into even the tightest spaces, making it ideal for a wide array of marine applications. Our Micro Touch Marine LED light is meticulously designed to seamlessly blend into both the interior and exterior of your boat, now featuring a new marine-grade paint coat that withstands the harshest ocean conditions.
Tech Specs - 13"
| OPERATING VOLTAGE | DC 10-30V |
| POWER CONSUMPTION | 24W |
| AMP DRAW | 1.15A@12V / 0.57A@24V (Both) |
| COLOUR TEMPERATURE | 650nm - 5700K |
| LED | 12 x OSRAM S5 LEDs |
| EFFECTIVE LUMEN | 863 lm |
| BEAM ANGLE | Height: 30° Width: 120° |
| ENVIRONMENT TEMP | -40°C to 60°C |
| IP RATING | IP68 |
| LENS | Polycarbonate with Surface Hardening |
| FRAME/HOUSING | Extruded Aluminium |
| DT CONNECTOR | Included |
| MOUNTING BRACKET | 304# Stainless Steel |
| LIFETIME | 30,000hrs |
| SIZE (mm) | 197.8 x 26.3 x 39.2 |
| WEIGHT | 0.3kg |
| CABLE LENGTH | 400mm |
| CERTIFICATION | CISPR25 |
Tech Specs - 7"
| OPERATING VOLTAGE | DC 10-30V |
| POWER CONSUMPTION | 12W |
| AMP DRAW | 1.15A@12V / 0.57A@24V (Both) |
| COLOUR TEMPERATURE | 650nm - 5700K |
| LED | 12 x OSRAM S5 LEDs |
| EFFECTIVE LUMEN | 863 lm |
| BEAM ANGLE | Height: 30° Width: 120° |
| ENVIRONMENT TEMP | -40°C to 60°C |
| IP RATING | IP68 |
| LENS | Polycarbonate with Surface Hardening |
| FRAME/HOUSING | Extruded Aluminium |
| DT CONNECTOR | Included |
| MOUNTING BRACKET | 304# Stainless Steel |
| LIFETIME | 30,000hrs |
| SIZE (mm) | 197.8 x 26.3 x 39.2 |
| WEIGHT | 0.3kg |
| CABLE LENGTH | 400mm |
| CERTIFICATION | CISPR25 |
WHAT'S INCLUDED
- 1 x Micro V2 LED Work Light (user selected size and color)

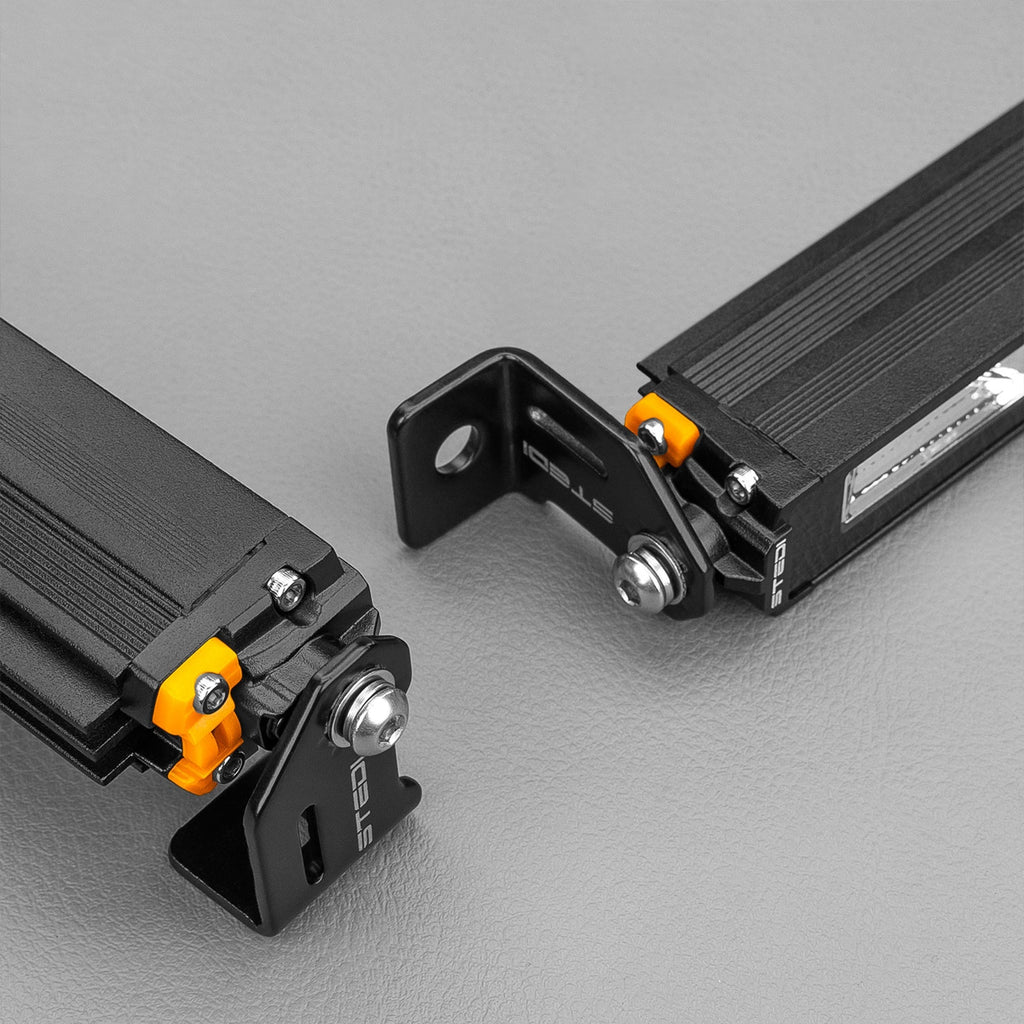

- 2 x 46mm Side Brackets
- 2 x M8 Bolts
- 2 x M6 Bolts
- 2 x Nuts
- 4 x Flat Washer
- 4 x Spring Washer
- Male & Female Deutsch Connectors
