Brackets only! Comes in a pair, you will need:
1x Next gen Bracket set (raptor or ranger/everest uses different barckets)
2x ST3303 11” Lightbars
1x Next Gen Ranger/Everest High Beam Piggy back adapter
NEXT-GEN COVERED.

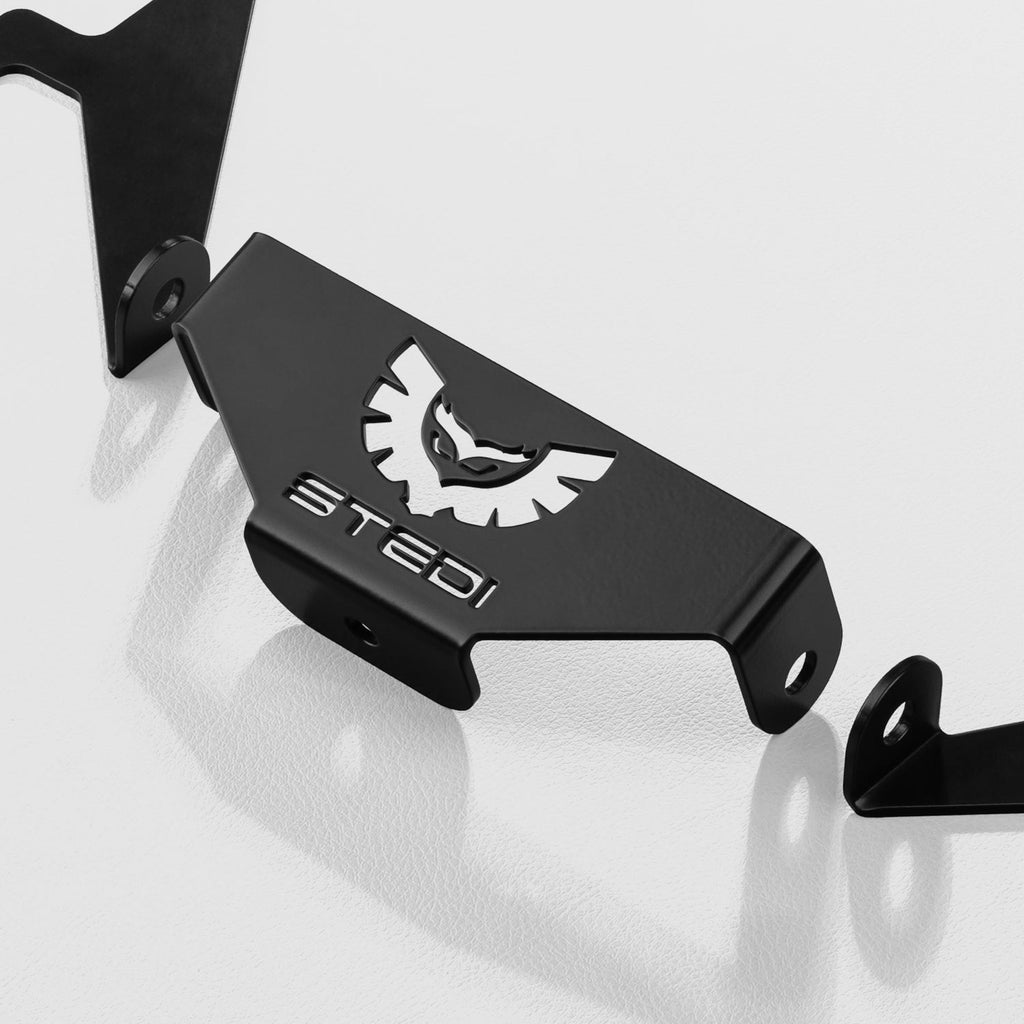

Our Inner Grille Bracket has been carefully designed to suit Ford's next-gen line up of the Ranger RAPTOR Models , catering to 2 of our performance-packed 11" ST3303 Pro LED Light Bars.
LINGERING IN THE DARKNESS.
Hidden neatly behind the factory grille, our Inner Grille Bracket will preserve the OEM finish that you ever so desire, whilst the pair of ST3303 Pro Light Bars will be sure to make their presence known at night, throwing an abundance of light at the road ahead.
CHANGE ISN’T ALWAYS A GOOD THING.
The simple, modification-free install of our Inner Grille Bracket is designed not to obstruct any factory collision & safety sensors, meaning no sparks need to fly and the OE factory warranty remains intact.
THE NITTY
GRITTY.
Designed to fit all Ford Next-Gen Ranger-Raptor models ONLY!
Does not fit Ford Ranger or Everest models, please see our Next-Gen Ranger Everest Inner Grill Bundle for these models.

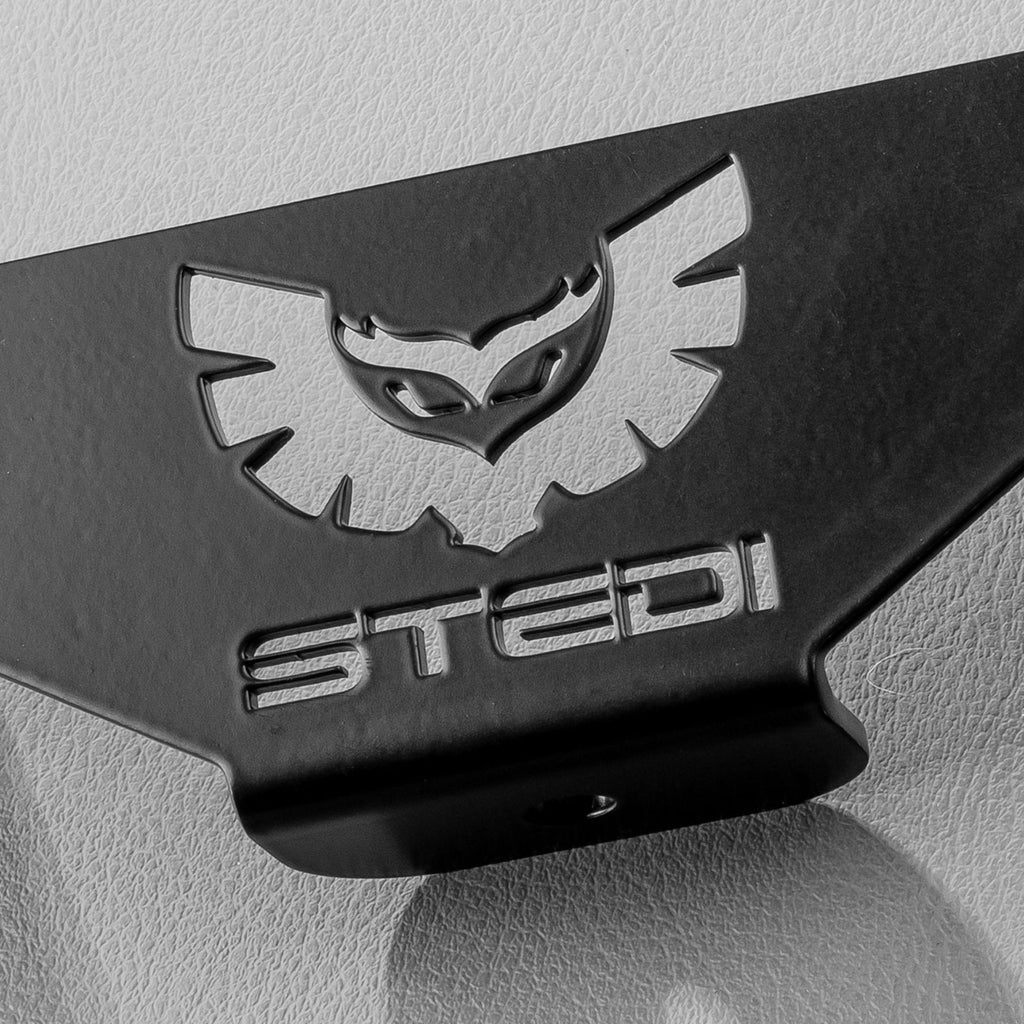

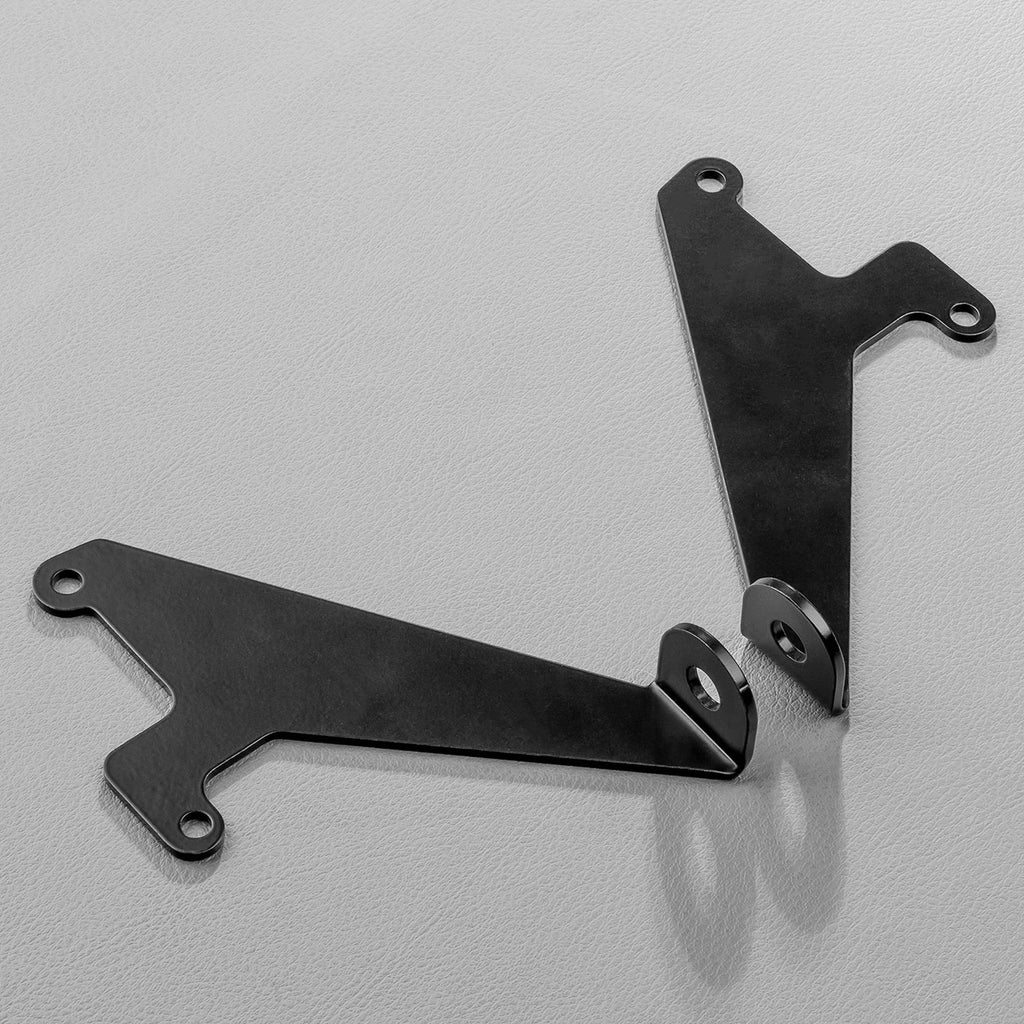

Manufactured with 3mm Stainless Steel, and designed to be fastened to pre-existing holes which are already present on the inner side of the front grille. This is a completely non-intrusive install meaning that no new holes need to be made, nor do sections of the front bumper need any cutting or modifying.
The end result is a very robust, stealth installation.
- Stainless Steel
- Designed to minimize disruption of air-flow
- No need to remove front bumper
- Bolts to pre-existing holes
- No drilling required, bolt and nut kit included
ST3303 11" LIGHTBAR TECH SPECS
| LED | 12 x CREE XPL Hi-Intensity LED (Each) |
| VOLTAGE | 9V - 32V |
| CURRENT DRAW (AMPERES) | 5.9a @ 13.6v (each) |
| RAW LUMENS | 13,140Lm (each) |
| EFFECTIVE LUMENS | 6,720Lm (each) |
| PEAK INTENSITY (CANDELA) | 360,800cd (each) |
| COLOUR TEMP (CCT) | 5700K |
| LENS MATERIAL | Optical Grade, Hard-Coated Lexan |
| HOUSING MATERIAL | A360.0 Cast face plate, extruded Aluminum heat sink |
| INGRESS PROTECTION | IP68 |
| FLOOD BEAM | 50° |
| SPOT BEAM | 9° |
| LIFESPAN | 50,000hrs |
| OPERATING TEMP | -40°C ~ +150°C |
| TOTAL WEIGHT | 3,295kg |

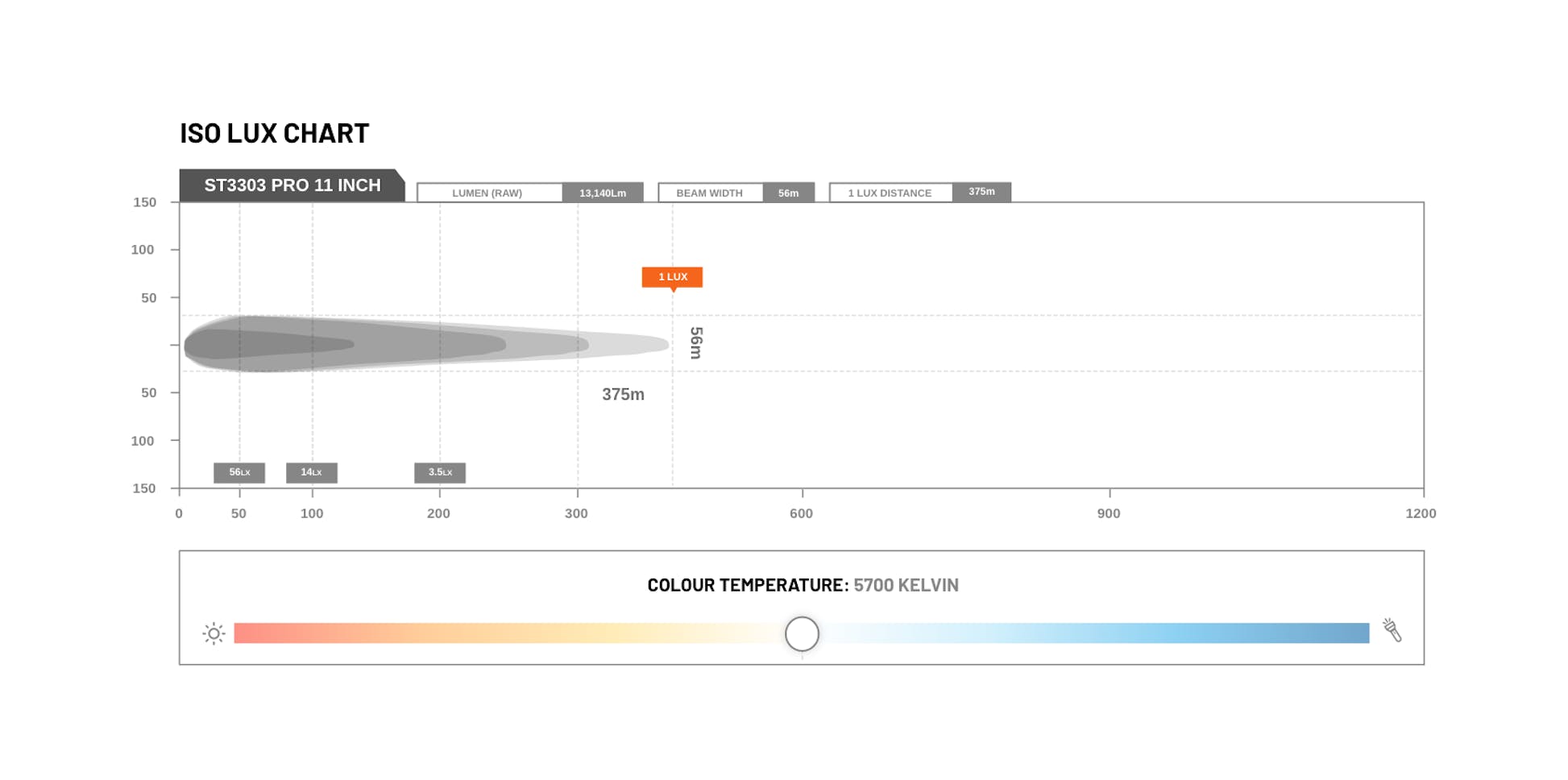

Single ST3303 11" Lux Chart: (dual lights will provide 650m @1Lux)
WHAT'S INCLUDED
-
1x Inner Grille Bracket to suit Ford Next-Gen Ranger Raptor Set (2x Brackets)
