STEDI ST3303 Pro 18.4" Double Row Ultra High Output LED Bar

  • Sale
  • Regular price R 9,999.00
  • Sold Out
Tax included. Shipping calculated at checkout.






THE ULTIMATE LIGHT BAR

For almost a decade, the name STEDI has stood for cutting-edge design and market-leading performance.  The ST3303-PRO is an aggregation of all things that have made us the globally distributed, coveted brand born right here in Australia.

Unquestionably, ST3303 PRO sits at the pinnacle of the STEDI offering. A pure expression of capability and design that converges with brutal performance, making the all-new ST3303 PRO unmistakably STEDI.







A NEW REALM OF PERFORMANCE

Every good story starts with CREE LEDs. So, we commissioned CREE’s XPL HI emitter, which represents a +9% increase in lumen output at the same drive current over the already great (but now aging) CREE XM-L2 found in the previous model. 9% doesn’t sound like much, but the kicker is that the emitter die size drops down from 5 x 5mm to 3.5 x 3.5mm. Higher lumen density with tighter source improves the optic and emitter size relationship – We’ve effectively increased the optic diameter by 40% without physically increasing it. The result is huge light volume and tremendous beam throw.





NOW, ARE YOU SITTING DOWN?

Where others stop, we get started. The current draw is enormous, and quite literally unlike anything else on the market. The 60 LED variant draws 36 amp at 13.6v & @ 12.5v 40 amp. Have we got your attention yet? Now, you must, without any exception, we repeat, you must use the heavy-duty, dual relay (yes dual relay!), dual fused wiring harness we supply. The current is so intense, the 40 LED and 60 LED bars have two separate power cables (yes two separate power cables!) on either side of the light bar, and two separate breathers (yep two!) to deal with the enormous current draw.





BAR NONE.

Unquestionably, ST3303 PRO sits at the pinnacle of the STEDI offering. A pure expression of capability and design that converges with brutal performance, making the all-new ST3303 PRO unmistakably STEDI.







THE NITTY
GRITTY.

  • Registered Design: 201915829.
  • CREE® XLamp XP-L HI undomed LEDs using CREE’s breakthrough SC5 Technology™
  • RFI and EMI suppression circuit. Guaranteed to not interfere with Radio or GPS Equipment
  • IP68 - Submersible to 3m

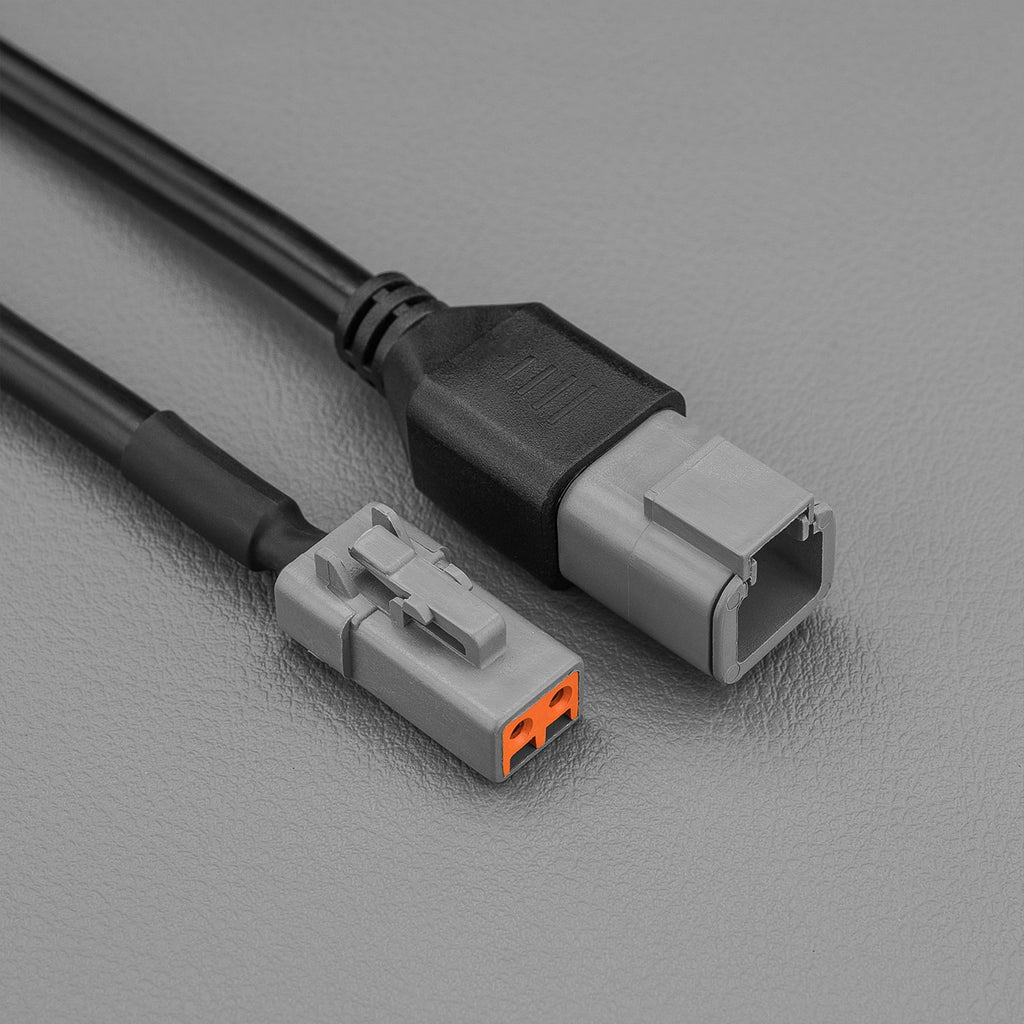

  • Single High Current Deutsch DTP-2 25A connector

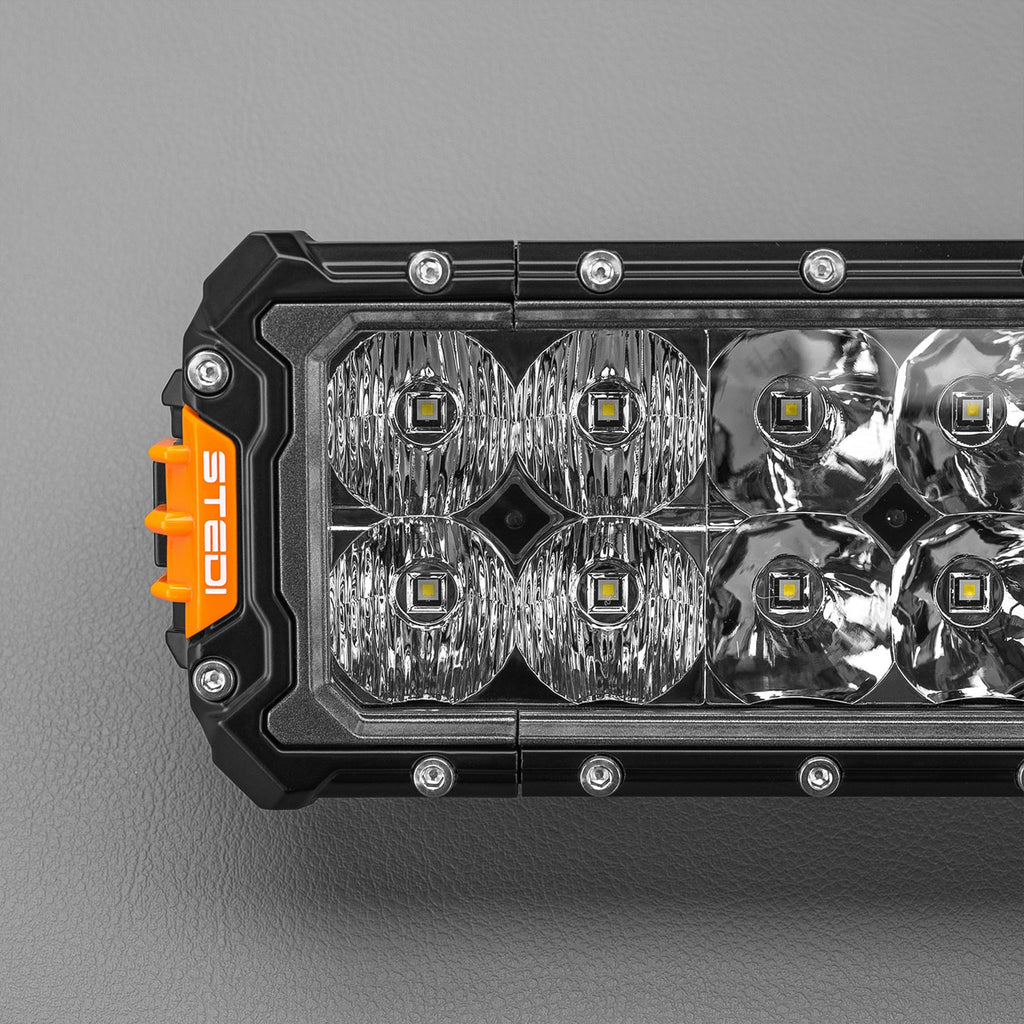

  • 32mm diameter parabolic reflectors
  • Spread and Spot beam pattern

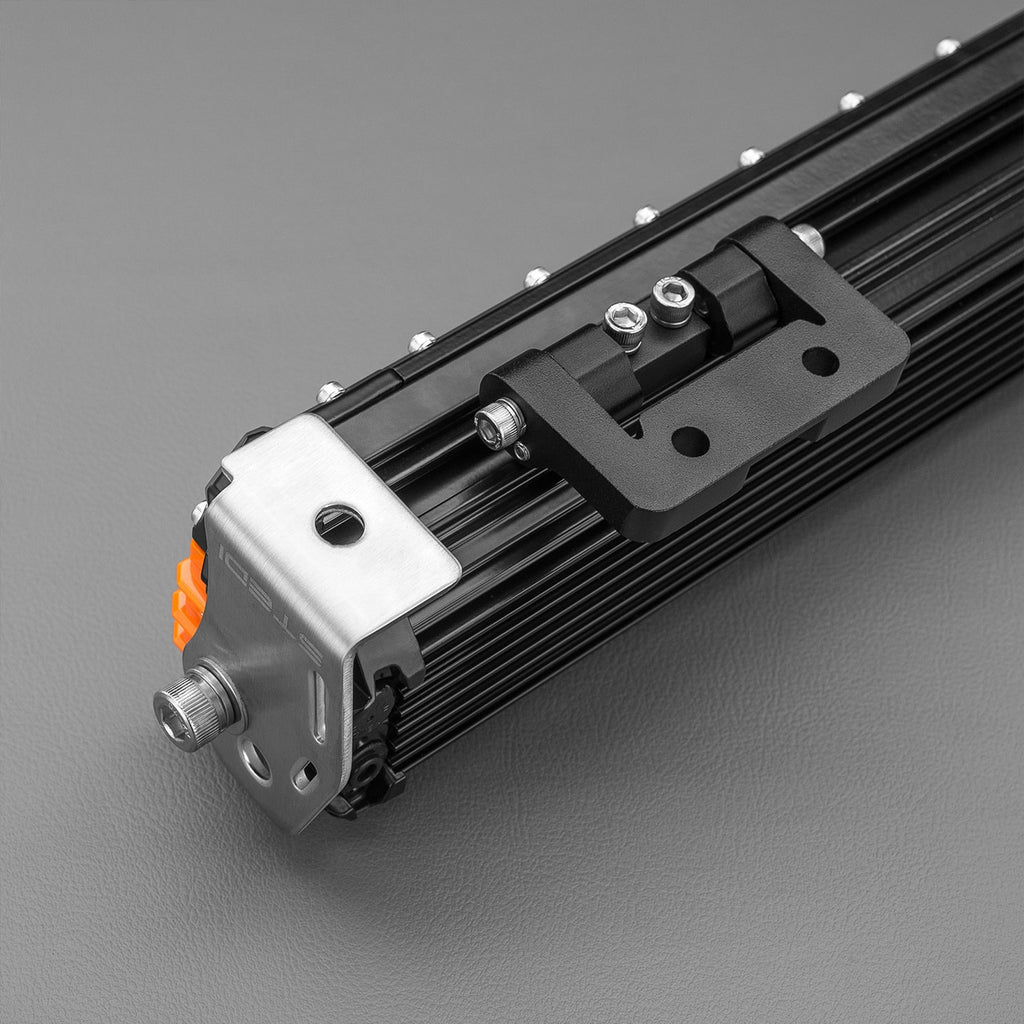

  • 4mm thick 304 stainless steel side brackets included.
  • Cast Alloy adjustable sliding bracket included.

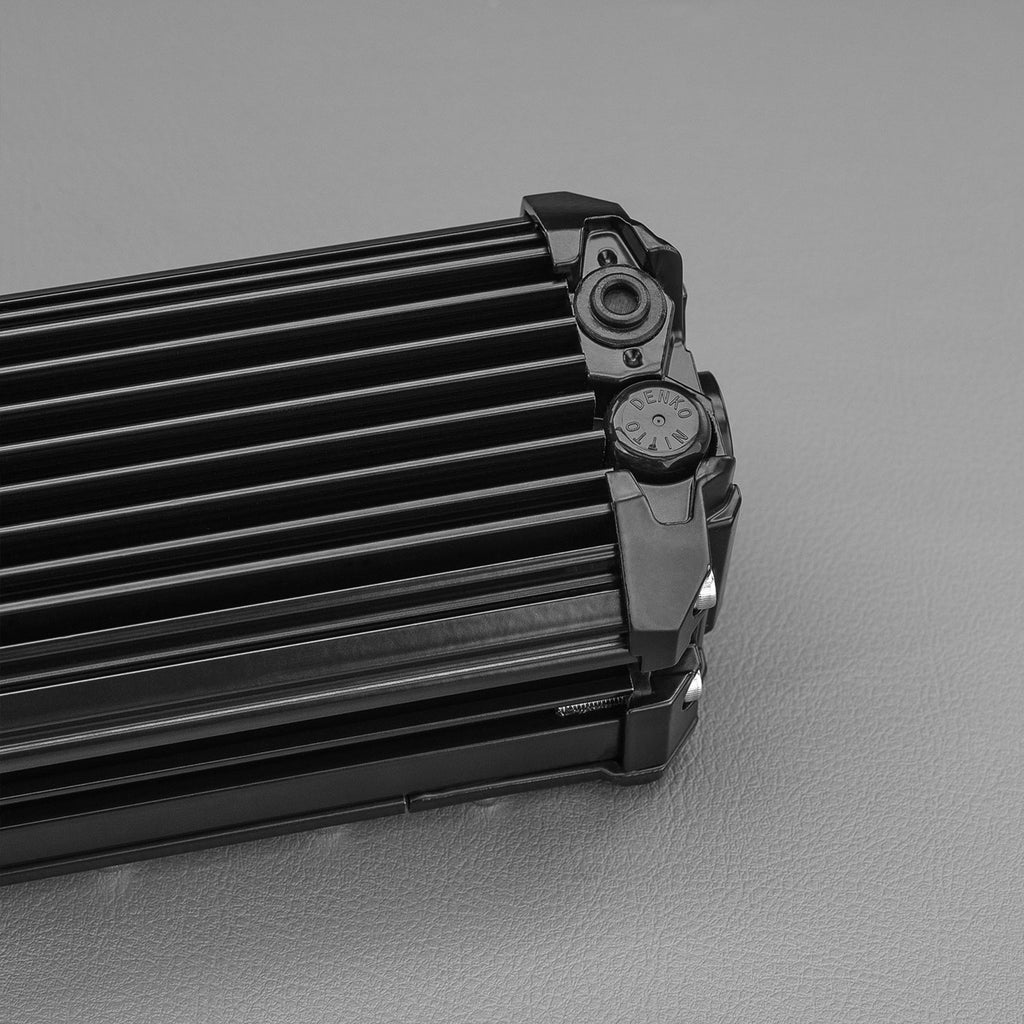

  • Nitto Denko™ Breather with PTFE microporous membrane

Very heavy-duty Smart Plug & Play ADR compliant Wiring Harness. (Switch, Dual Fuse, Dual Relay and HB3 and H4 Piggyback Adaptors) include

Registered Design: 201915829

TECH SPECS

LED Manufacturer CREE XPL Hi
LED COUNT 24
VOLTAGE 9V - 32V
CURRENT DRAW (AMPERES) 11.9a @13.6v
LENS MATERIAL OPTICAL GRADE, HARD COATED LEXAN
RAW LUMENS 26,280Lm
EFFECTIVE LUMENS 13,440Lm
PEAK INTENSITY (CANDELA) 435,600cd
HOUSING MATERIAL A360.0 Cast face plate, extruded Aluminum heat sink
LIFESPAN 50,000
FLOOD BEAM 50°
SPOT BEAM 9°
INGRESS PROTECTION IP68
OPERATING TEMP -40C ~ +150C
WEIGHT 2.250kg





WHAT'S INCLUDED

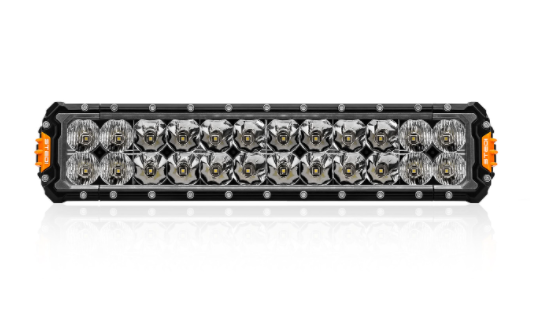

  • ST3303 PRO 24 LED 18.4 Inch Light Bar
  • Easy Fit High Beam Wiring Harness with H4 & HB3 adapters to High Beam
  • 2 x Lower Mountings Brackets with Stainless Steel Fasteners
  • 2 x 4mm thick Stainless Steel Brackets

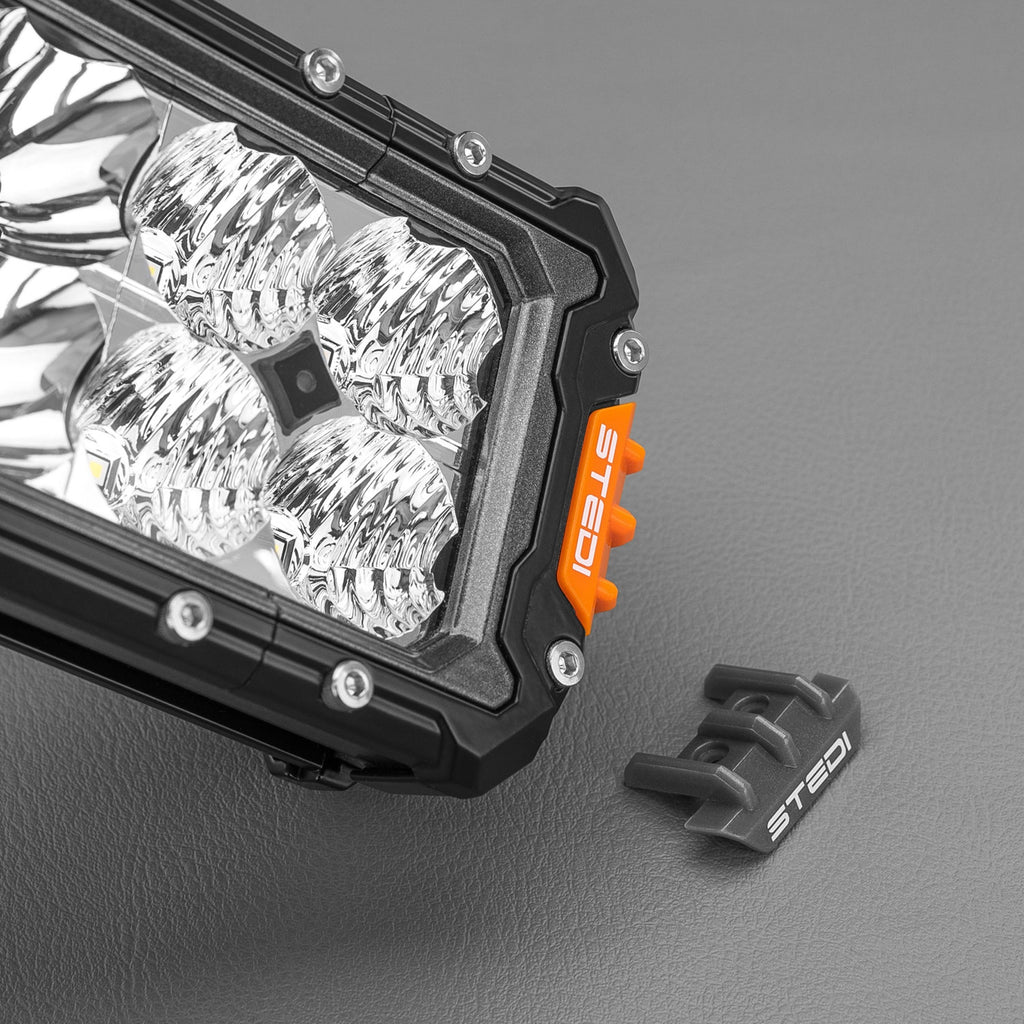

  • 2 x Orange End Caps
  • 2 x Grey End Caps
