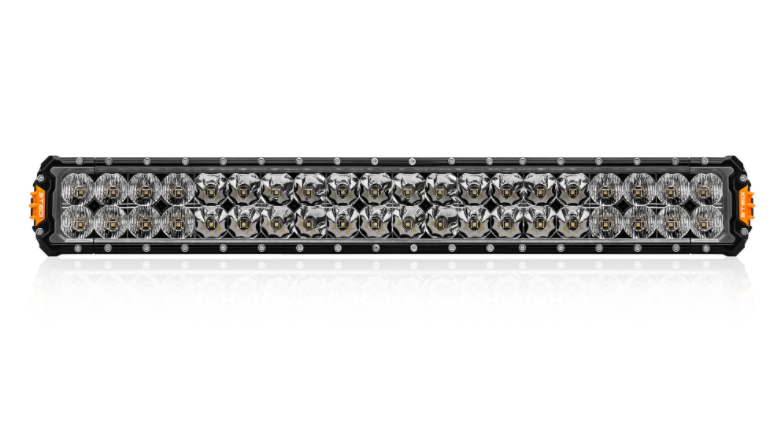

STEDI ST3303 Pro 28.2" Double Row Ultra High Output LED Bar

  • Sale
  • Regular price R 14,999.00
  • Sold Out
Tax included. Shipping calculated at checkout.






THE ULTIMATE LIGHT BAR

For almost a decade, the name STEDI has stood for cutting-edge design and market-leading performance.  The ST3303-PRO is an aggregation of all things that have made us the globally distributed, coveted brand born right here in Australia.

Unquestionably, ST3303 PRO sits at the pinnacle of the STEDI offering. A pure expression of capability and design that converges with brutal performance, making the all-new ST3303 PRO unmistakably STEDI.







A NEW REALM OF PERFORMANCE

Every good story starts with CREE LEDs. So, we commissioned CREE’s XPL HI emitter, which represents a +9% increase in lumen output at the same drive current over the already great (but now aging) CREE XM-L2 found in the previous model. 9% doesn’t sound like much, but the kicker is that the emitter die size drops down from 5 x 5mm to 3.5 x 3.5mm. Higher lumen density with tighter source improves the optic and emitter size relationship – We’ve effectively increased the optic diameter by 40% without physically increasing it. The result is huge light volume and tremendous beam throw.








BAR NONE.

Unquestionably, ST3303 PRO sits at the pinnacle of the STEDI offering. A pure expression of capability and design that converges with brutal performance, making the all-new ST3303 PRO unmistakably STEDI.



THE NITTY
GRITTY.

KEY FEATURES

  • Registered Design: 201915829.
  • CREE® XLamp XP-L HI undomed LEDs using CREE’s breakthrough SC5 Technology™
  • RFI and EMI suppression circuit. Guaranteed to not interfere with Radio or GPS Equipment

  • IP68 - Submersible to 3m

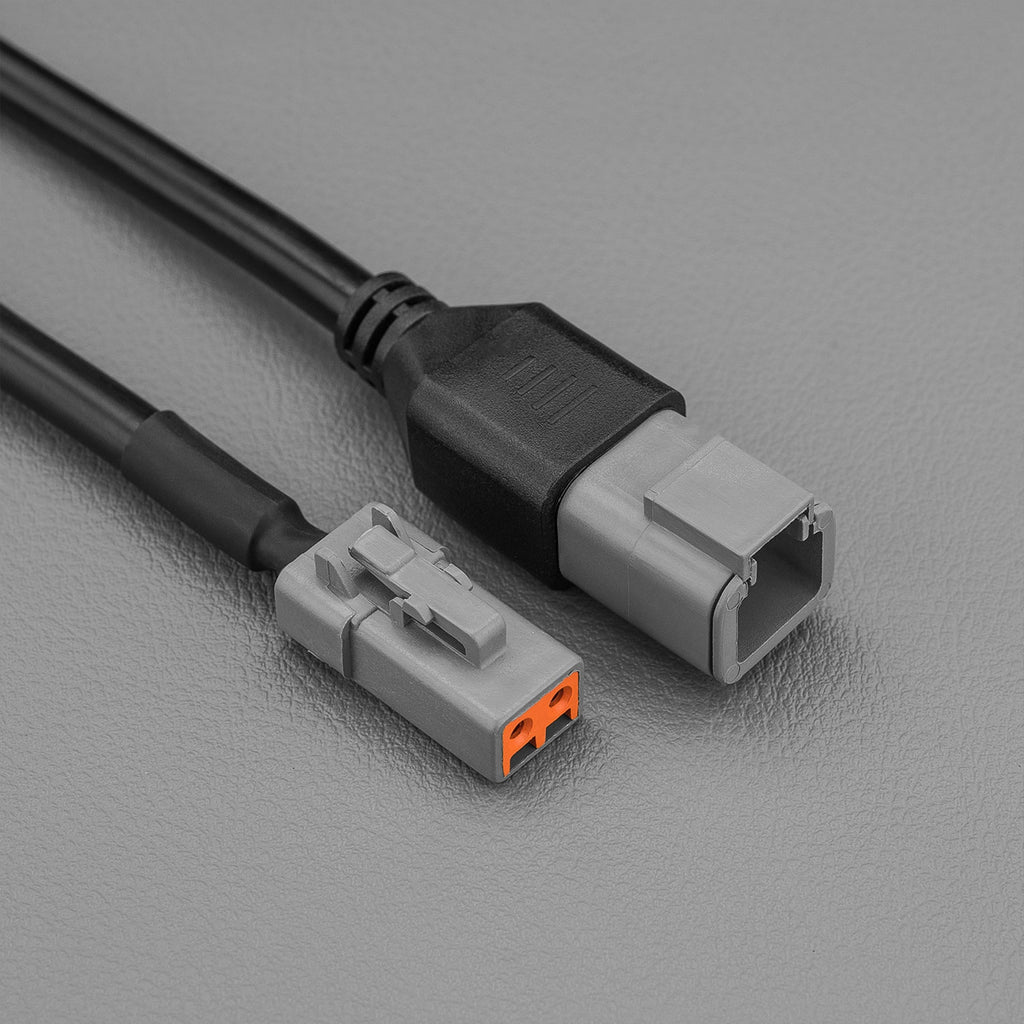

  • High Current Deutsch DTP-2 25A connectors

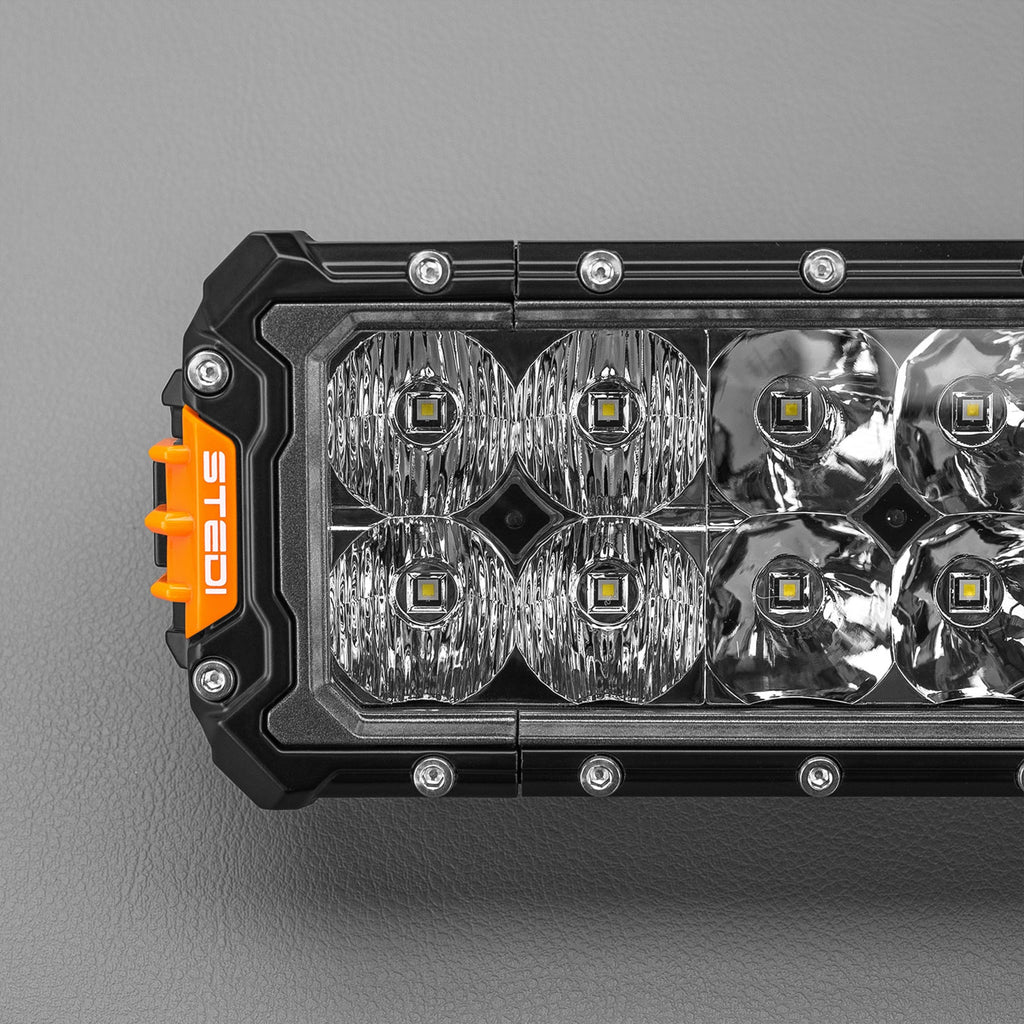

  • 32mm diameter parabolic reflectors

  • Spread and Spot beam pattern

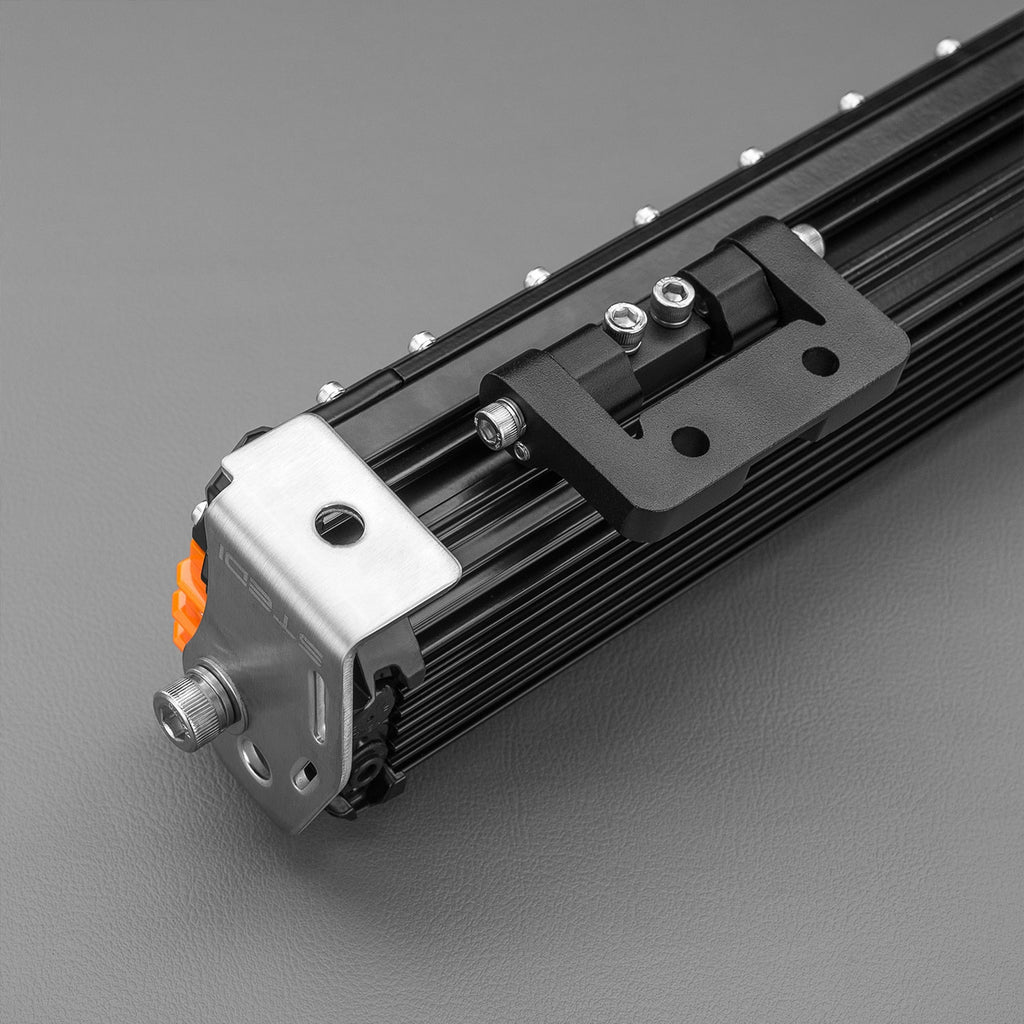

  • 4mm thick 304 stainless steel side brackets included.

  • Cast Alloy adjustable sliding bracket included.

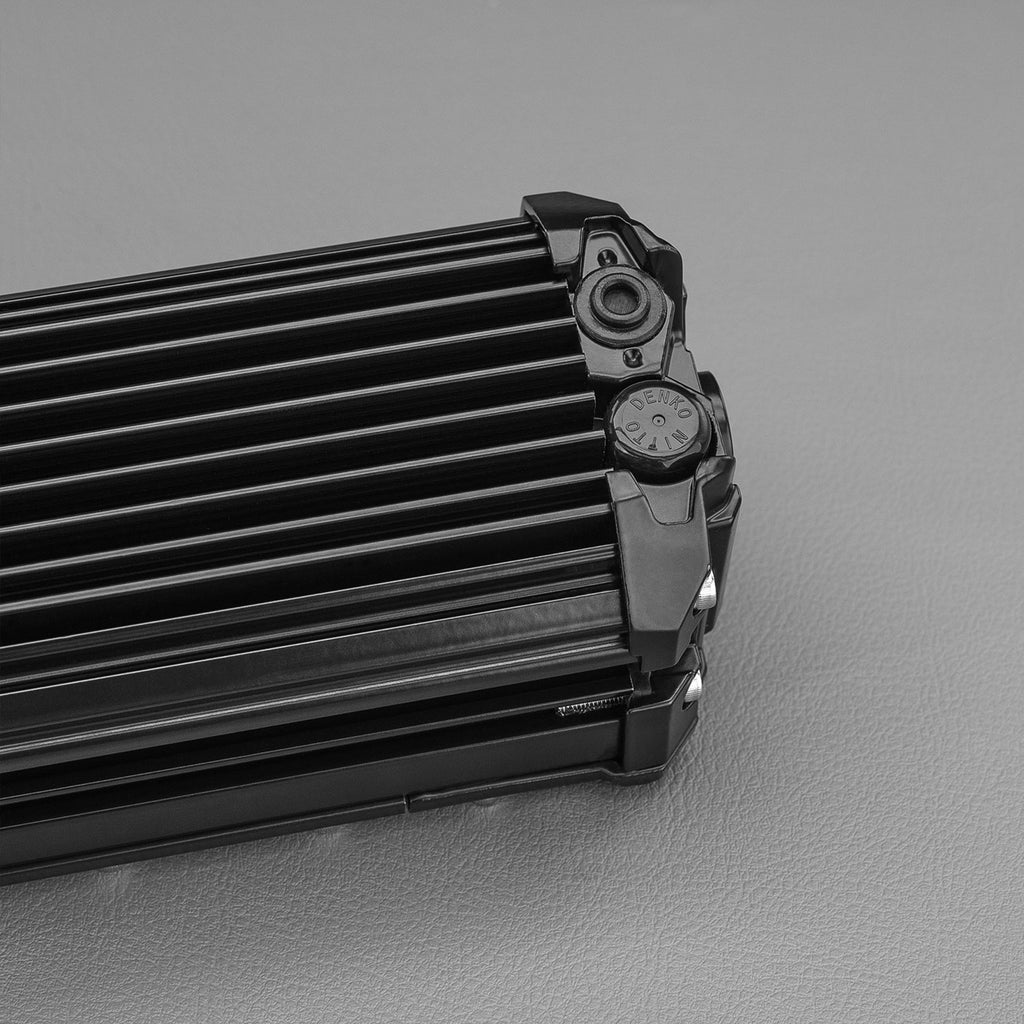

  • Nitto Denko™ Breather with PTFE microporous membrane

  • Very heavy-duty Smart Plug & Play ADR compliant Wiring Harness. (Switch, Dual Fuse, Dual Relay and HB3 and H4 Piggyback Adaptors) included

Registered Design: 201915829



TECH SPECS

LED Manufacturer CREE XPL Hi
LED COUNT 40
VOLTAGE 9V - 32V
CURRENT DRAW (AMPERES) 25.3a @13.6v
LENS MATERIAL OPTICAL GRADE, HARD COATED LEXAN
RAW LUMENS 43,800Lm
EFFECTIVE LUMENS 22,400Lm
PEAK INTENSITY (CANDELA) 656,100cd
HOUSING MATERIAL A360.0 Cast face plate, extruded Aluminum heat sink
LIFESPAN 50,000
FLOOD BEAM 50°
SPOT BEAM 9°
INGRESS PROTECTION IP68
OPERATING TEMP -40C ~ +150C
WEIGHT 4.960kg







WHAT'S INCLUDED

  • ST3303 PRO 40 LED 28.2 Inch Light Bar
  • Easy Fit High Beam Wiring Harness with H4 & HB3 adapters to High Beam
  • 3 x Lower Mounting Brackets with Stainless Steel Fasteners
  • 2 x 4mm thick Stainless Steel Side Brackets

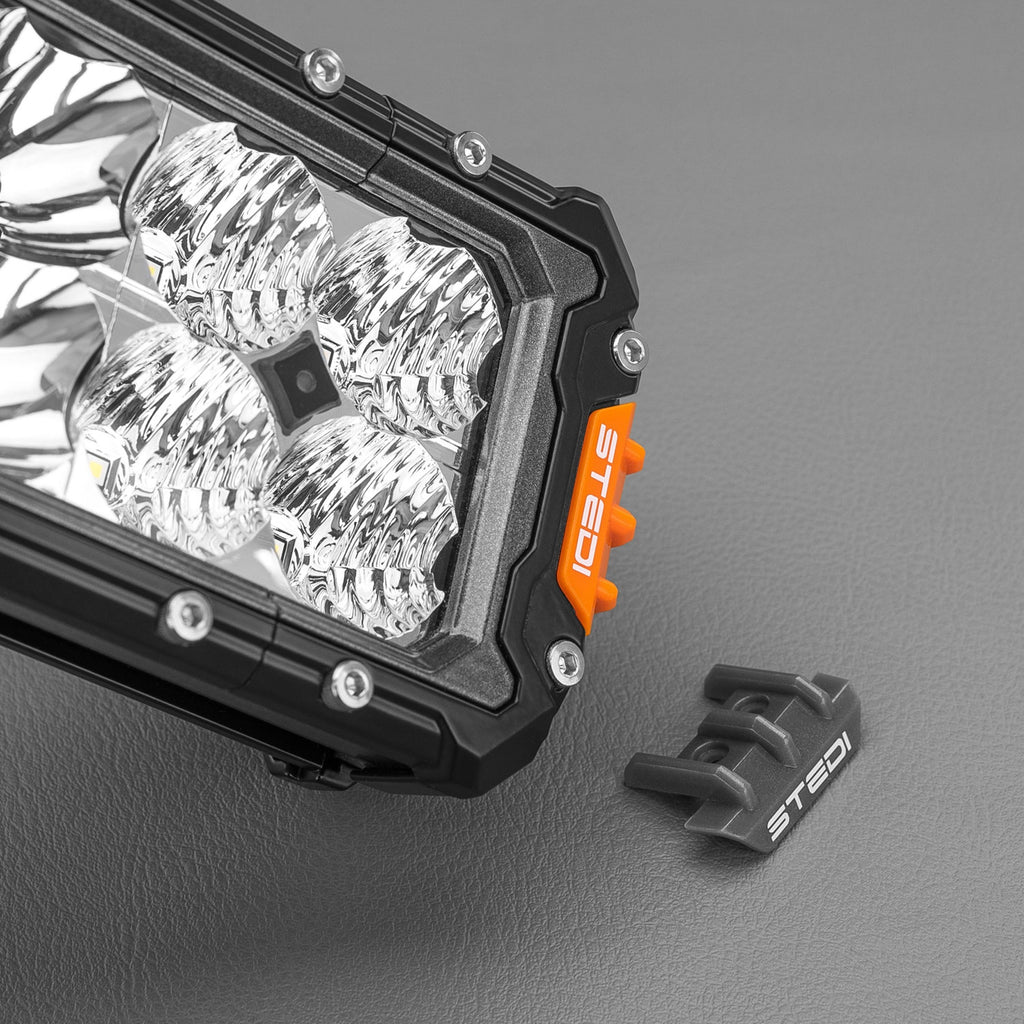

  • 2 x Orange End Caps
  • 2 x Grey End Caps





 LEGENDS IN THE WILD:
