A Master Of All.
Australian Design, Universal Fitment.

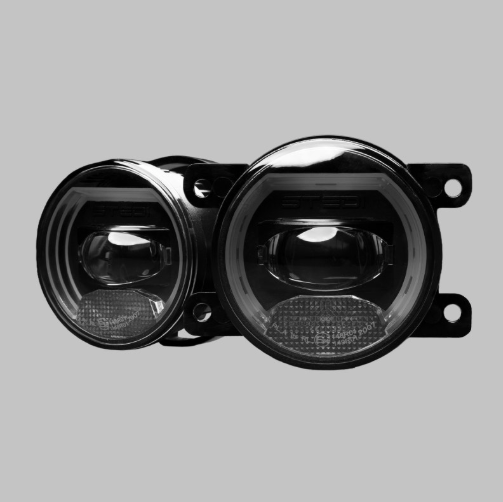

Developed in Melbourne, built to take on the world - the STEDI™ DRL Universal LED Fog Light features a universal light unit with type A, B and C bracket options to ensure a seamless OEM style fit to your vehicle. They are a direct fit that uses your vehicle’s factory mounting points in the front bumper — simply use the STEDI™ vehicle selector to ensure you’re selecting the compatible bracket for your vehicle.
ADR Compliant.
The nitty
gritty.
STEDI’s DRL LED Fog Lights with integrated indicator and parker light function are a high-end, premium solution for those looking for upgraded fog light performance in an OEM-like fit and finish.
The projector lens optic distributes a very flat and extremely wide pattern which is DOT and ECE standard compliant for road use.
Once installed we recommend that the beam is adjusted to ensure that it cuts off no higher than 50cm from the ground, with the car 25m away from a wall.
The STEDI™ Universal Fog Lights with DRL include mounting brackets that are compatible with all vehicles that feature Type A factory fog light housing.
Please Note:
Due to the assembly process, during initial operation a fogging may be visible. This is normal and should resolve within the first week as the light heats up and any moisture is released through the breather in the lights. If you have concerns regarding this, or if this persists for an extended time, please contact us for further assistance.
Tech Specs
| Length (mm) | 115 |
| Width (mm) | 93 |
| Height (mm) | 80.8 |
| Weight (kg) | 1.05 |
| LED | High Intensity W1860TM2 |
| Beam Pattern | Fog Beam |
| Tested Lumen (Single) | 730 |
| Tested Lumen (Pair) | 1460 |
| Ingress Protection | IP68 |
| Colour Temperature | 5000K |
| 1 LUX (Meters) | 104 |
| Candela | 11000 |
| Amp Draw | 1.35@13.2V |
| Power Draw | 17.8W@13.2V |
| Colour Temp (CCT) | 5000K |
| Voltage Compatibility | 10-36V |
| Operating Temperature | |
| Material/finishing | Cast Aluminium |
| Beam Pattern | DRL |
| Colour Temperature | White |
| Amp Draw | 1.3@13.2V |
| Voltage Compatibility | 10-36V |
| Beam Pattern | Position List (Parker) |
| Colour Temperature | White |
| Amp Draw | 0.17@13.2V |
| Voltage Compatibility | 10-36V |
| Beam Pattern | Indicator (Turn Signal) |
| Colour Temperature | Amber |
| Amp Draw | 1.3@13.2V |
| Voltage Compatibility | 10-36V |
What's Included
- 2 x Fog Lights with Bracket Assembled
- Mounting Hardware (M6 x 22mm Hex Head 316 Stainless Steel Screws x 8)
- 2 x H11 Connectors
