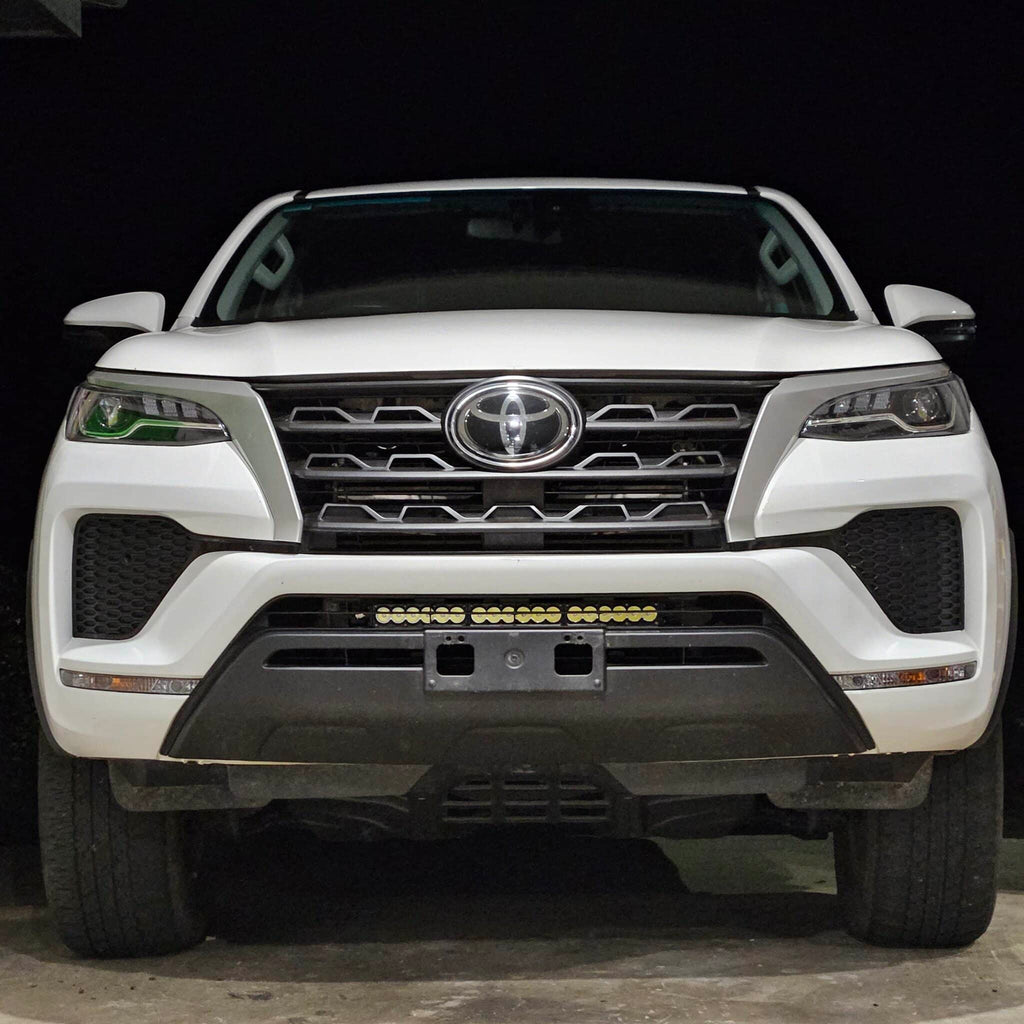

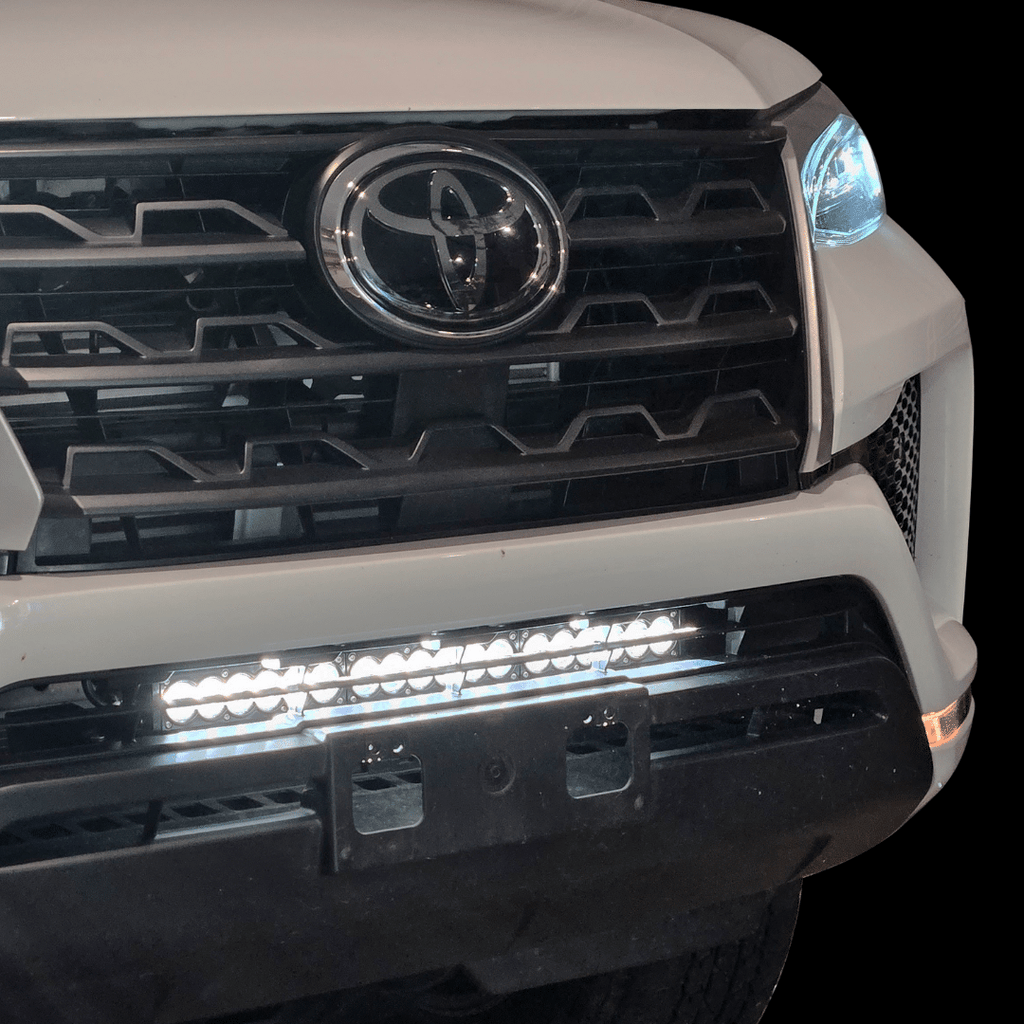

Boost the lighting power on your Toyota Fortuner with our Behind the Grille Light Bar kit. We’ve designed this kit specifically for easy installation with no need for a bull bar or cutting into your grille! The bracket system has been engineered to mount to existing points on the body and the welded studs make the installation process painless. We’ve road tested the set-up to ensure the there’s no movement or shaking when you’re out on rough or rocky roads. For added peace of mind the Raptor light bar comes with a 3-year warranty.
Each kit comes complete with:
- 1 x Raptor 125w 20.5-Inch LED Light Bar in 5700K
- 1x Wiring harness to suit
- 1x Purpose-built Toyota Fortuner behind-grille black powder-coated bracket kit
- 1x Toyota Fortuner high-beam plug & play wiring adaptor
- 1x OEM-Style switch to fit into factory switch blank
- 1x Mounting hardware kit (nuts, bolts, and brackets)
- Fitting and wiring instructions
Please be advised that these brackets have been designed to suit Ultra Vision Lighting products only. Our warranty policy does not cover integration or behind grille kits that are fitted with any other lighting brands.

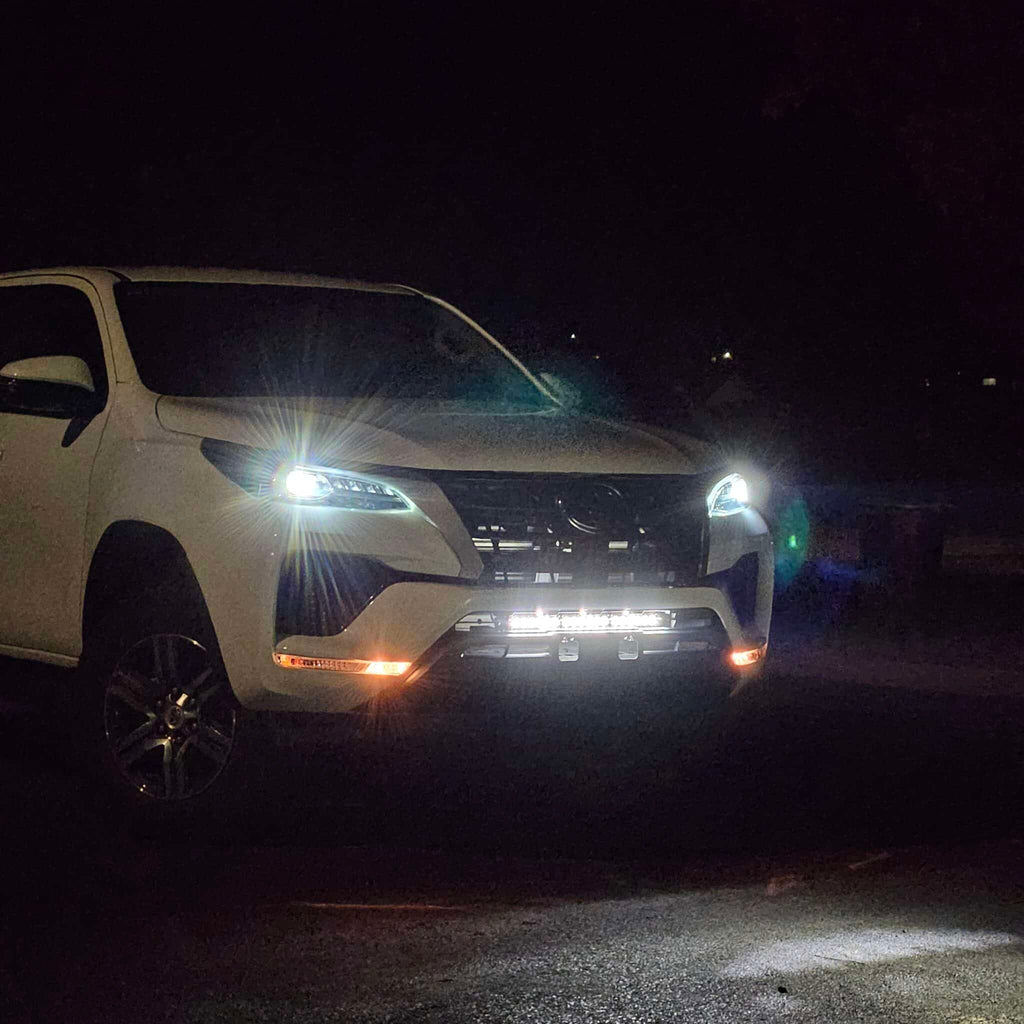

Beam Pattern

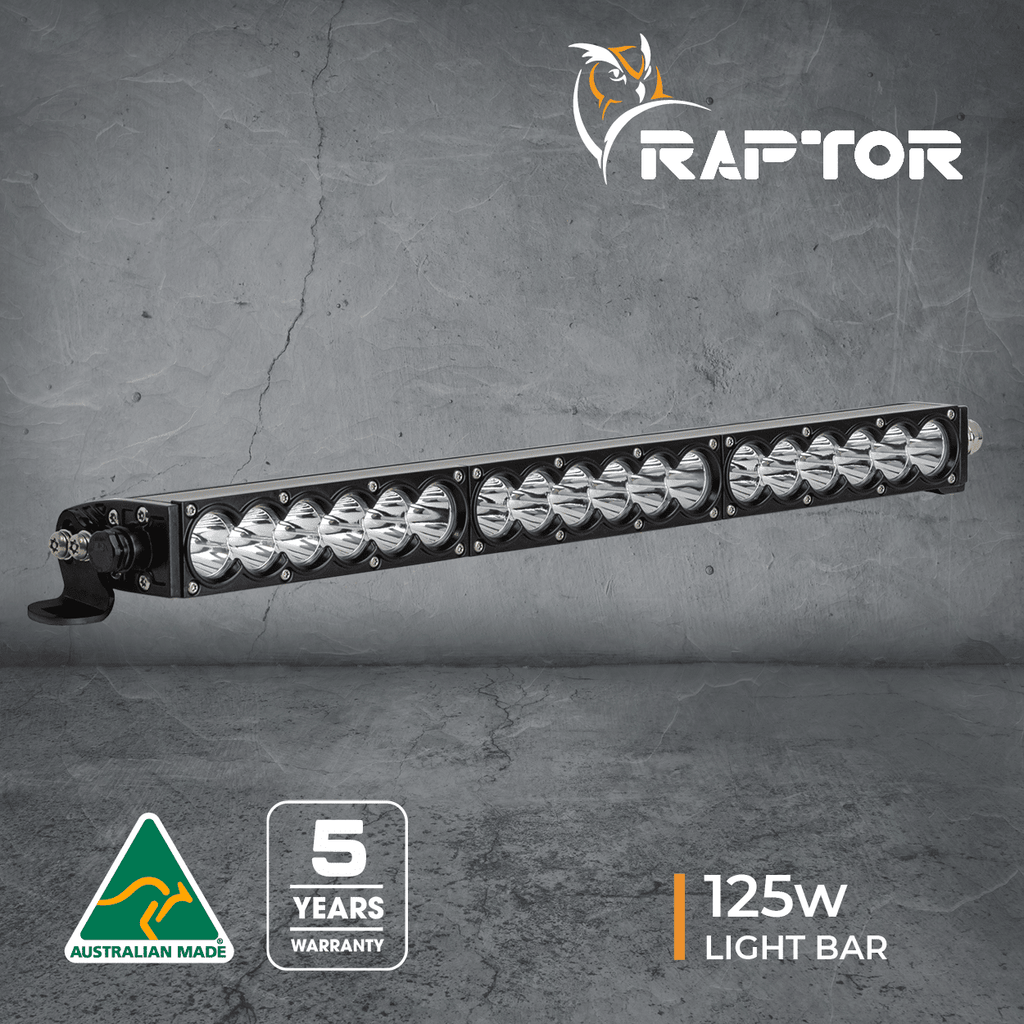

| 125W Raptor Light Bar Specifications | |
|---|---|
| Wattage | 125 Watts |
| Light Source | 18 High Power LEDs |
| Light Output – Raw | 13,957 Lumens |
| Light Output – Effective | 11,430 Lumens |
| Voltage | 9-36V |
| Current Draw | 10A @ 13.5V |
| Operating Temp. | -40 to 80 Deg C |
| Waterproof Rating | IP67 |
| Connector Type Plugs | 2 Pin Heavy Duty Deutsch |
| Housing | Aluminium |
| Lens Construction | Polycarbonate |
| Bracket | Stainless Steel powder coated black |
| Colour Temperature | 5700K |
| Lifespan | 50,000 Hours |
| Dimensions | 523 x 45 x 73mm |
| Net Weight | 1.7kg |
| Mounting Suitable | Side Mount Brackets |
| Warranty | 5 Years |
| Beam Type | Spot Beam |
