Version II out now! 100kg dynamic load rating per cross bar.

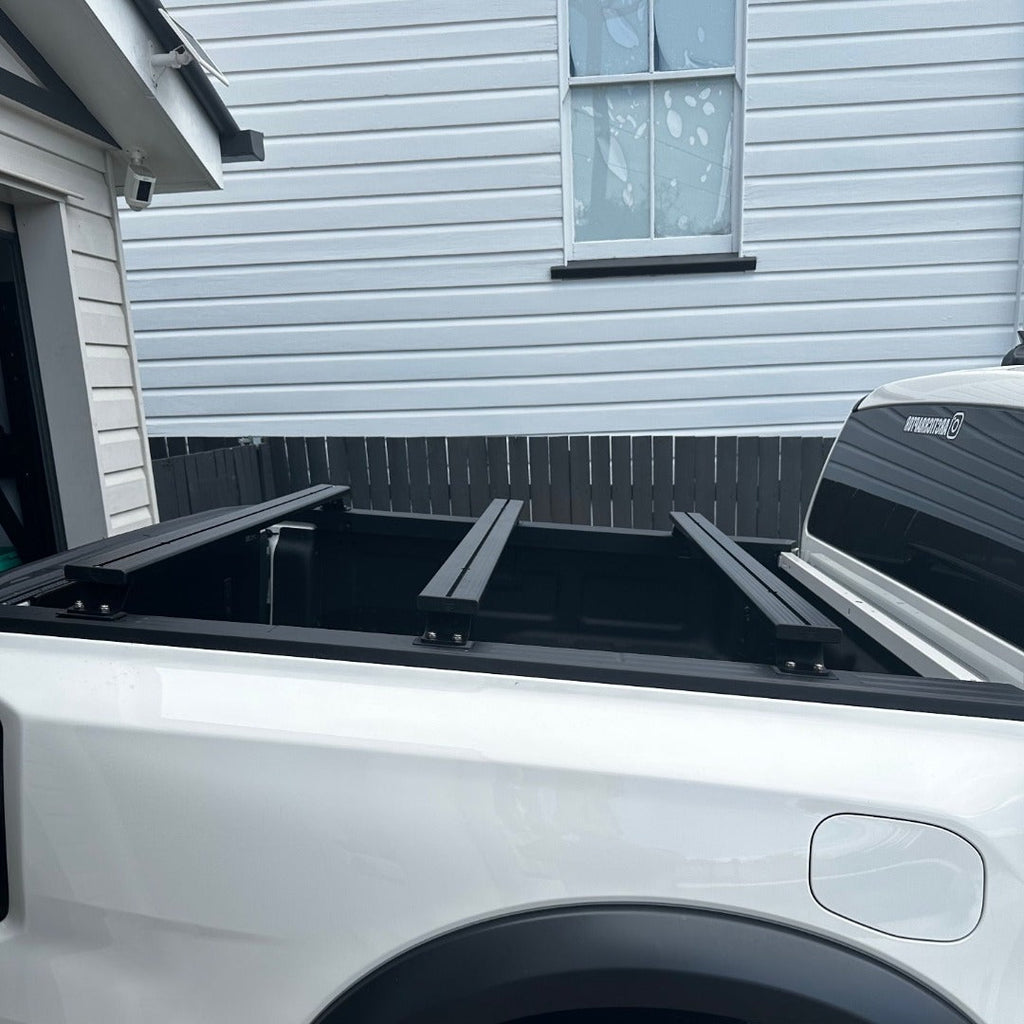

Cross Bar Kit to suit Next-Gen Ranger with open tub. Load rating = 200kg, spread across two cross bars, or J-brace* is required if the total load on two cross bars exceeds 40kg
Easy to install. No cutting or drilling. Can be removed easily if required, with no damage to the vehicle.
Contents (per bar):

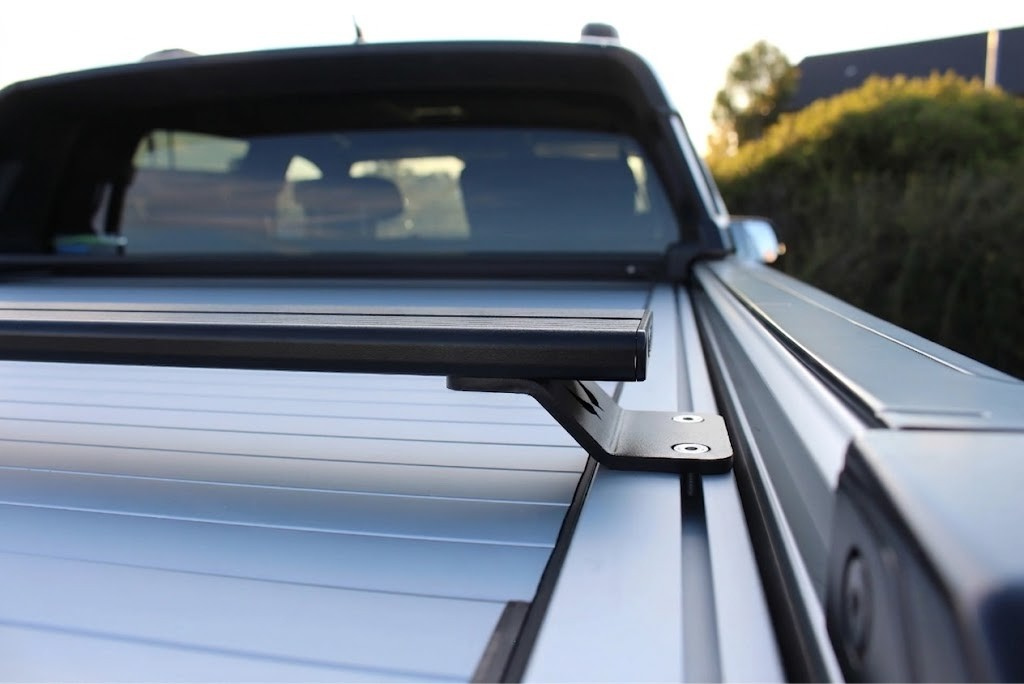

1 x Alloy cross bar with mounting channel
2 x Mounting Brackets
4 x Track Channel Nuts
1 x Stainless Steel Fixing Kit

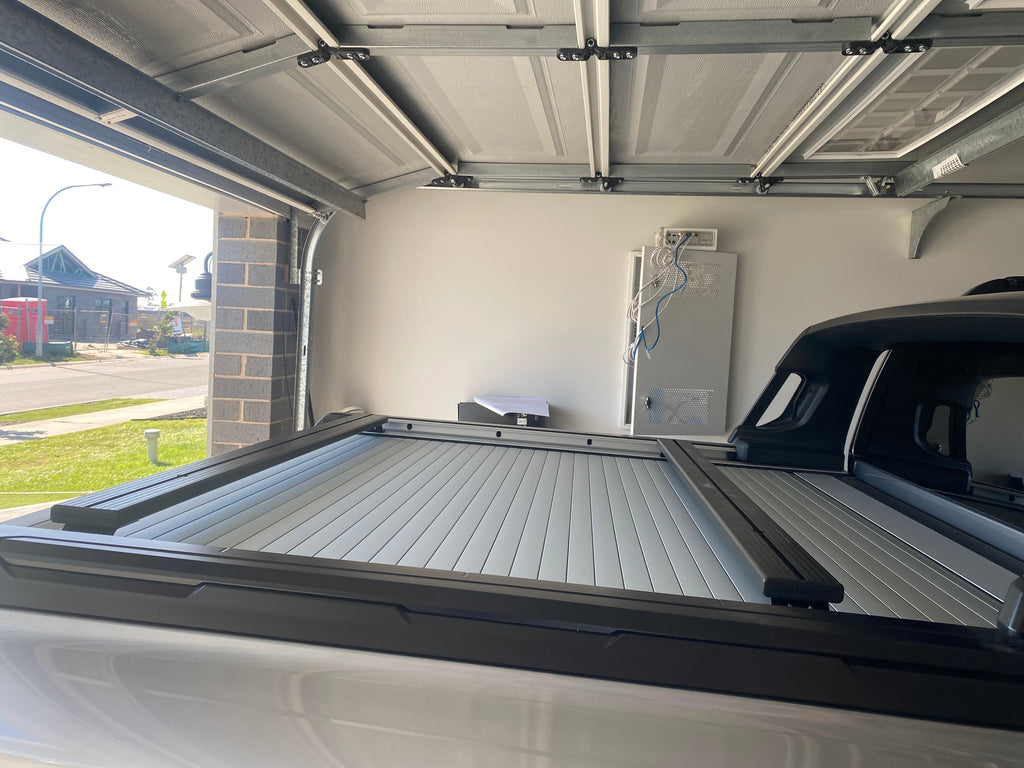

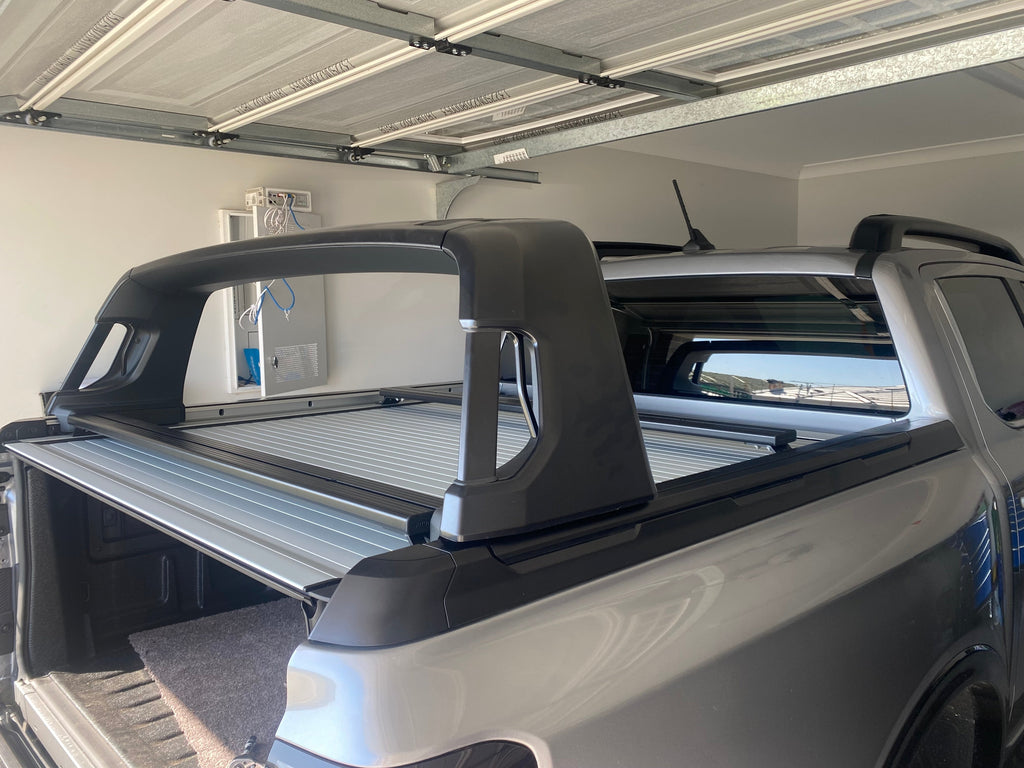

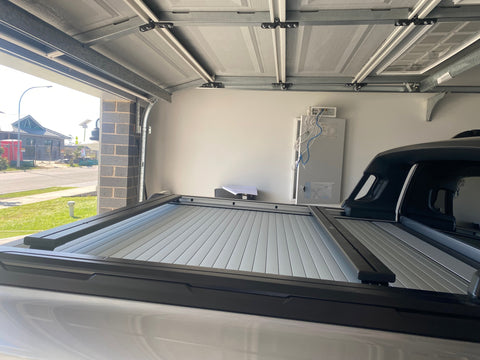

Compatible with factory sports bars - fits beneath the bar. Suits XL, XLS, XLT, Sport, Wildtrak & Raptor. Requires access to the load points in the tub capping, or Wildtrak roller shutter. May not work with tonneau covers.
Cross Bar is compatible with sliding sailplane system on Next-Gen Rangers, as it allows the sailplane to slide past the bars.
Load Rating:
| Cross Bars | Dynamic Load Rating (on or offroad) | Static Load Rating |
| Roller Shutter - 2 Bars | 40kg* | 60kg |
| Roller Shutter - 3 Bars | 38kg* | 90kg |
| Tub Mounted - 2 Bars | 200kg** | 300kg |
| Tub Mounted - 3 Bars | 300kg** | 450kg |
*Official Ford Rating for factory roller shutter
**J-Brace required for anything over 40kg
What is a "J-Brace"
To provide additional support for accessories mounted to the Tub, a J-Brace is utilized. This component is necessary for any 2022 Ranger carrying 45kg+ loads mounted to the sides of the tub, as per Ford's mandate. The J-Brace kits are required for the vehicle's tub warranty to be valid. The J-Brace can be purchased as DIY kit here
