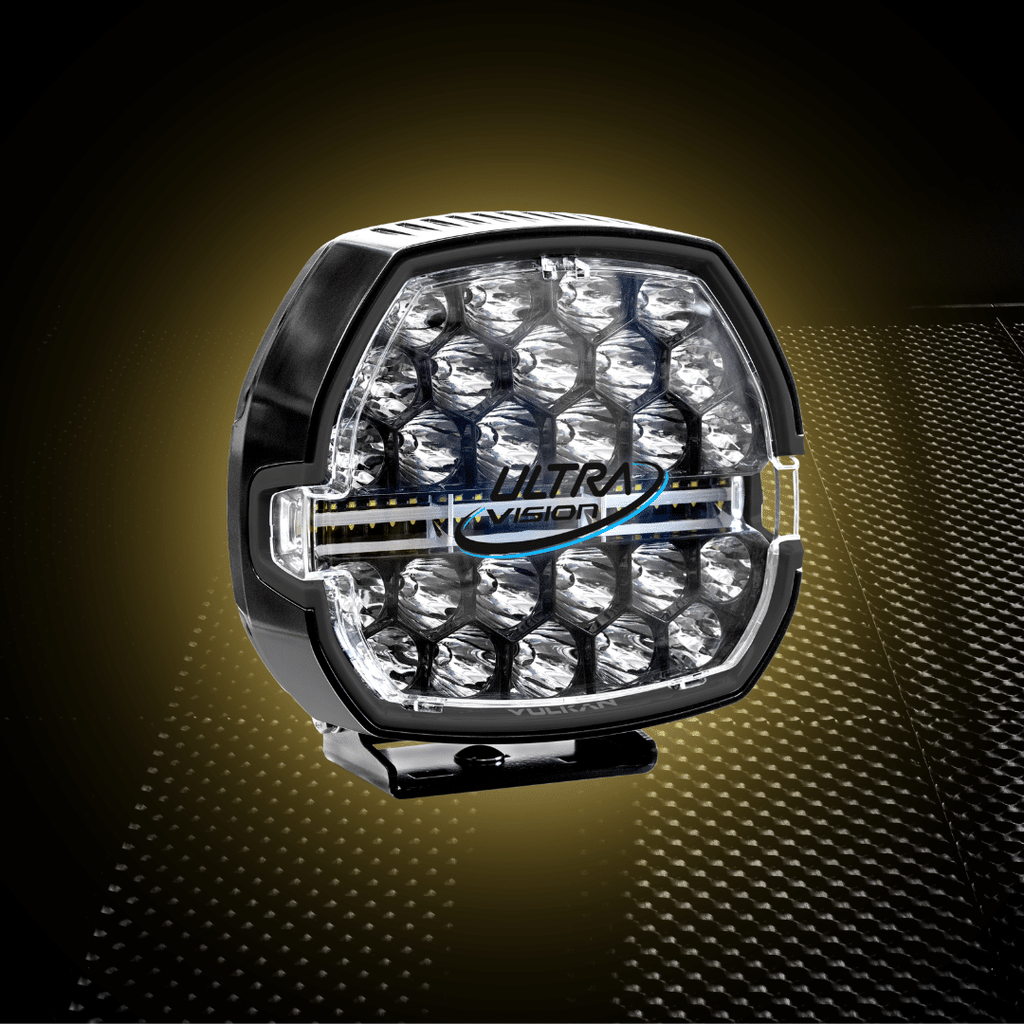

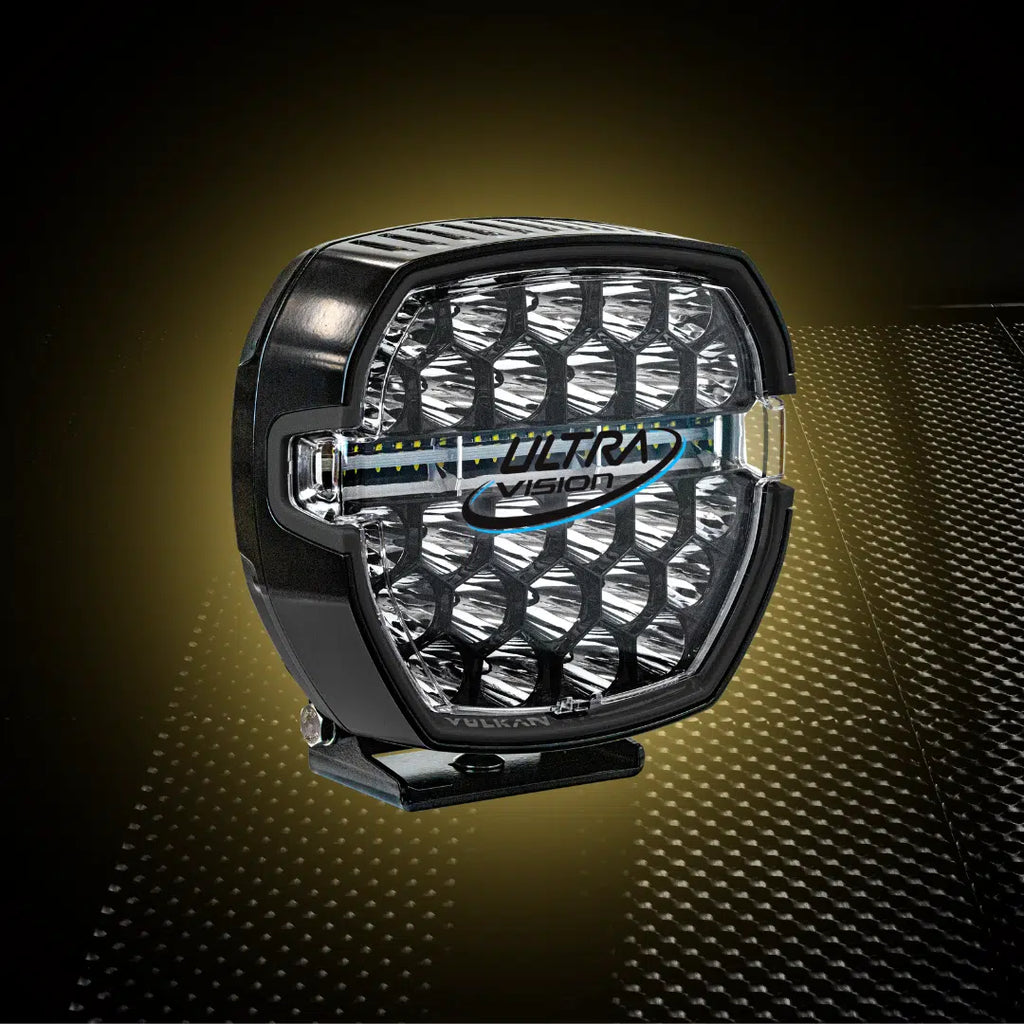

We are pushing the boundaries of what’s possible with the VULKAN LED driving light from Ultra Vision Lighting. With a striking look, the VULKAN features our class leading Contrl® Optics and a newly designed Widr® Optic teamed with a cut out design to maximise beam width. Combine these with 44 Osram LEDs, and you've got some serious performance. Plus, the beam is adjustable letting you customise your lights output to your environment. It’s the only light in the market that lets you:
Set your beam distance from 90m to 1735m of light
Dial in the beam width from 90m to 235m
So you can get ultimate power, with total control. To find out more wiring and technical information, please refer to the instructions here.
How the VULKAN came to life
Take a look at this video where we explain the process that went into the conception and design of the VULKAN.
Product Specification
SPECIFICATIONS
VULKAN
Wattage
95w - 175w (per lamp)
Light Source
44 x OSRAM LED’s (per lamp)
Light Output - Raw
12,352 - 17,193 Lumens (per pair)
Light Output - Effective
6,422 - 10,644 Lumens (per pair)
Voltage
9-36V
Current Draw
13A @ 13.5V (per pair)
Operating Temperature
-40°C to +75°C
Waterproof rating
IP68
Connector Type Plugs
6 Pin Heavy Duty Deutsch Plug
Housing
Die-Cast Alloy
Outer Lens Construction
Hard Coat PC
Bracket
4mm Stainless Steel
Colour Temperature
4500K or 5700K
Lifespan
50,000 Hours

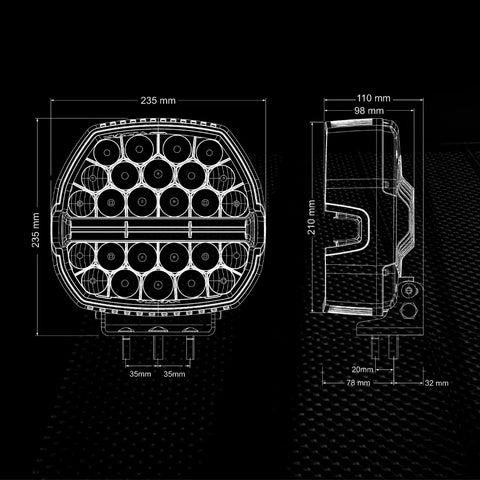

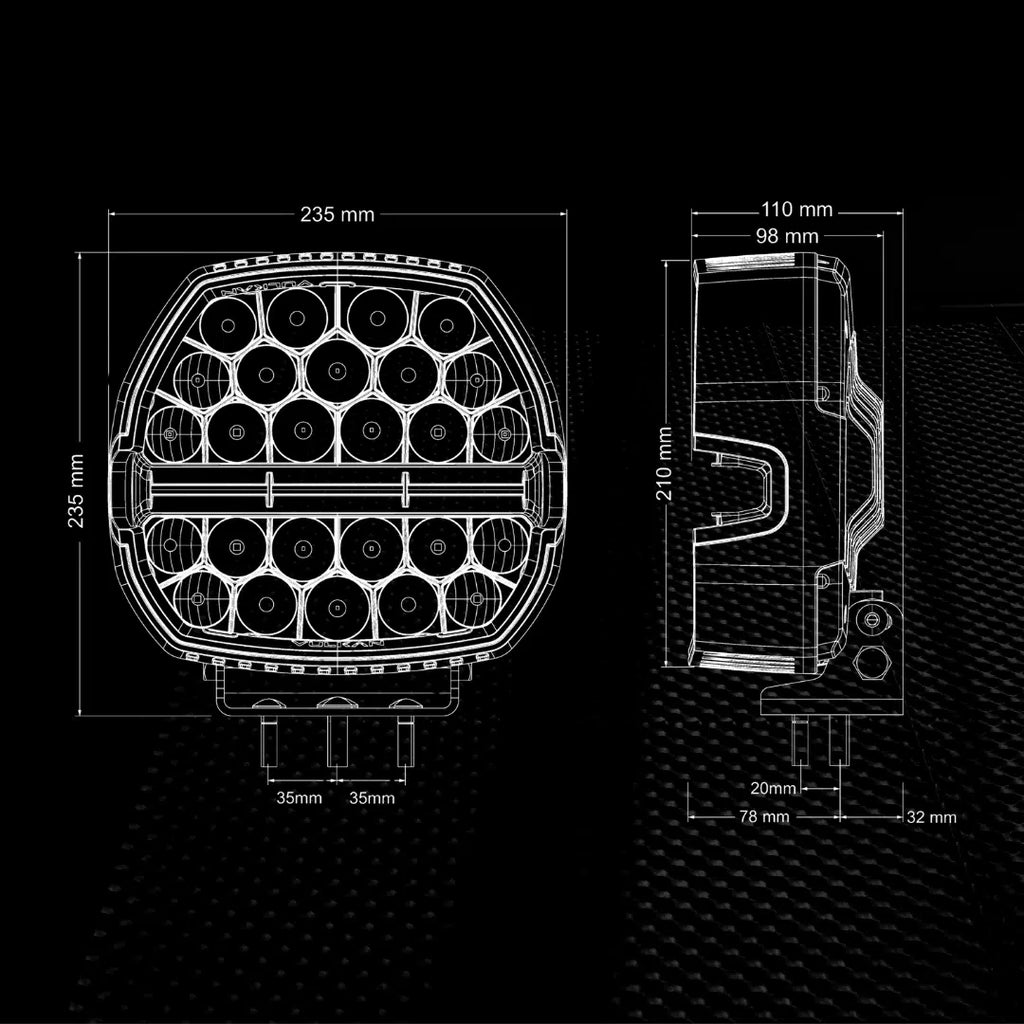

Diameter
235mm
Net Weight
3.2kg (per lamp)
Mounting Suitable
Base mount
Warranty
5 Years
Wiring Harness & Switch Included
Yes
Brand:
Ultra Vision Lighting
EMC Rating
CISPR 25 Class 3
Manufacturer:
Ultra Vision Lighting
PART NUMBERS
5700K (Single lamp)
VUL9DL5/SGL
4500K (Single lamp)
VUL9DL4/SGL
5700K (Pair)
VUL9DL5/PR
4500K (Pair)
VUL9DL4/PR
VULKAN SWITCH The VULKAN Switch is a rotary encoder control unit designed to operate the VULKAN adaptable beam driving light system. This switch allows you to adjust the beam pattern from wide flood illumination to concentrated spot lighting, providing precise control over your auxiliary lighting. The switch features an illuminated ring with colour - coded feedback to indicate the current operating status and beam configuration. Key features:
Rotary encoder with tactile detent feedback for precise adjustment
Push-to-toggle function for switching the Vulkan lights on and off
Illuminated Logo Ring with colour coded status indication
Can bus connectivity for reliable communication with the Vulkan Lighting System
Memory function that recalls the previous beam/status setting when high beam is activated
